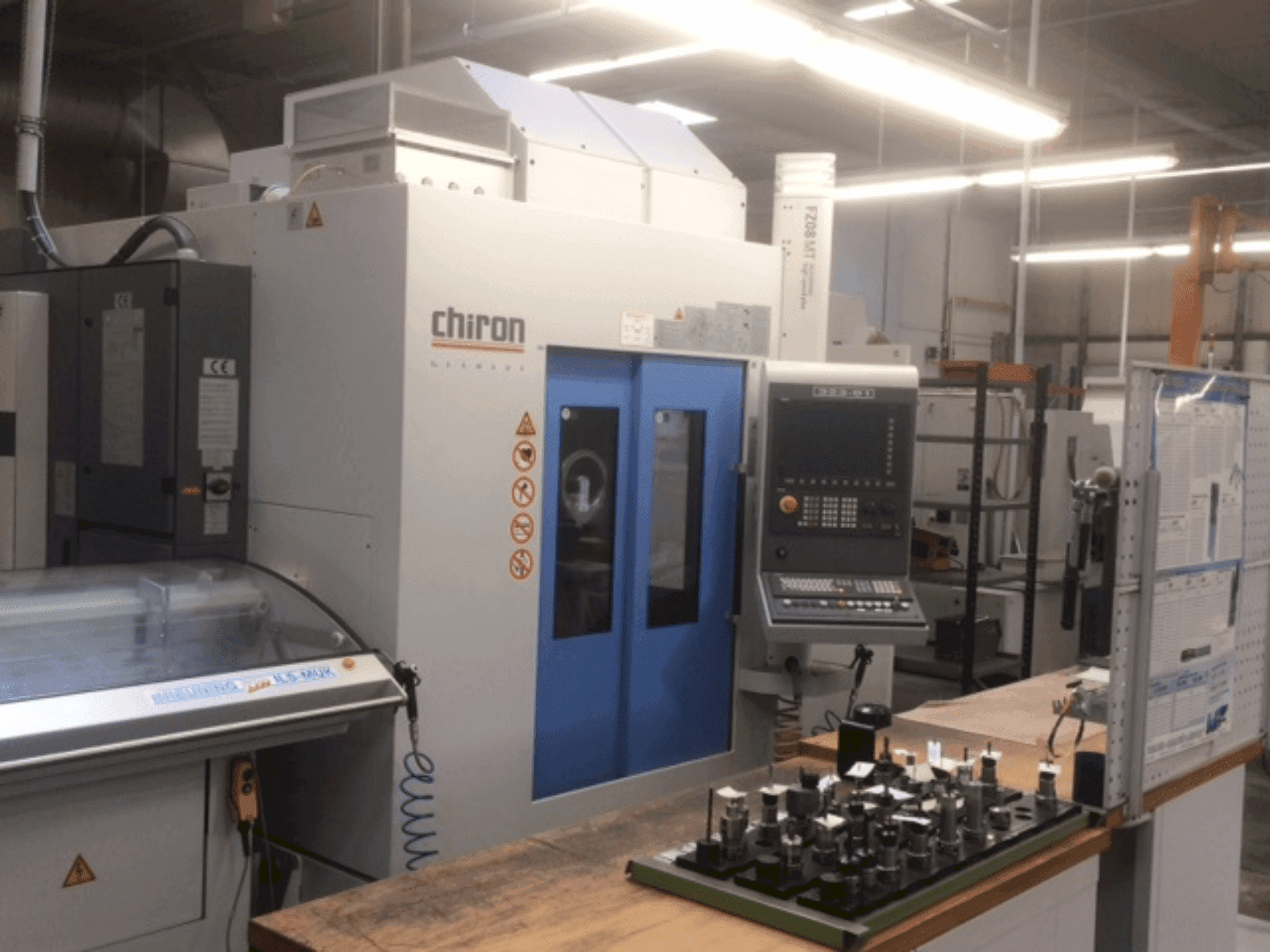

CHIRON FZ08 MT

Photo Gallery

CHIRON - FZ08 MTDE-MIL-CHI-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ08 MT For Sale | gindumac.com

Show in original language

This 5-axis CHIRON FZ08 MT turn-mill centre was manufactured in 2011. Consider the opportunity to buy this CHIRON FZ08 MT turn-mill centre. Contact us for more information.

Overview

brand: CHIRON
year: 2011
MODEL: FZ08 MT
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ08 MT

Control Unit

Control Brand: SIEMENS
Control Model: 840D solution line

Movement

Number of Axes: 5
X-axis Travel: 450 mm
Y-axis Travel: 270 mm
Z-axis Travel: 310 mm

Technical Specification

Spindle Power: 7 kW
Spindle Speed: 15000 RPM

Additional Information

Additional equipment

Chip conveyor
Oil mist extraction
Signal lamp
Paper band filter
Spindle oil cooler

Machine Benefits

Technical Machine Benefits

Torque: 15 nm
Nc swivel head: swivel range: -20° / +115°; rapid traverse speed: 60 rpm; resolution: 0. 0001°
Turner with centering clamping device czsh 80-a on turret
Stroke: 2 mm per jaw
Digital main drive with water-cooled motor spindle
Fixture flushing with spray nozzles
Collet chuck with integrated hydraulic release unit
Tool station organization and siemens tool life monitoring
Undervoltage relay and button for machine light deactivation

Extra Information

Injection Unit Coolant system High-pressure coolant 70 bar Internal coolant supply Clamping Force Hydraulic system Machine-Specific Data Increased Speed Range for Water-Cooled Motor Spindle: Power: 7 kW at 100% duty cycle, 9 kW at 25% duty cycle; Speed: up to 30000 rpm; Torque: 11 Nm Media Cooling System KF 150 / FKA 500 Tank capacity: 500 l Low-pressure pump: 80 l/min at 3.0 bar to 100 l/min at 1.8 bar High-pressure pump: 20 l/min at 30 bar Machine History Warranty: 4000 hours Extra Information Rotating Viewing Window Pneumatic drive installed on the left front door

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
