DAEWOO - Puma 230SCIT-TUR-DAE-2001-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Daewoo Puma 230SC Lathe

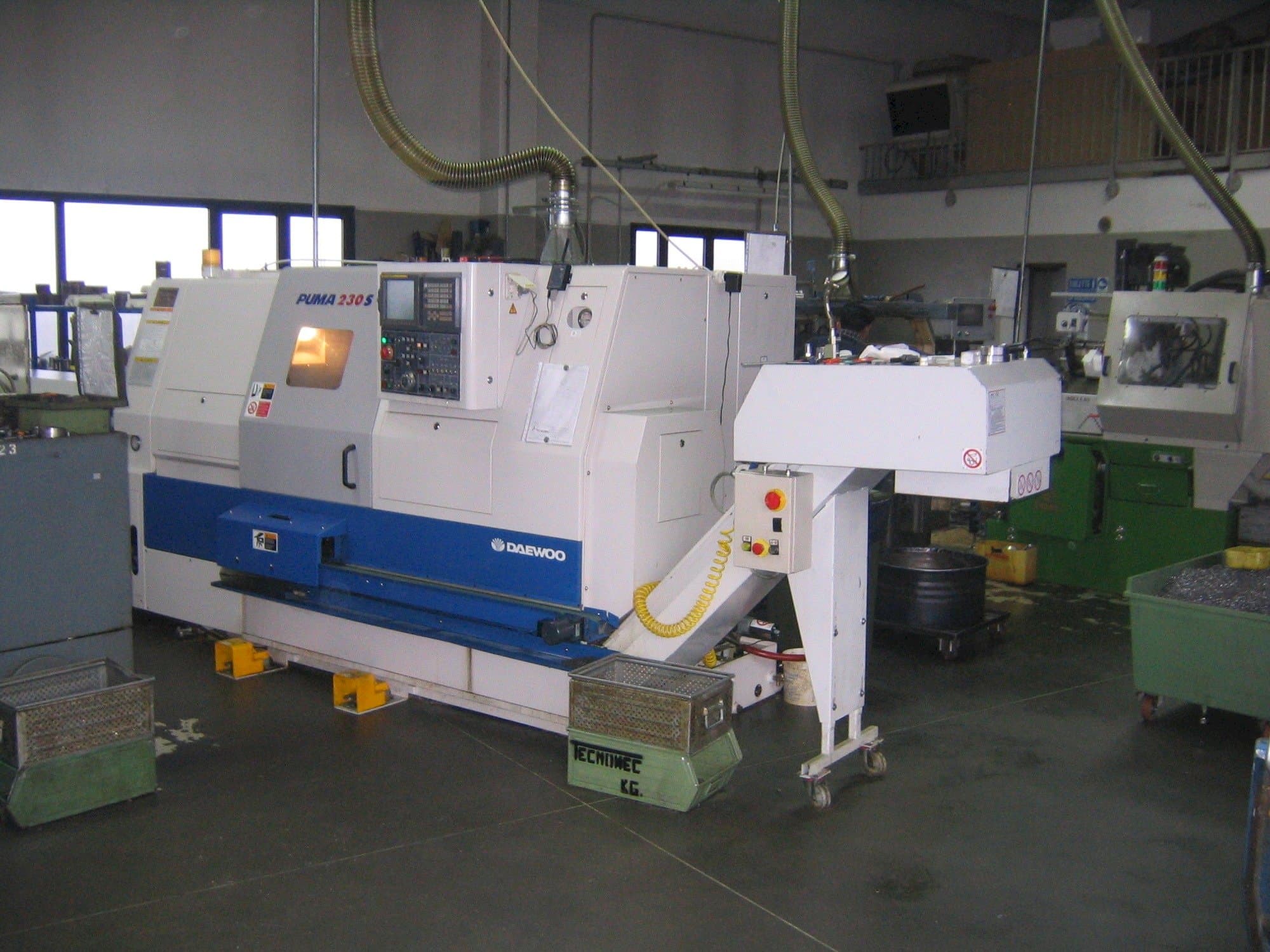

This Daewoo Puma 230SC Lathe was manufactured in the year 2001 in Korea. It is equipped with a FANUC Series 18iT control unit and has 4 axis. The machine has SPINDLE TURNS 1 of 3500 rpm and SPINDLE TURNS 2 of 6000 rpm, includes many original tool holders and tool holders, is in good condition, and is well maintained.
Overview
- brand: DAEWOO
- year: 2001
- MODEL: Puma 230SC
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DAEWOO Puma 230SC
Control Unit
- Control Brand: FANUC
- Control Model: Series 18iT
Dimensions
- Machine Weight: 4240 kg
Movement
- Number of Axes: 4
- X-axis Travel: 205 mm
- Z-axis Travel: 580 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Spindle original never used with 3 tender jaws.
- Spindle bearings 1 and 2 replaced
- Twisting on x, z axes redone, crankcase replaced
- Many original tool holders and tool holders, some never used.
- Machine in production and fully functional.
- Bar loader with 2 series of guides
- Overhauled air system in 2021 and oil pump guide replaced in 2018, fully functional.
- N. Spindle turns 1: 3500 rpm
- N. Spindle turns 2: 6000 rpm
Technical Machine Benefits
- Bar passage diameter : 75 mm
- Main spindle and diameter sub spindle: 42 mm
- Spindle 1 with ba60 toolholder (many included) bellegrandi asa8
- Reduction diameter :42 mm
- Reduction for double cone collets (some included) up to diameter 75 mm
- Counter spindle with jaws and soft jaws
- (many included, collet holder bellegrandi from d. 42
- Numerous ba42 pliers.
- B axis guides from year 2017, spindle belts and spindle fan 1 replaced in 10/2022.
- Lns sprint 2: 80mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
