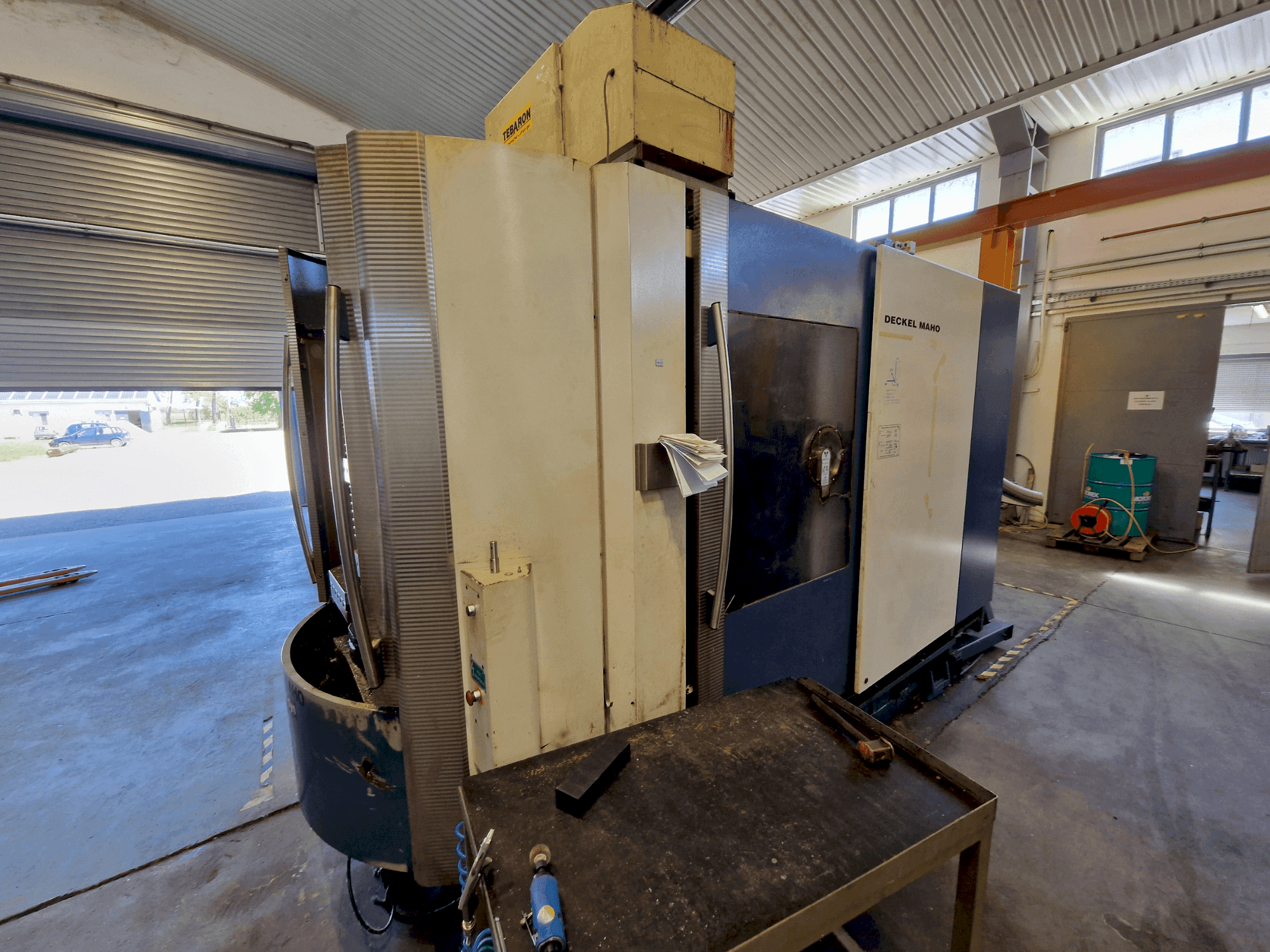

This 4-axis DECKEL MAHO DMC 60 H Hy Din horizontal machining center was manufactured in 2001. It features a robust direct drive motor with speeds up to 15,000 rpm and a torque of up to 191 Nm. The machine includes a versatile tool magazine with capacities ranging from 40 to 180 tools and a maximum tool weight of 12 kg. Ideal for complex machining tasks, the DECKEL MAHO DMC 60 H Hy Din machine we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2001
- MODEL: DMC 60 H Hy Din
- production hours: 28815
- application type: Milling
- Location: Hungary
- machine type: Horizontal Machining Centre
Technical Information - DECKEL MAHO DMC 60 H Hy Din
Dimensions
- Table Length: 400 mm
- Table Load: 350 kg
- Table Width: 500 mm
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Power: 13 kW
- Spindle Speed: 15000 RPM
Additional Information
Additional equipment
- Multiple tool magazine options
- Advanced tool handling and balancing features
- High-precision measurement system
- Efficient internal coolant supply (optional)
Machine Benefits
Qualitative Machine Benefits
- Tool balancing: meets din iso 1940 standards for reduced vibration and increased precision.
- Coolant system: optional internal coolant setup enhances tool performance and longevity.
- Accurate measurement: high-resolution systems ensure precise machining results.
Technical Machine Benefits
- Torque: 124 nm (s1), 191 nm (s6)
- Speed max. : 25. 7 rpm
- Pallet clamping force: 80,000 n
- Tilting moment max. : 8000 nm
- Tangential moment (clamped max. ): 6000 nm
- Tangential moment (released max. ): 2600 nm
- Number of pallets: 2
- Guide slot (number x width): 1 x 14h7 mm
- Precision movement: infinitely programmable feed speeds ensure precise control.
- Tool handling versatility: various tool magazine configurations cater to extensive tooling needs.
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
