DMG - CTX ALPHA 300GB-TUR-DMG-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG CTX ALPHA 300 Lathe machine

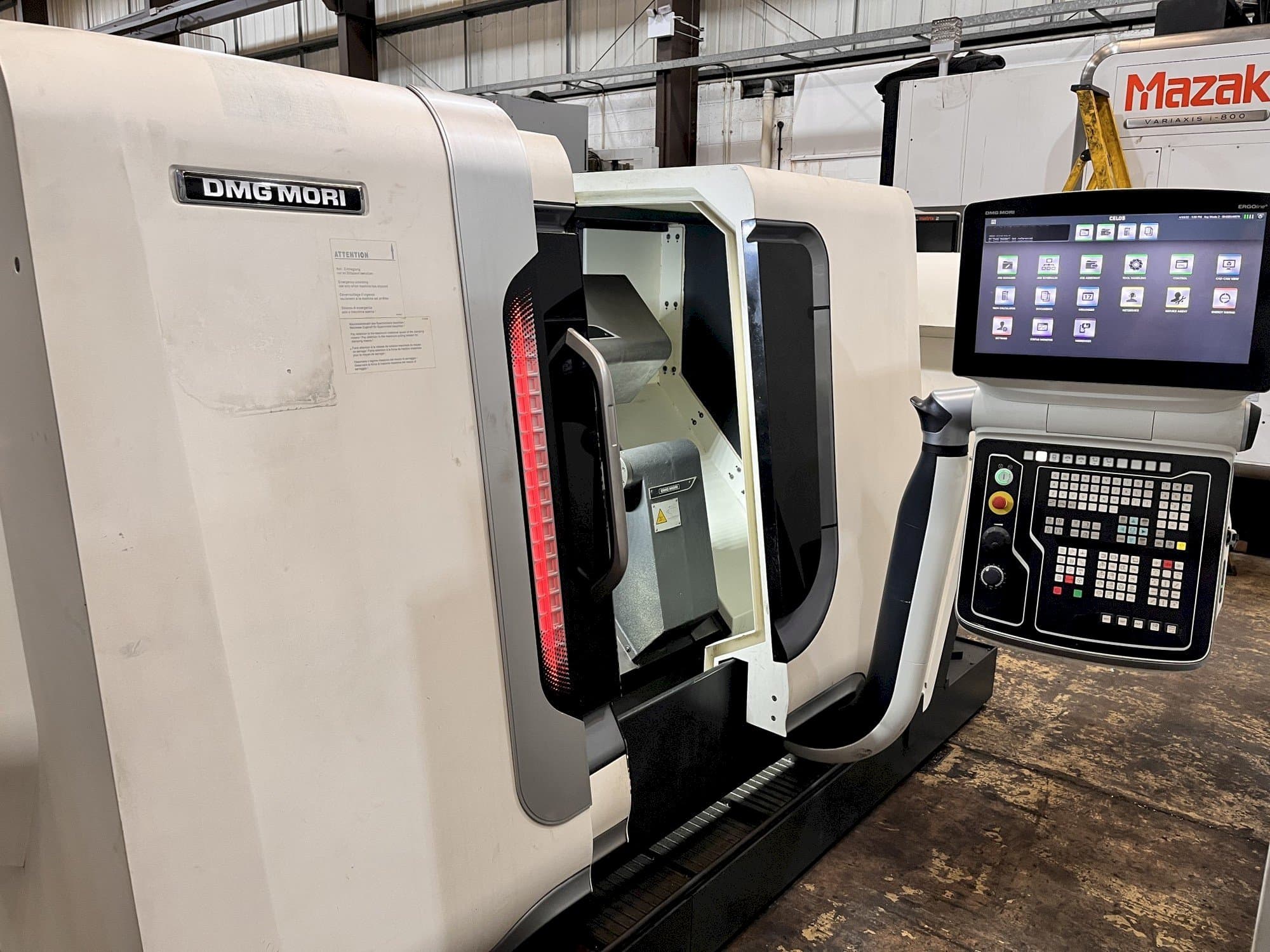

This DMG CTX ALPHA 300 Lathe machine was built in Germany in 2017. It has 9570 working hours of which 1268 are cutting time. This 4 axis machine is operated through a Siemens 840D ERGOLINE control unit. It works with a spindle speed up to 6000 rpm. Includes a tool holder VDI 30. Machine in very good condition and low hours.
Overview
- brand: DMG
- year: 2017
- MODEL: CTX ALPHA 300
- production hours: 9570
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - DMG CTX ALPHA 300
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D ERGOLINE
Dimensions
- Machine Depth: 1720 mm
- Machine Height: 1787 mm
- Machine Weight: 3800 kg
Movement
- Number of Axes: 4
- X-axis Travel: 210 mm
- Y-axis Travel: 40 mm
- Z-axis Travel: 335 mm
Technical Specification
- Number of Tools: 12
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition, low hours
- Chip conveyor
Technical Machine Benefits
- Maximum cutting diameter 240mm
- Maximum cutting length 520mm
- Bar capacity 52mm
- Chuck size 215mm
- Milling motor power 5. 4kw
- Milling rpm 5000rpm
- Tailstock taper mt #4, travel 370mm
- Rapid feedrates xyz: 30 x 22. 5 x 30m/minute
- Spindle motor power 14kw
- C and y axis, coolant, tooling
Extra Information
4 axis lathe wit C axis, Y axis and milling function
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
