SPINNER - TC800 110MCYAT-TUR-SPI-2016-00001

Name: SPINNER TC800 110MCY
Brand: SPINNER
SKU: AT-TUR-SPI-2016-00001
Price: 52000 EUR
Availability: InStock

52,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TC800 110MCY For Sale | gindumac.com

Show in original language

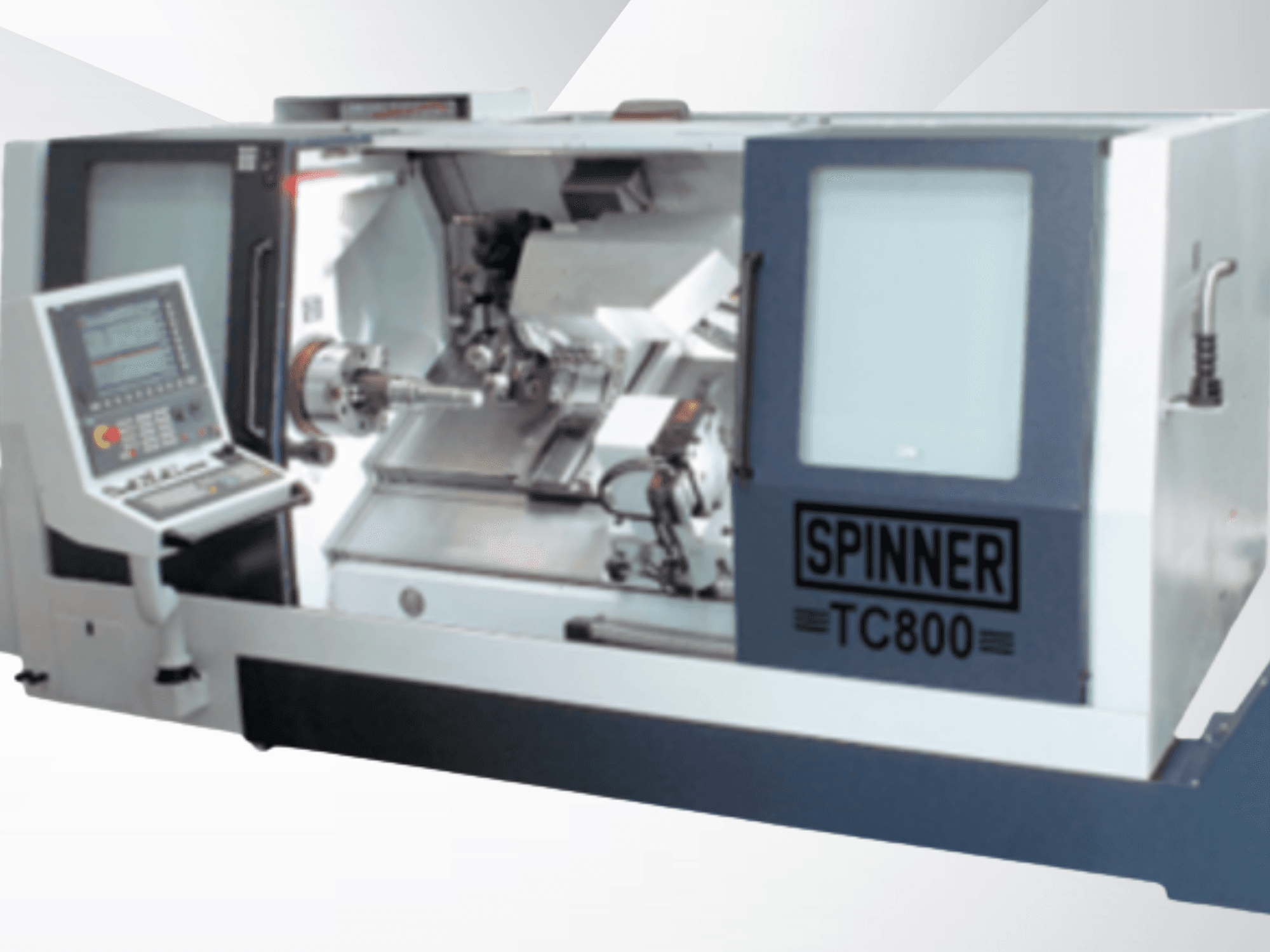

This 4-axis SPINNER TC800 110MCY was manufactured in 2016. It features a Siemens control system, operating at a voltage of 400 V and a frequency of 50/60 Hz. The machine has a full-load current of 63 A and a nominal current of 80 A. If you are looking to get high-quality turn-milling capabilities, consider the SPINNER TC800 110MCY machine we have for sale. Contact us for further details.

Overview

brand: SPINNER
year: 2016
MODEL: TC800 110MCY
production hours: 19460
application type: Turning
Location: Austria
machine type: Turn-Mill Centre

Technical Information - SPINNER TC800 110MCY

Movement

Number of Axes: 4
X-axis Travel: 360 mm
Z-axis Travel: 900 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes

Additional Information

- Voltage: 3/PE ~400 V

- Frequency: 50/60 Hz

- Full-Load Current (Ib): 63 A

- Nominal Current (In): 80 A

- Spindle bore: 110 mm (ideal for heavy-duty bar machining)

- Main spindle taper: A11

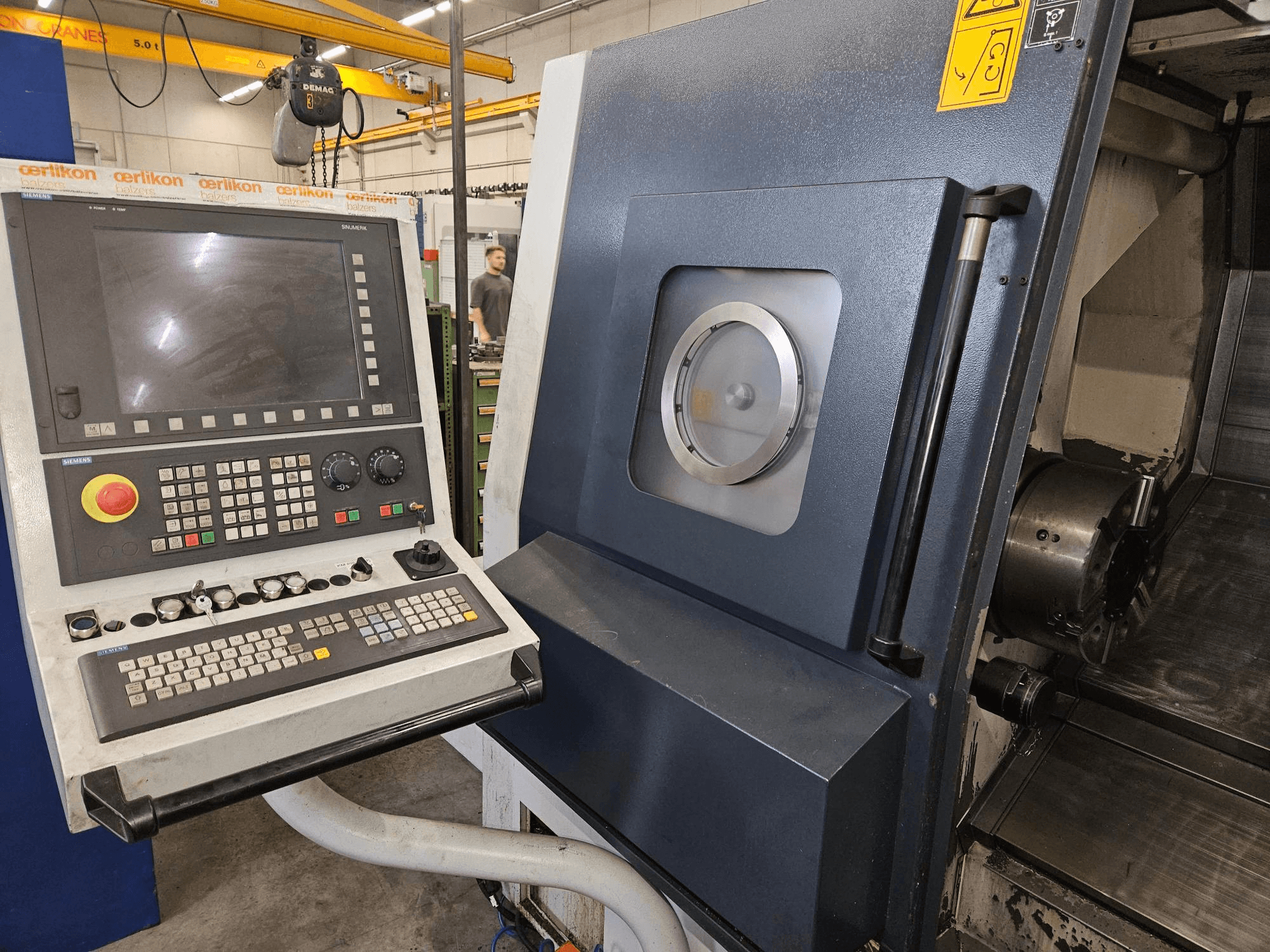

- Control system: Siemens 840D

- Turret & Milling (MC): Tool turret with powered tools & full-fledged C-axis

- Y-axis: Mechanical Y-axis (travel: 120 mm / ±60 mm)

- Tailstock: Fitted (MK4 quill)

- Chip management: Chip conveyor fitted

- Tool measurement: Fitted (manual measuring arm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
