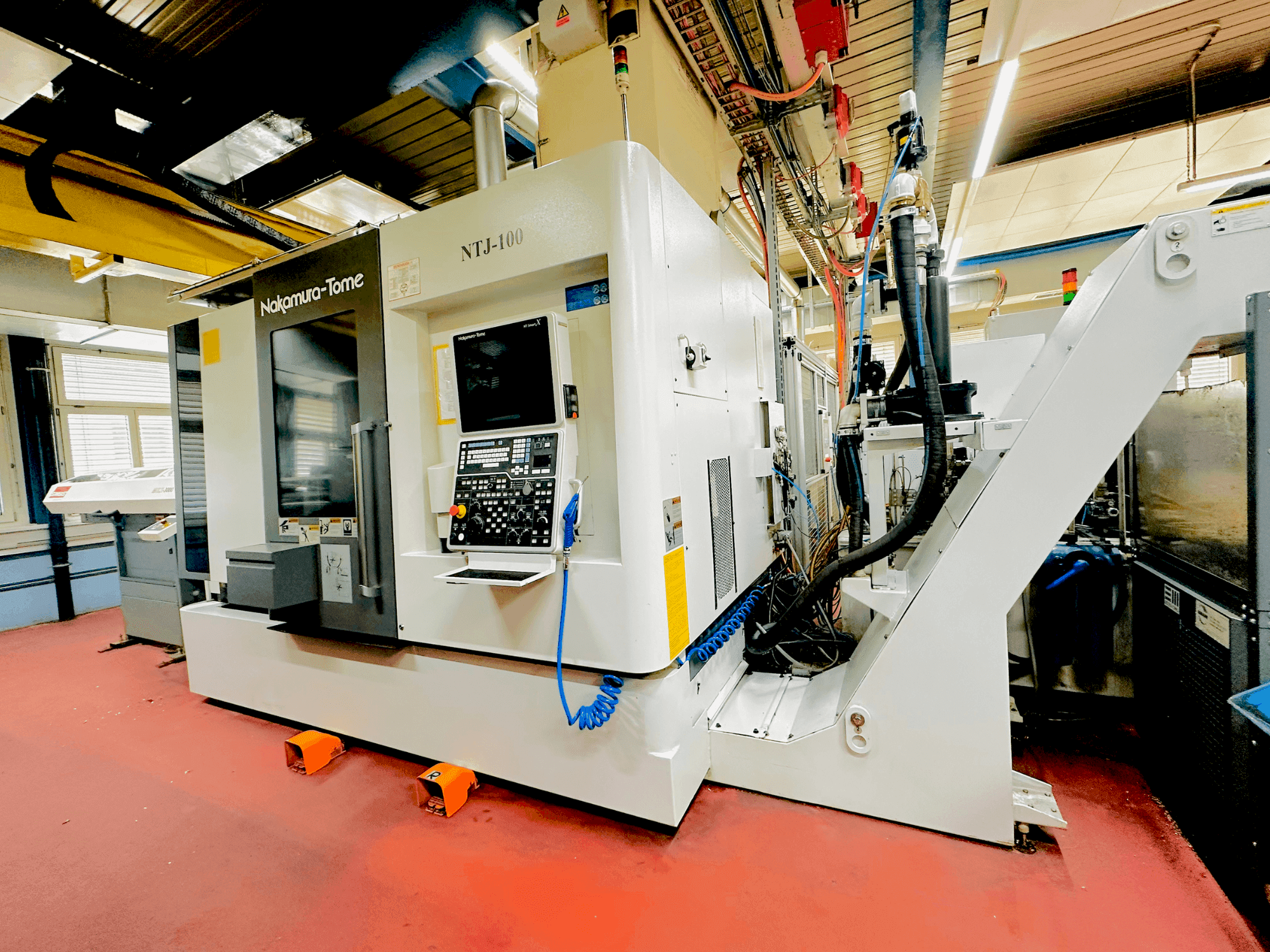

This 9-axis Nakamura NTJ100 turn-mill centre was manufactured in 2017, featuring a bar capacity up to 65 mm and dual spindles with maximum speeds of 4500 and 5000 rpm respectively. It includes a Samsys bar loader, Absolent extraction system, and a variety of automated features such as coolant supply through the spindle, parts catcher, and automatic tool setting devices. Consider the opportunity to buy this Nakamura NTJ100 turn-mill centre. Contact us for more information about this machine.
Overview
- brand: NAKAMURA
- year: 2017
- MODEL: NTJ100
- production hours: 24140
- application type: Turning
- Location: Switzerland
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - NAKAMURA NTJ100
Control Unit
- Control Brand: FANUC
- Control Model: 31i-NT-SmartX
Dimensions
- Machine Weight: 10000 kg
Movement
- Number of Axes: 9
Additional Information
Increased bar capacity: 65 mm left, 51 mm right
Workpiece measurement: han-bei measuring probe for automatic workpiece measurement (infrared or radio type) for left and right spindle
Left + right, with auto swing-in type and 2x 4 measuring directions for quick and precise tool setting via the nc function.
Operating time 43399h
Coolant system: coolant through spindle (CTS); coolant float switch for machine stop on low level; additional coolant flushing via the spindle (left and right)
Bar capacity: Ø 51 mm
Parts catcher type A with collecting tray, max. Ø 65 x 150 mm, 3.0 kg, spindle side, left, with plastic lining
Chuck blow-out device for left spindle
Automatic power shut-off
Preparation for oil mist extraction system with connection nozzle Ø 150 mm
Robot/automation prep: pneumatic flap for robot handling on top of the door, opening approx. 400 x 400 mm
Handwheel for manual tracking of defined contours
Data server with 1 GB ATA memory card
Interface for KNOLL system
Triple signal light
Samsys bar loader with a 1.5 m bar loading capacity has the following dimensions: Length: 225 cm + 43 cm intermediate guide Width: 120 cm (including loading ramp and control panel) Height: 145 cm or 180 cm with the flap open
The machine was mainly used to process aluminium (95%).
Additional equipment
Samsys bar loader, including extension
Absolent extraction system
Slat-belt chip conveyor with interface, time-interval control, and alarm evaluation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
