- DMG MORI NHX6300 horizontal machining center

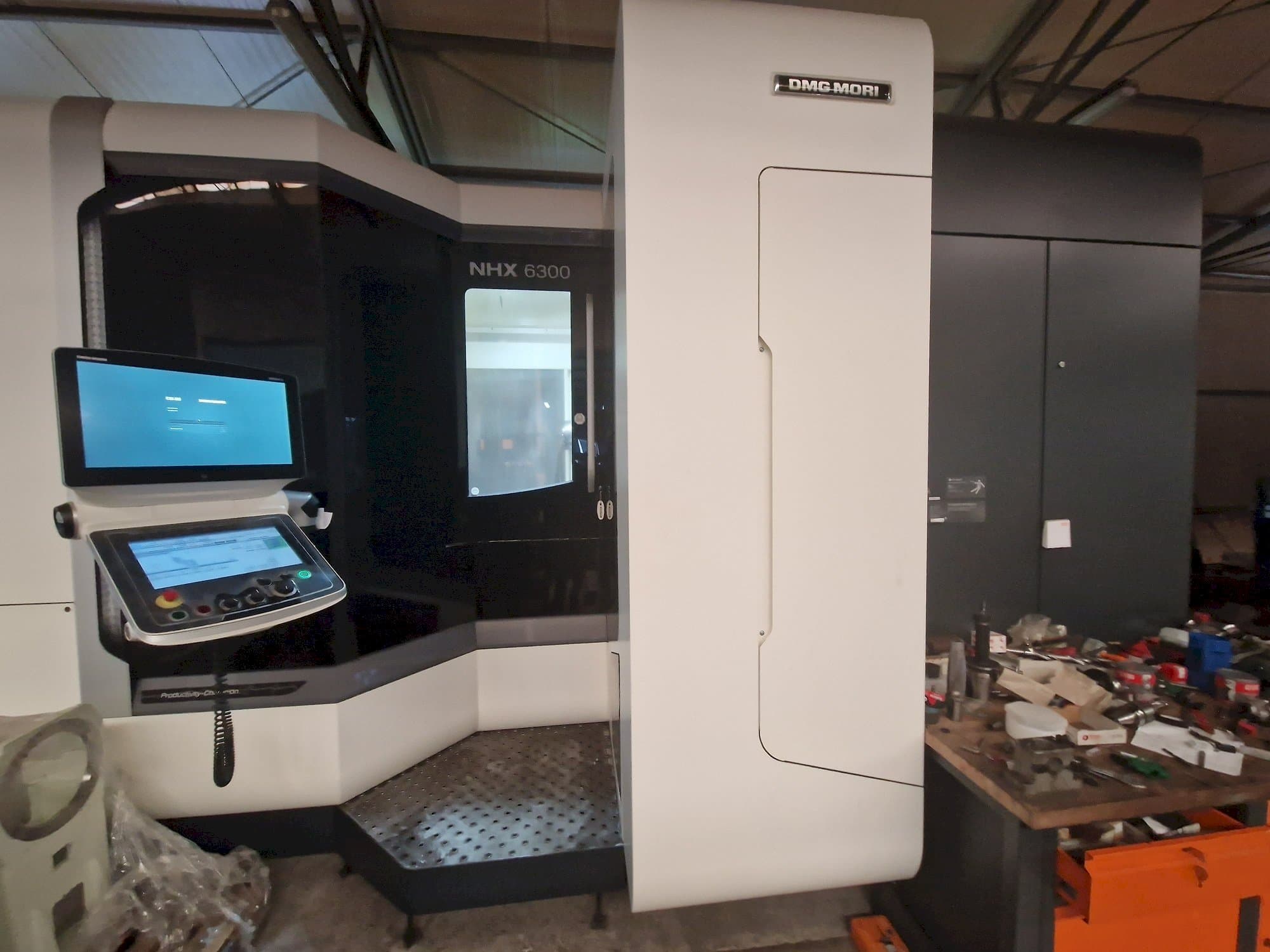

This DMG MORI NHX6300 horizontal machining center was made in the year 2018 in Japan and has 429 hours. It is equipped with a DMG MORI ERGOline, CELOS with FANUC control unit, and has 4 axis. The machine has a spindle speed of 8000 rpm.
Overview
- brand: DMG MORI
- year: 2018
- MODEL: NHX6300
- production hours: 429
- application type: Milling
- Location: Poland
- machine type: Horizontal Machining Centre
- availability: Sold
Technical Information - DMG MORI NHX6300
General Data
- Measurements width: 3930 mm
- Measurements depth: 5823 mm
- Measurements height: 3228 mm
- Machine weight: 18750 kg
Control Unit
- Model: ERGOline
Main drive
- Spindle speed range: 8000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 1050 mm
- Y-AXIS Movement: 900 mm
- Z-AXIS Movement: 1030 mm
Table
- Outer length: 630 mm
- Outer width: 630 mm
- Table load: 1500 kg
Tools
- Max weight: 30 kg
- Max tool length: 630 mm
Additional Information
- Technical Machine Benefits:
- - 4 cnc axes (x,y,z and b for rotation of the table)
- - Max workpiece dimensions: - dim. 1050 mm - height: 1300 mm - weight: 1500 kg
- - Two pallets and rotary pallet exchanger, pallet work surface each: 630 x 630 mm
- - Pallet changing time: 20 s
- - Tool storage capacity: 60 tools (ring type)
- - Tool change time from chip-to-chip: 4. 8 s
- Qualitative Machine Benefits:
- - Machine in very good condition, full documentation available, ready for tests
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
