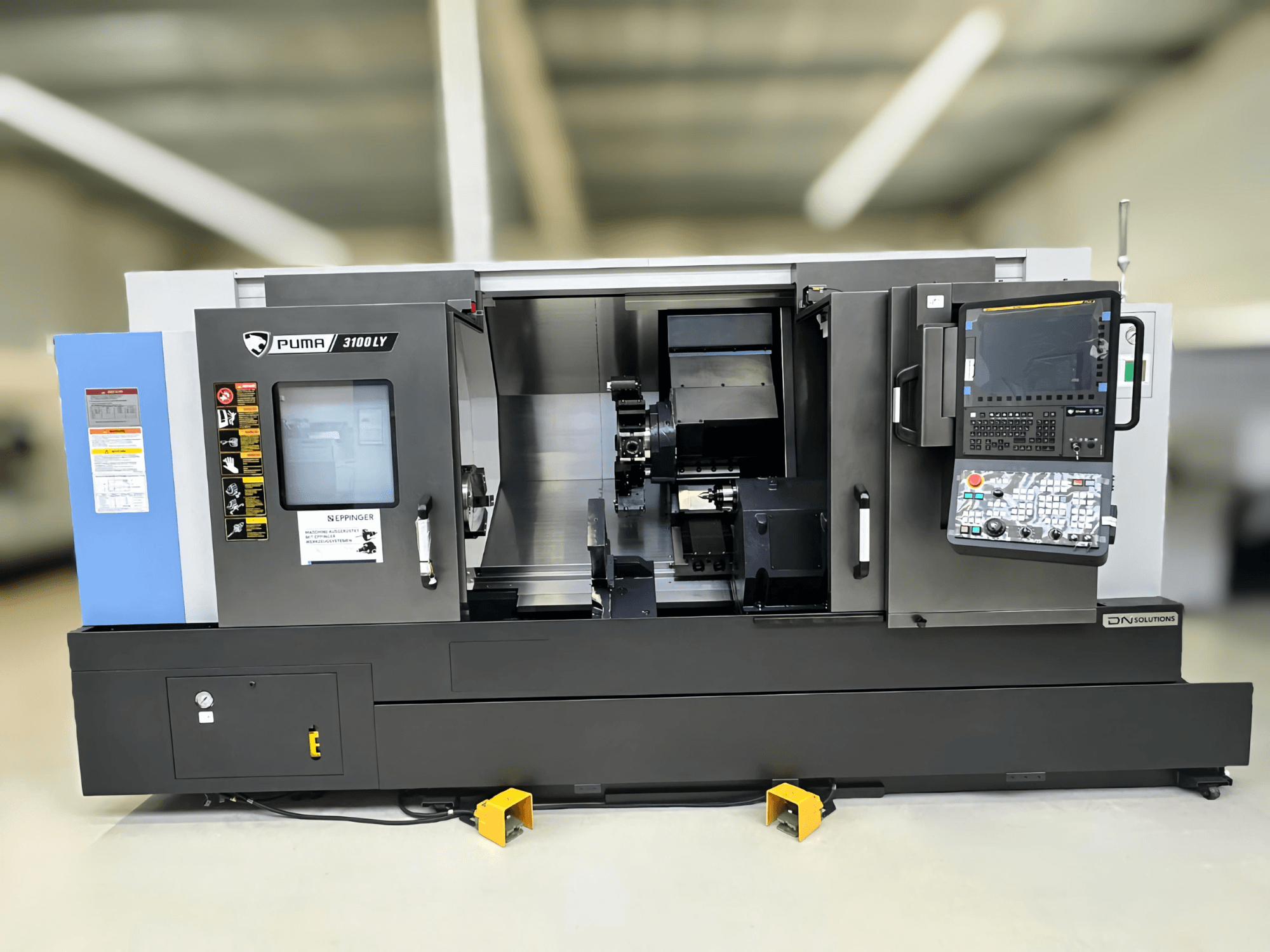

This 4-axis DN SOLUTIONS 3100 LY turn-mill centre was manufactured in 2023. It features a maximum turning diameter of 420 mm and a turning length of 1285 mm. The machine is equipped with a 12-inch main spindle chuck and a rapid traverse speed of 30 m/min in both X and Y axes. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS 3100 LY machine we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2023
- MODEL: 3100 LY
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS 3100 LY
Control Unit
- Control Brand: FANUC
- Control Model: 0i-F
Dimensions
- Machine Height: 2315 mm
- Machine Length: 4530 mm
- Machine Weight: 8000 kg
- Machine Width: 2067 mm
Movement
- Number of Axes: 4
- X-axis Travel: 293 mm
- Y-axis Travel: 130 mm
- Z-axis Travel: 1350 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 3000 RPM
Additional Information
Main spindle chuck size: 12 in (306 mm)
Bar capacity: 102 mm
Rapid traverse: X 30 m/min; Y 30 m/min; Z 10 m/min
Max turning diameter: 420 mm
Max turning length: 1285 mm
Driven tool speed: 5000 rpm
Tooling: 12 stations, BMT65
Guideway type: Box guideways
Axes/features: C-axis, Y-axis
Electrical: 380 V, 3-phase, 50/60 Hz
Electrical ratings: 55.02 kVA; Full load current 83.60 A; Short circuit capacity 10 kA; Interrupting capacity 5 kA
Additional equipment
Optional:
1 pc. External turning tool post BMT65 25x25 single left, right (500-0679)
3 pcs. External turning tool post R/L high (500-6960)
1 pc. Facing tool post BMT65P/SQ 25 mm (500-0834)
3 pcs. Boring bar holders (ID: 50 mm) BMT65P (500-5555)
1 pc. IK cover (500-0837)
1 pc. Reducing sleeve set
1 pc. Reducing sleeve set (500-0808)
1 pc. Adapter set PRECI-FLEX Er32 (BMT 65P) (500-0500)
12 pcs. Covers BMT 65 (500-1931)
2 angled externally cooled Eppinger AGWs
2 straight externally cooled Eppinger AGWs
Chip conveyor (hinge belt conveyor). Price on request
Machine is delivered with standard basic package: Turret fully equipped, base holder included
Machine is a Showroom machine that never has been in production. Like new
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
