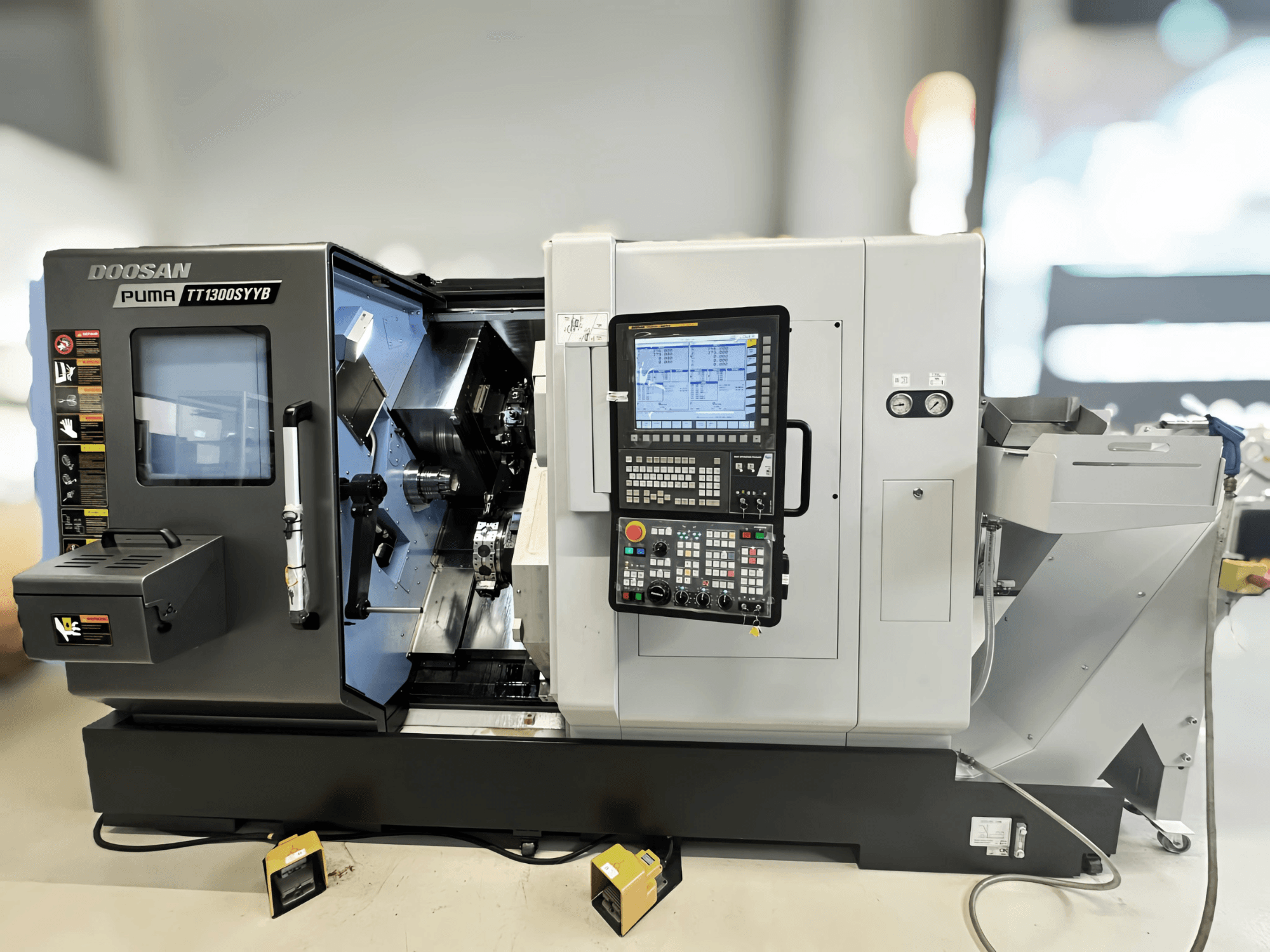

DN SOLUTIONS - PUMA TT1300SYYBDE-TUR-PUM-2019-00001

• Configuration: Twin-spindle / twin-turret (independent operation)

• Chuck size: 6" (170)

• Bar capacity: 51 mm

• Travels: X1/X2 135/80 mm; Z1/Z2 530/530 mm; Y-axis 30/40 mm

• Spindle motor power: 15 / 11 / 7.5 kW

• Turret stations: 12 / 12 (BMT 45)

• Guideways: Roller guideway

• Capabilities: Integrated high-speed C-axis and Y-axis for complex machining

Additional equipment

• High-pressure coolant through turret

• Oil skimmer

• Coolant supply through right/sub-spindle

• Parts ejector (sub-spindle)

• Parts catcher at main spindle with collection box

• Parts removal conveyor belt for sub-spindle

• Tool setter (automatic electric)

• Automatic shut-off

• Bar feeder interface (bar feeder not included)

• 3-color status light

• Optional: Chip conveyor (hinge belt conveyor). Price on request

• Machine is delivered with standard basic package: Turret fully equipped, base holder included.

• Optional:

• 5 pcs. External turning tool holder BMT45 20x20 single (500-0665)

• 2 pcs. Facing tool holder BMT45 20x20 left right (500-0668)

• 1 pc. External turning tool holder BMT45 20x20 double single (500-0669)

• 2 pcs. Double external turning tool holder HS (500-0686)

• 1 pc. Parting-off tool holder (500-6317)

• 7 pcs. Drill holder ID 25mm BMT 45 (500-5898)

• 2 pcs. Double internal turning tool holder GS

• 2 pcs. IK-cover drill holder (500-5687)

• 2 pcs. Reducing sleeve set Boring

• 2 pcs. Reducing sleeve set Drill

• 1 pc. Adapter set PRECI-FLEX ER20 (BMT 45P) (500-0524)

• 2 angled externally cooled Eppinger AGWs

• 2 straight externally cooled Eppinger AGWs

Additional Information

As new, showroom model
