Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DOOSAN - DNM 350/5AXKR-MIL-DOO-2017-00005
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Doosan DNM 350/5AX

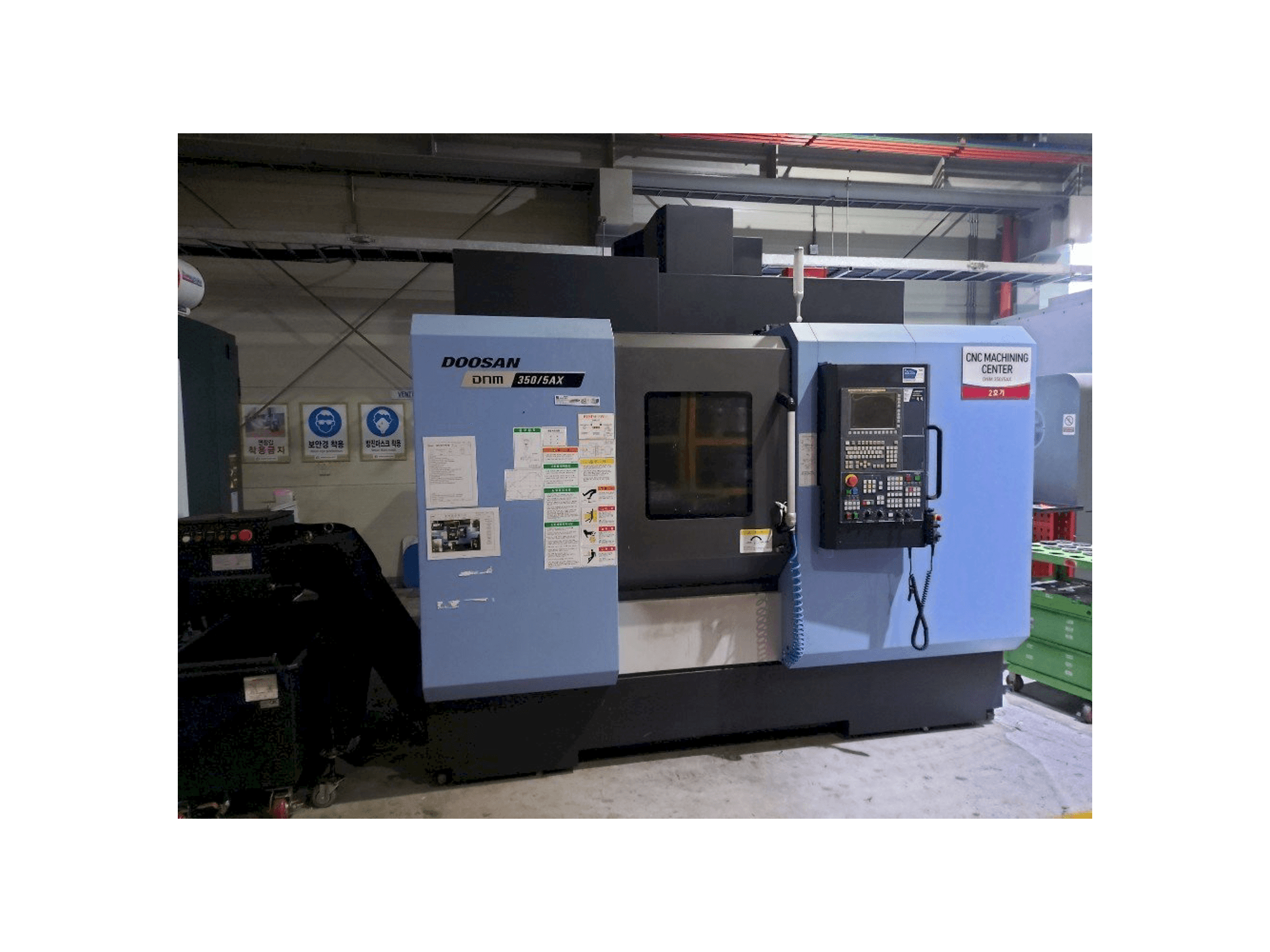

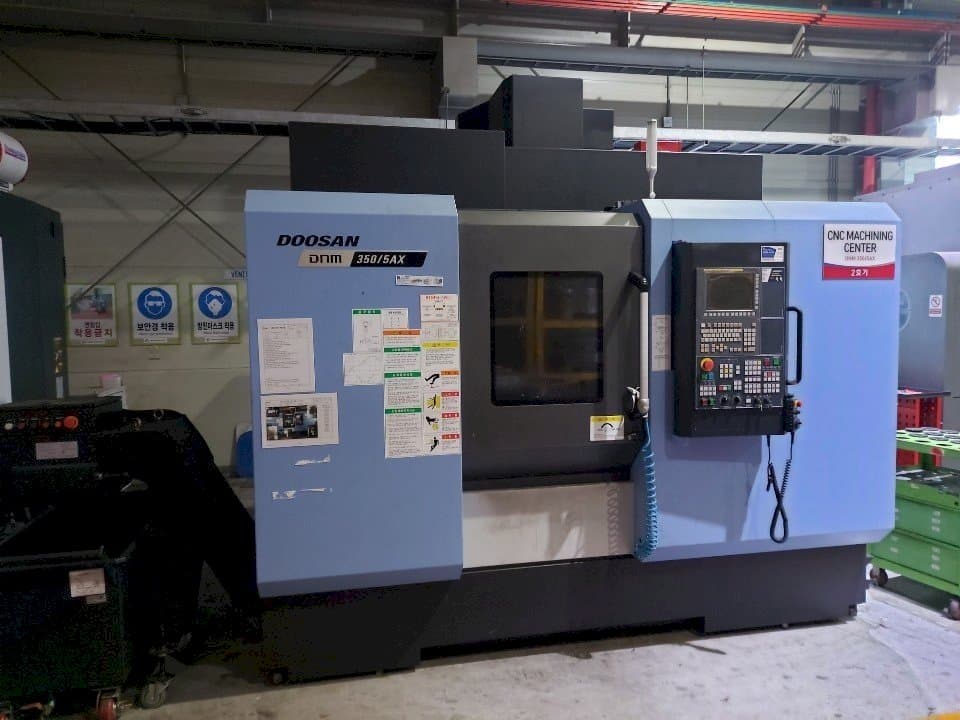

This Doosan DNM 350/5AX Universal Machining Center was manufactured in 2017 in Korea. This 5 axis machine is operated through a FANUC Series 31i-MODEL B5 control unit. It works with a spindle speed up to 20000 rpm and a table size Φ 350 mm. This machine includes its manual books. There are 2 units available.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: DNM 350/5AX
- application type: Milling
- Location: South Korea
- machine type: Universal Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN DNM 350/5AX
Control Unit
- Control Brand: FANUC
- Control Model: SERIES 31I-MODEL B5
Dimensions
- Machine Weight: 8500 kg
- Table Load: 250 kg
Movement
- Number of Axes: 5
- X-axis Travel: 400 mm
- Y-axis Travel: 655 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 20000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Manual books
Technical Machine Benefits
- A deg : 150 (+30 ~ -120); c deg : 360
- Max. Workpiece swing diameter x height : Ø 400 x 335 mm
- Table size: Ø350 mm
- Oil cooler
- Direct spindle type
- Magazine tool capacity: 30ea
- Linear scale (x, y, z, a, c)
- Automatic tool measurement
- Guideway type: lm guide; call right (led 3 step)
- Mpg handle; ce mark
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Documents
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
