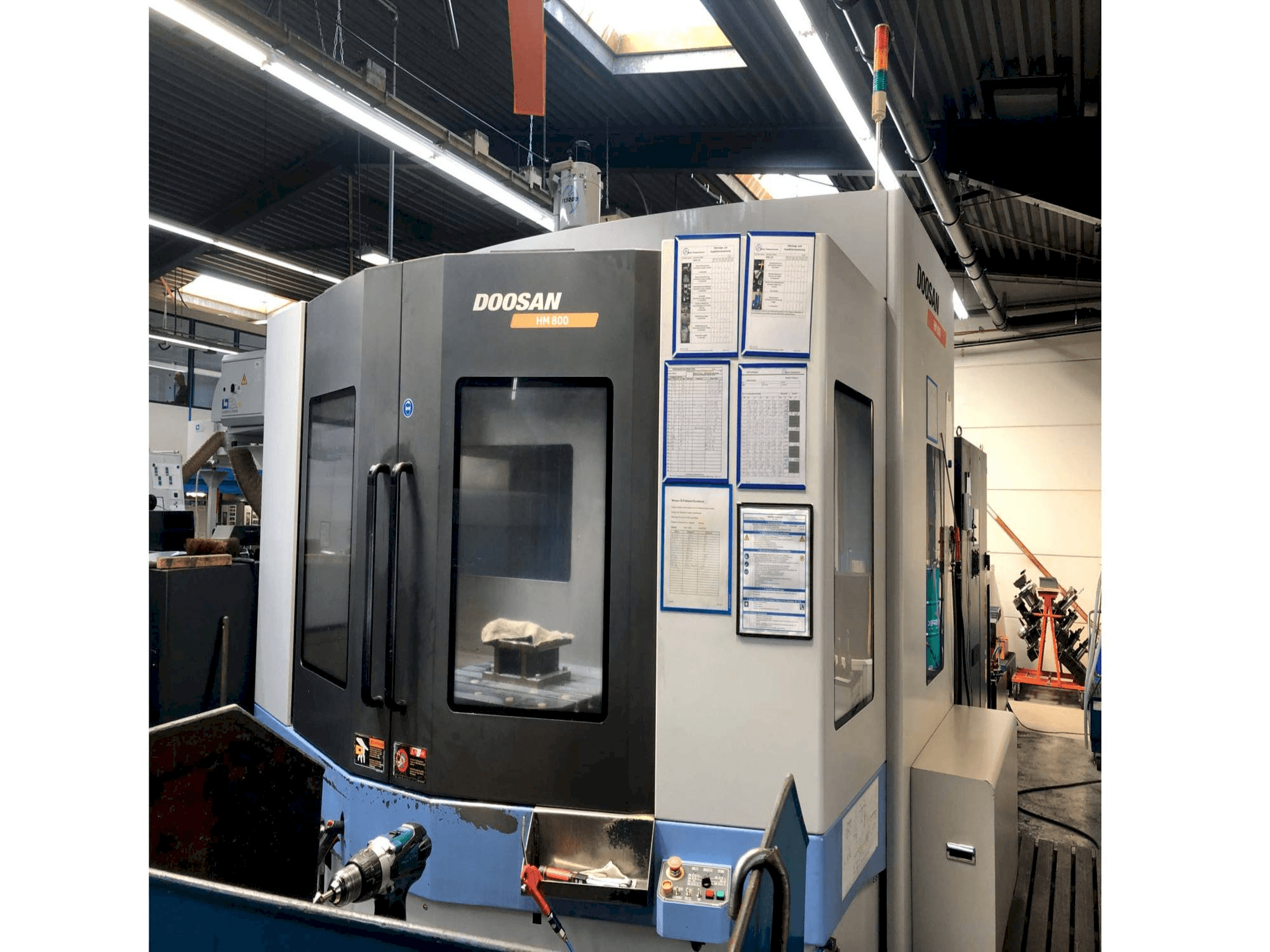

Doosan HM 800 Horizontal Machining center

Show in original language

This Doosan HM 800 Horizontal Machining center was manufactured in the year 2007 in Korea. It is equipped with a FANUC 18 - IM control unit and has 4 axis. The machine has a spindle speed of 20 - 6000 rpm.

Overview

brand: DOOSAN
year: 2007
MODEL: HM 800
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN HM 800

Control Unit

Control Brand: FANUC
Control Model: 18 - IM

Dimensions

Table Length: 800 mm
Table Width: 800 mm

Movement

Number of Axes: 4
X-axis Travel: 1250 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 1000 mm

Technical Specification

Spindle Power: 8.5 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Number of pallets: 2

Technical Machine Benefits

Max workpiece height: 1200 mm
Number of magazine places: 90
Tool taper: a50, din 69871 b tool length max. Mm. : 550
Tool Ø max. : 250 / with free auxiliary space tool weight max. Kg : 25
Macro package
Tool offsets: 200
Paper belt filter
Extraction
Schanier belt chip conveyor
Machine ran 70% of the time in 2 shifts in 14 years.

Extra Information

Optional: around 500 tools available for purchase

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
