Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DOOSAN - Puma 3100LYGB-TUR-DOO-2014-00002
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Doosan Puma 3100LY Lathe Machine
Show in original language

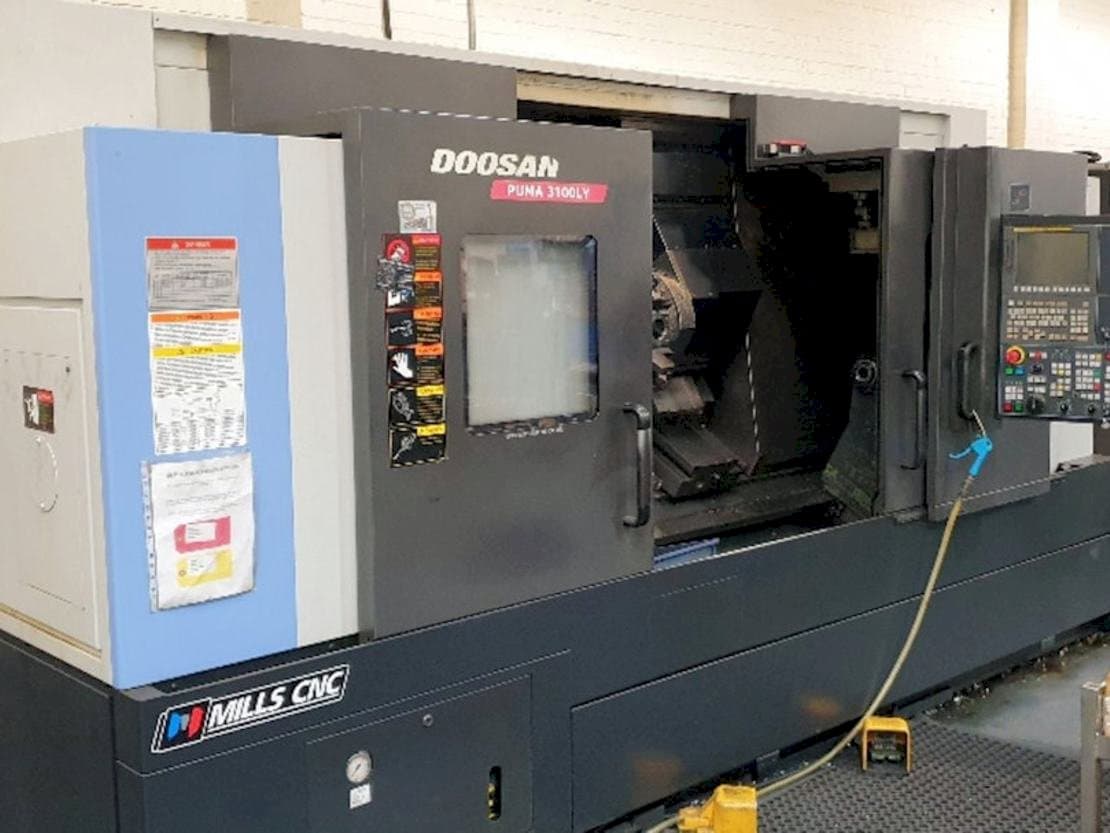

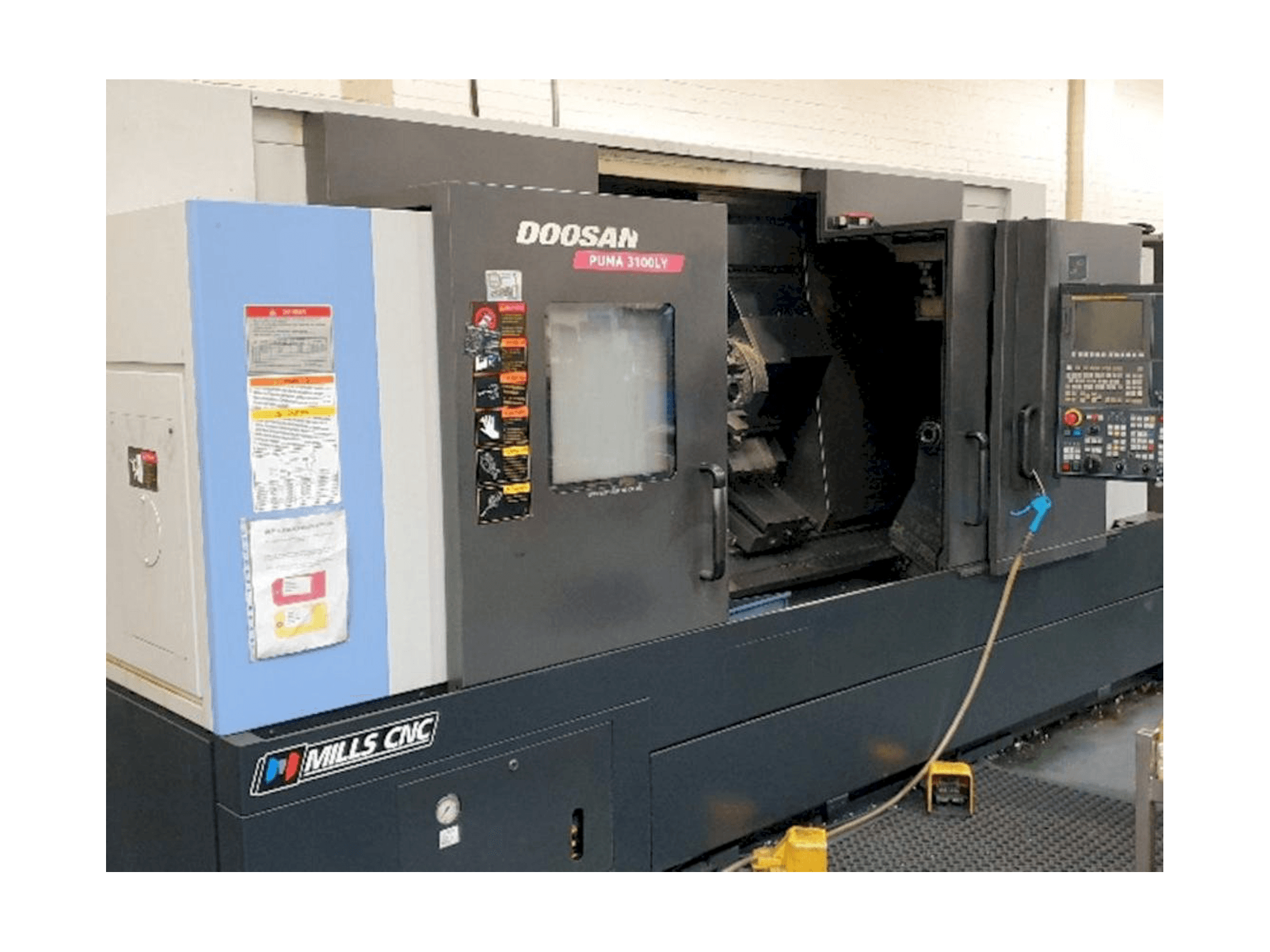

This Doosan 3100LY Lathe Machine was manufactured in 2014. It is operated through a DOOSAN - FANUC i Series control unit. The 4 axis machine has a spindle speed up to 2800 rpm. It is in very good condition.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: Puma 3100LY
- production hours: 18661
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DOOSAN Puma 3100LY
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Weight: 8000 kg
Movement
- X-axis Travel: 293 mm
- Y-axis Travel: 65 mm
- Z-axis Travel: 1350 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 18.5 kW
- Spindle Speed: 2800 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- Swing over bed 850 mm, over carriage 670 mm
- Maximum machining diameter 420 mm
- Maximum machining length 1285 mm
- Bar capacity 102 mm
- Milling power 5. 5/7. 5 kw; speed 5000 rpm
- 0. 001 degree c axis
- Tool setter, coolant
- 12” 3-jaw chuck
- Tailstock (taper mt #5, quill dia. 100 mm, quill stroke 100 mm)
- 4 controlled axes (x, z, c, y)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
