ELMAG S400-CNC Vertical Machining Center

Show in original language

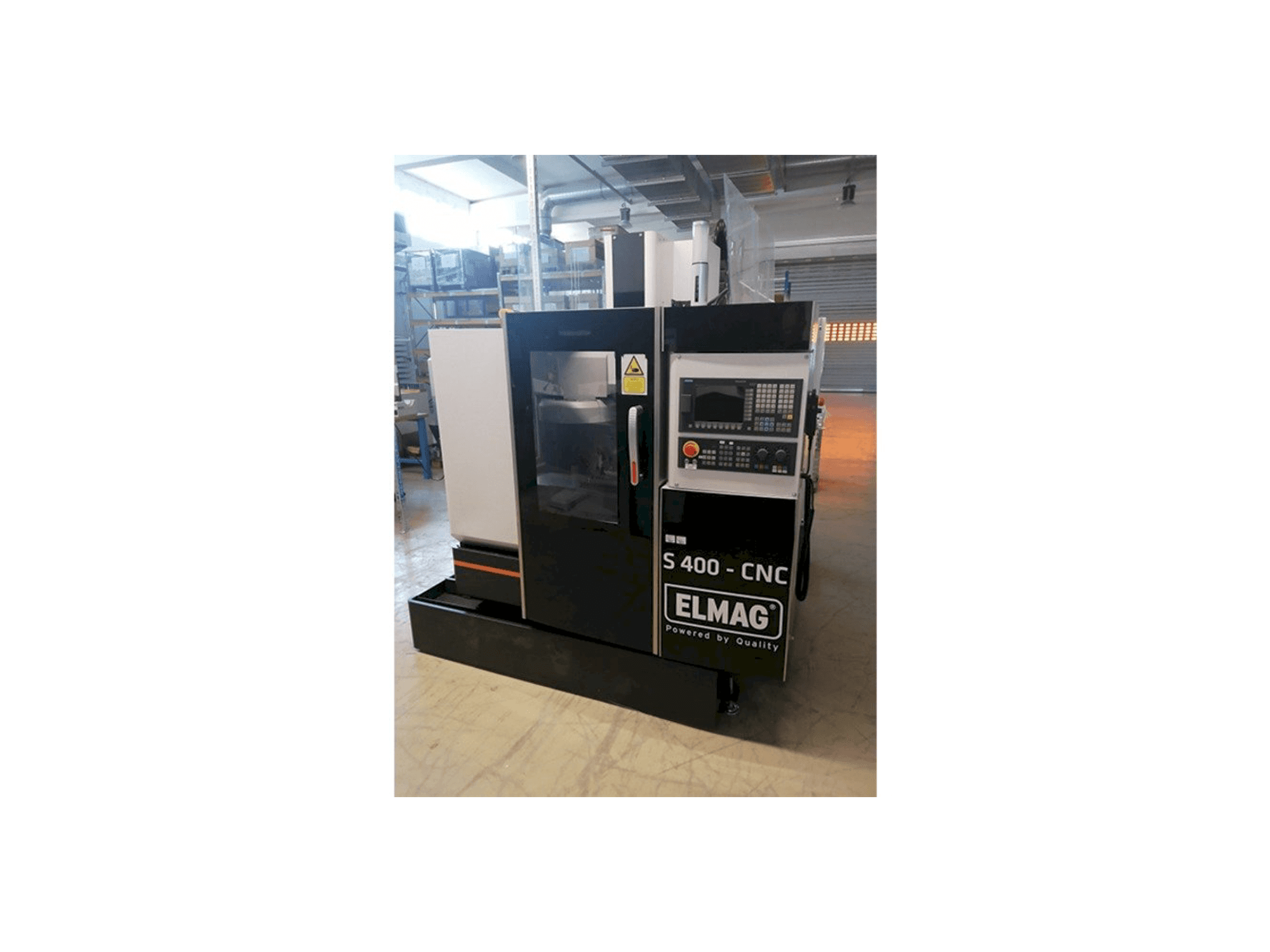

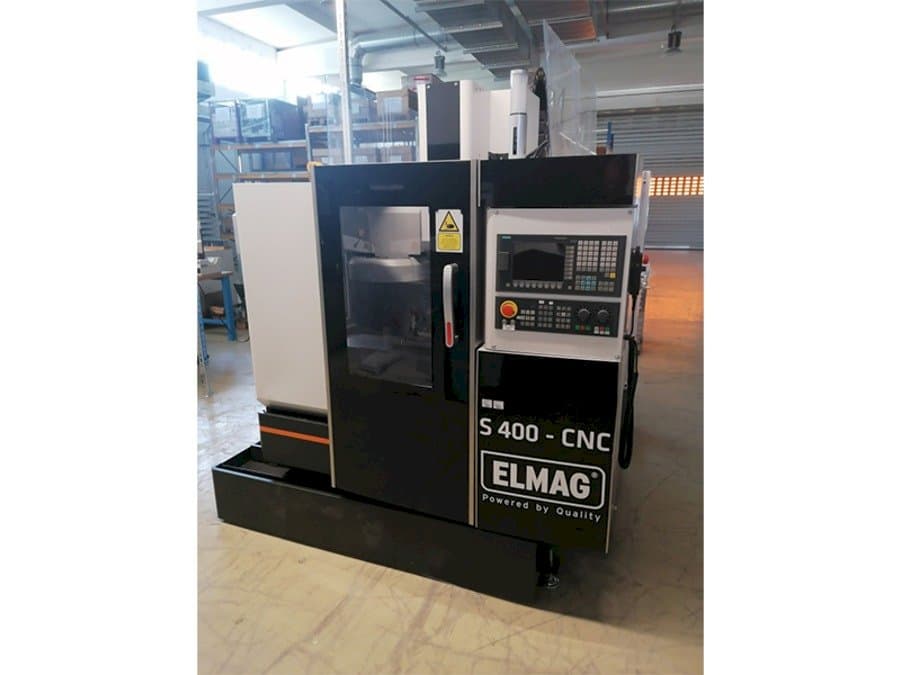

This ELMAG S400-CNC Vertical Machining Center was manufactured in Austria in the year 2019. It counts with approximately 500 working hours. This 3 axis machine operates through a Siemens SINUMERIK 808D control unit. It incorporates a spindle speed range between 60 - 6000 rpm.

Overview

brand: ELMAG
year: 2019
MODEL: S400-CNC
production hours: 500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - ELMAG S400-CNC

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 808D

Dimensions

Machine Depth: 1520 mm
Machine Height: 2000 mm
Machine Weight: 1450 kg
Table Length: 600 mm
Table Width: 250 mm

Movement

Number of Axes: 3
X-axis Travel: 8000 mm
Y-axis Travel: 8000 mm
Z-axis Travel: 6000 mm

Technical Specification

Spindle Speed: 6000 RPM
Taper Size: BT 30

Additional Information

Machine Benefits

Technical Machine Benefits

Distance from spindle end to table top: 60 - 460 mm
Distance from spindle center to column guide way: 315 mm
Table travel: 400 x 250 mm
T - slot: 3 - 14 mm - 75 mm
Feed motor: 1. 5 kw
Coolant pump: 40 w

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
