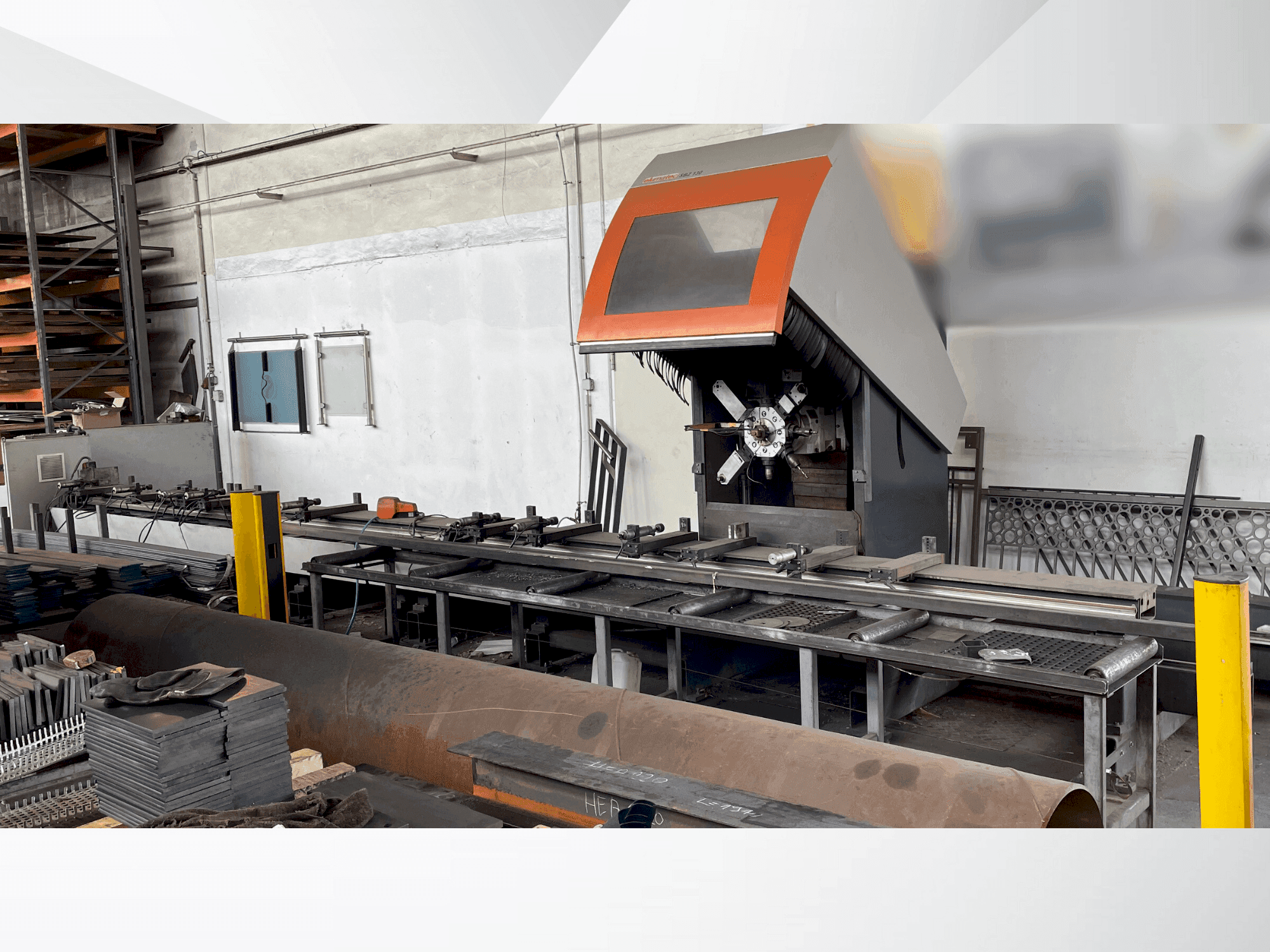

Front view of Elumatec SBZ 130  machine

Elumatec - SBZ 130AT-MIL-ELU-2001-00001

17,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Elumatec SBZ 130 vertical machining centre was manufactured in 2001. It features an 8-fold turret head, three angular gears, and pendulum operation with two separate machining zones. The maximum machining length is 8,500 mm, and it includes a barcode scanner. Ideal for milling, drilling, and thread cutting operations. A great opportunity to buy this Elumatec SBZ 130 vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: Elumatec
  • year: 2001
  • MODEL: SBZ 130
  • application type: Milling
  • Location: Austria
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - Elumatec SBZ 130

General Data

  • Measurements width: 11650 mm
  • Measurements depth: 2600 mm
  • Measurements height: 2600 mm
  • Machine weight: 6000 kg

Main drive

  • Spindle speed range: 6000 1/MIN

Movement

  • X-AXIS Movement: 8500 MM
  • Y-AXIS Movement: 485 MM
  • Z-AXIS Movement: 340 MM

    Additional Equipment

    • - 8-fold turret head incl. tool holders and 3 angular gears
    • - Pendulum operation with 2 separate machining zones
    • - Workstation protection with laser scanner
    • - Barcode scanner

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Machining length: 8500 mm,
        • - Operations: milling, drilling, thread cutting
        • - Electrical connection: 400 v, 50 hz, 22 a
        • - Compressed air connection: min. 5 bar, max. 8 bar

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
