FERMAT WHN 13.8 CNC

Photo Gallery

105,000 €

gindumac price

(Ex works)

Get an official quote

FERMAT - WHN 13.8 CNCDE-MIL-FER-1980-00001

Name: FERMAT WHN 13.8 CNC
Brand: FERMAT
SKU: DE-MIL-FER-1980-00001
Price: 105000 EUR
Availability: InStock

105,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FERMAT WHN 13.8 CNC For Sale | gindumac.com

Show in original language

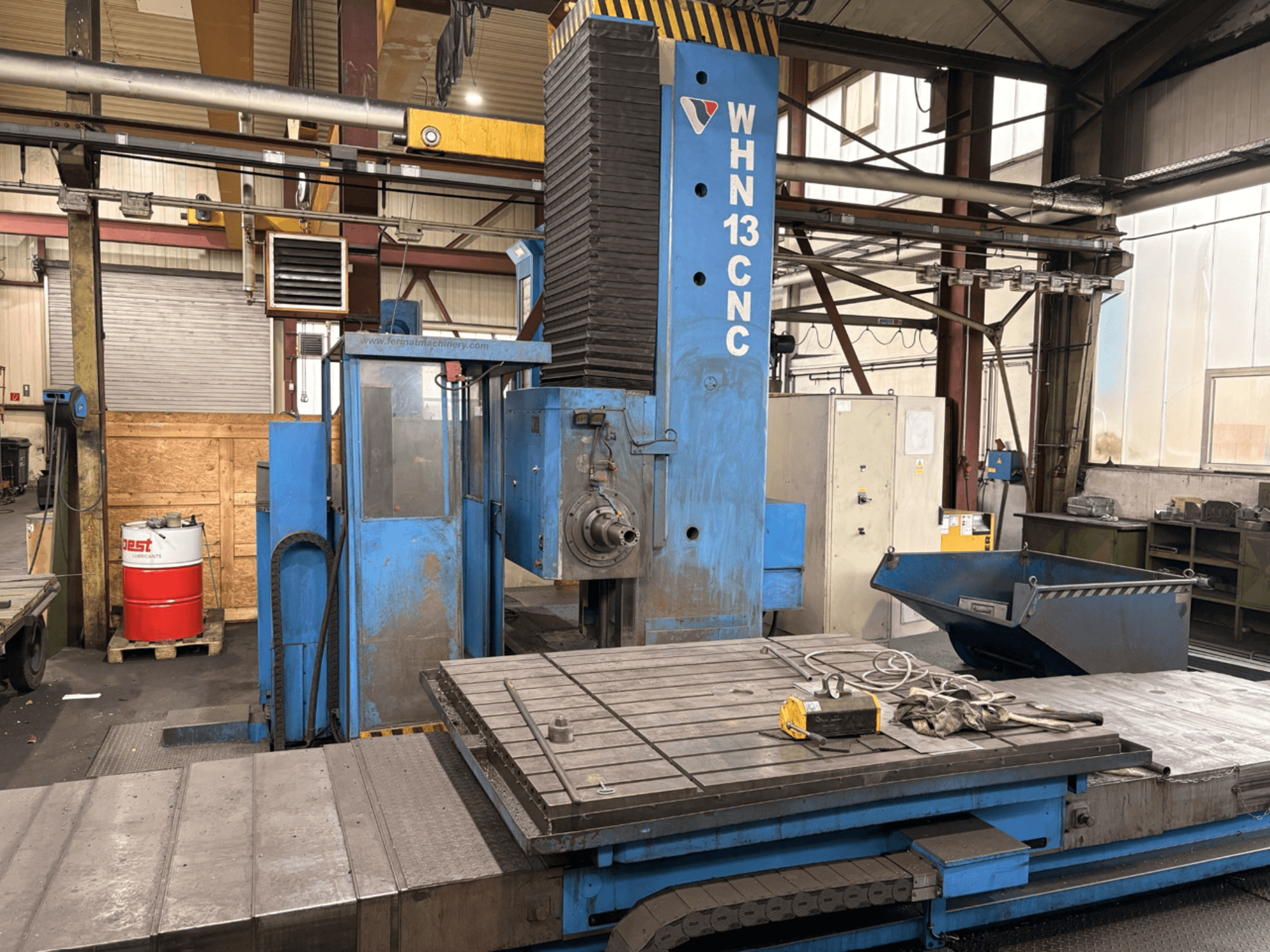

This 5-axis FERMAT WHN 13.8 CNC was manufactured in 1980 and overhauled in 2008. It features a generous X-axis travel of 3,500 mm, Y-axis travel of 2,000 mm, and Z-axis travel of 1,250 mm. The machine includes a robust table size of 2,200 x 1,800 mm and can handle a maximum workpiece weight of 12,000 kg. If you are looking to get high-quality machining capabilities, consider the FERMAT WHN 13.8 CNC horizontal machining centre. Contact us for further details.

Overview

brand: FERMAT
year: 1980
MODEL: WHN 13.8 CNC
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - FERMAT WHN 13.8 CNC

Control Unit

Control Brand: HEIDENHAIN

Movement

Number of Axes: 5
X-axis Travel: 3500 mm
Y-axis Travel: 2000 mm
Z-axis Travel: 1350 mm

Technical Specification

Spindle Speed: 1200 RPM

Additional Information

- Original Year of Manufacture: 1980

- Overhaul / Modernization Year: 2008 (by FERMAT CZ s.r.o.)

- Heidenhain main drive module for Y-axis renewed in 2026

- CNC Control: Heidenhain iTNC 530 (with installed Service Pack and electronic handwheel)

- Controlled Axes: 5 axes (X, Y, Z, W, and B)

- Travel W-Axis (Spindle stroke): 800 mm

- B-Axis: NC rotary table (360°)

- Table Dimensions: 2,200 x 1,800 mm

- Max. Workpiece Weight on Table: 12,000 kg

- T-Slots: 11 slots; 24 H7; 160 mm pitch

- Spindle Diameter: 130 mm

- Tool Taper: ISO 50

- Spindle Speed Range: 5 to 1,200 rpm

- Main Drive Power: 37 kW

- Rapid Traverse: 6,000 mm/min

- Positioning Accuracy: ± 0.02 mm

- Installed Power Capacity: 50 kVA

- Machine Dimensions: approx. 7,800 x 7,200 x 4,900 mm

- Footprint / Ceiling Clearance: approx. 50 m² floor space; required installation height 6,300 mm

- Machine Weight: approx. 38,000 kg

- Included Equipment & Features: Chip conveyor system, separate electrical control cabinet, hydraulic supply unit, technical documentation and operating manual (Version Breuer 060412)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
