HAAS DS-30SSY

Photo Gallery

HAAS - DS-30SSYES-TUR-HAA-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS DS-30SSY For Sale | gindumac.com

Show in original language

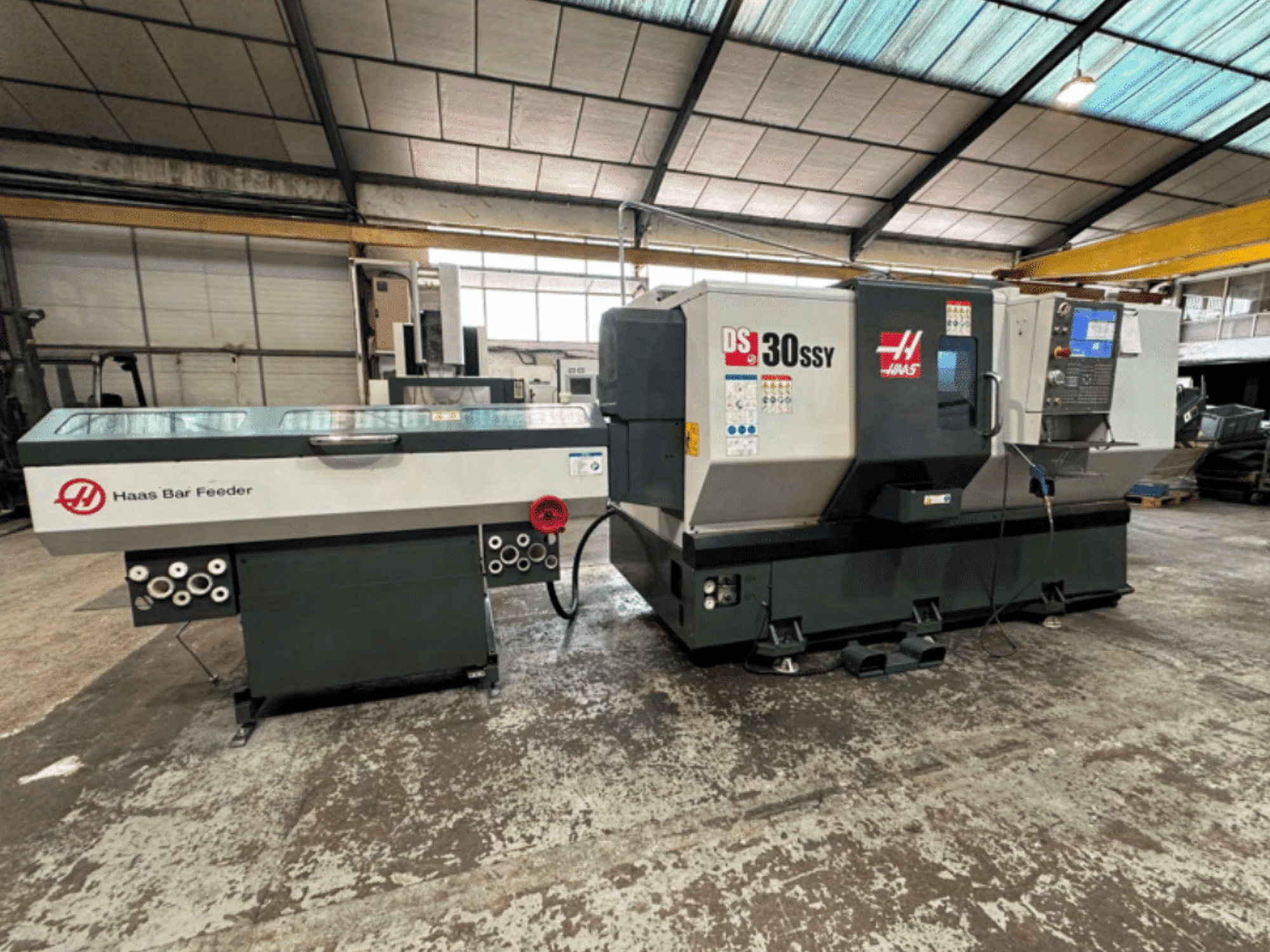

This 3-axis HAAS DS-30SSY was manufactured in 2017. It features a dual spindle system with vector-driven main and secondary spindles, both offering 4,800 rpm. The turret accommodates 24 hybrid stations for versatile tooling options. It includes a high-pressure coolant system, belt-type chip conveyor, and an advanced control system with a 15" color monitor. If you are looking to get high-quality turning capabilities consider the HAAS DS-30SSY machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2017
MODEL: DS-30SSY
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine

Technical Information - HAAS DS-30SSY

Movement

Number of Axes: 3
Y-axis Travel: 50.8 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 4800 RPM

Additional Information

Maximum workpiece capacity: 406 × 584 mm
Swing over bed: 806 mm
Y-axis travel: ±50.8 mm
Main spindle: vector-driven, A2-6 taper, 210 mm chuck
Secondary spindle: vector-driven, 20 hp (14.9 kW), 4,800 rpm, A2-5 taper, 210 mm chuck
Turret: hybrid 24 stations (12 BOT + 12 VDI), high-torque live tools with C-axis
Control: 15" color monitor, memory protection key, spindle orientation, USB port, rigid tapping
Connectivity: Ethernet interface

Additional equipment

Belt-type chip conveyor
High-pressure coolant, 300 psi (21 bar)
Automatic air blow
Automatic tool measurement
Haas bar feeder with installation kit
Tooling kit, including rotary axial and radial tool holders
Export packaging

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
