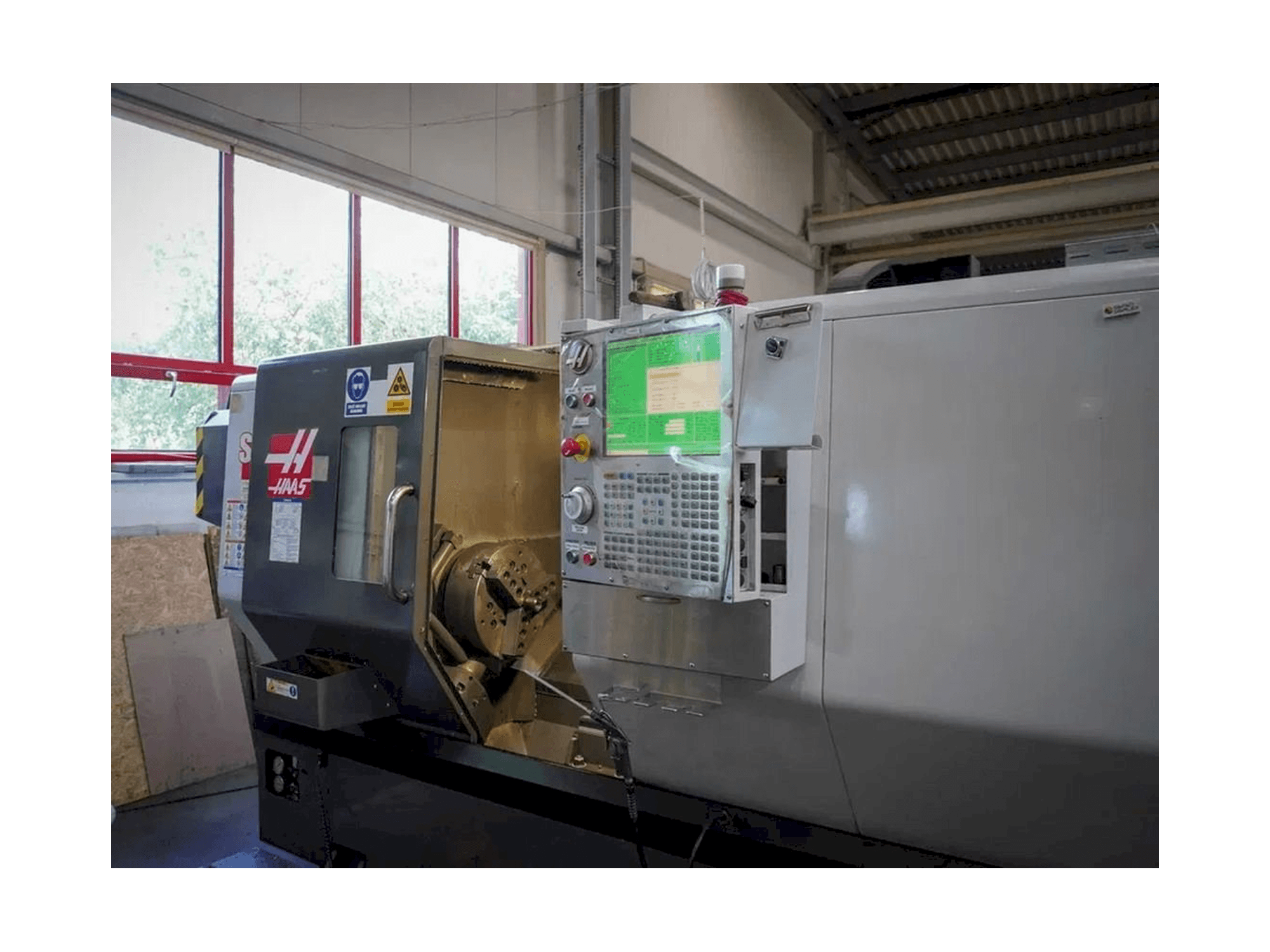

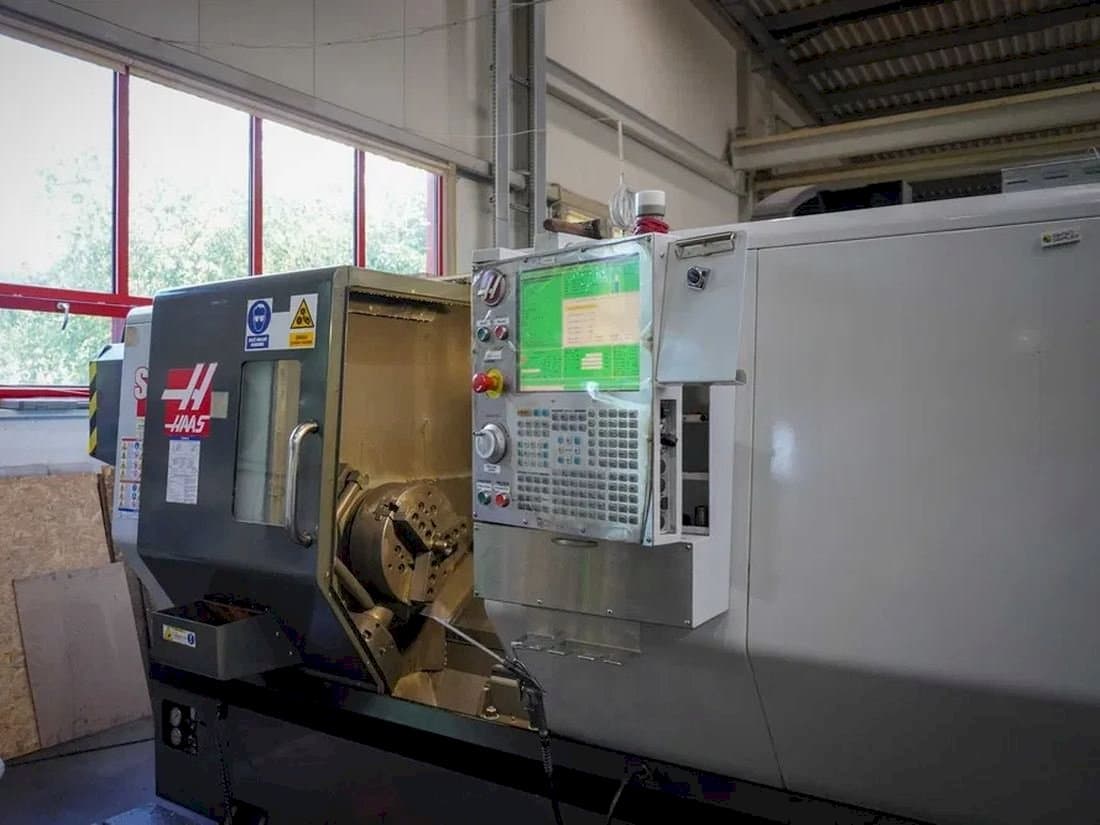

This HAAS ST-30 was manufactured in 2012. A robust horizontal turning machine featuring a spindle speed of 3400 rpm and motor power of 22.4 kW. It has a chuck size of 254 mm and a bar capacity of 76 mm, accommodating substantial workpieces. The machine dimensions are 4350 x 2290 x 2490 mm, weighing 4944 kg. Ideal for precision machining, the HAAS ST-30 machine we have for sale. Contact us for further details regarding this horizontal turning machine.
Overview
- brand: HAAS
- year: 2012
- MODEL: ST-30
- production hours: 4042
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: Haas
Technical Information - HAAS ST-30
General Data
- Measurements width: 2290 MM
- Measurements depth: 4350 MM
- Measurements height: 2490 MM
- Machine weight: 4944 KG
Control Unit
- Brand: Haas
Main drive
- Spindle speed range: 3400 1/MIN
- Spindle motor power: 22.4 kW
- Spindle bore: 88.9 mm
- Tool taper: A2-6
Movement
- X-AXIS Movement: 239 mm
- X-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 826 mm
- Z-AXIS Rapid traverse: 24 m/min
Tools
- Slots in storage: 12
Additional Information
- Technical Machine Benefits:
- - Turning length: 826 mm
- - Turning diameter: 381 mm
- - Max. Part swing: 533 mm
- - Distance between centers: 826 mm
- - Chuck size: 254 mm
- - Bar capacity: 76 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
