HAAS VF-1

Photo Gallery

HAAS - VF-1HR-MIL-HAA-2020-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-1 Machining Center For Sale | gindumac.com

Show in original language

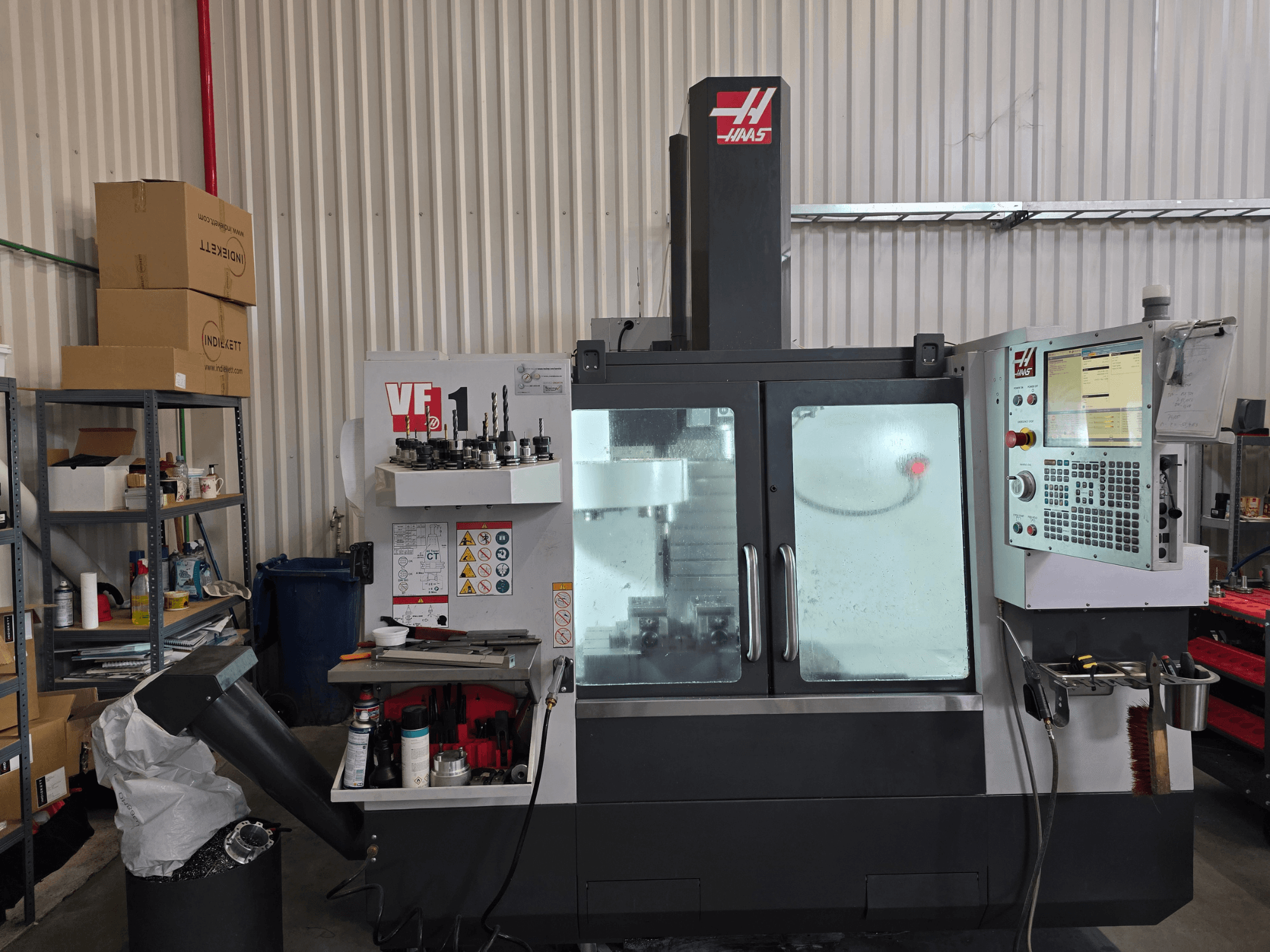

This 3-axis HAAS VF-1 was manufactured in 2020. It features a working area with X-axis travel of 508 mm, Y-axis travel of 406 mm, and Z-axis travel of 508 mm. The machine includes a maximum spindle speed of 8,100 RPM and comes equipped with a Renishaw OTS tool setter and a tool magazine. If you are looking to get high-quality machining capabilities, consider the HAAS VF-1HE-D vertical machining centre we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2020
MODEL: VF-1
production hours: 6684
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-1

Control Unit

Control Brand: HAAS

Movement

Number of Axes: 3
X-axis Travel: 508 mm
Y-axis Travel: 406 mm
Z-axis Travel: 508 mm

Technical Specification

Spindle Speed: 8100 RPM

Additional Information

Electrical
- Voltage: 400 V
- Frequency: 50/60 Hz
- Short circuit capacity: 10,000 A
- Enclosure type: NEMA Type 2 (indoor use)
CNC / Control
- HAAS CNC control
- Control version: Aug 4, 2020
- Software release: 100.20.000.1101
- MOCON: 1.16.K
Machine data
- Tool changes: 30,278
- Power cycles: 711
- Power on time: 6,684 hours
Active features / options
- Macros
- Rotation & Scaling
- Rigid Tapping
- M19 Spindle Orient
- High Speed Machining
- VPS Editing
- Media Display
- Max memory: 1 GB
- Wireless Networking
- Compensation Tables
Tooling/ATC
- Tool magazine (ATC)
- Standard HAAS control

Additional equipment

Renishaw OTS tool setter
Machine vise

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
