HAAS VF-4SS

Photo Gallery

HAAS - VF-4SSGB-MIL-HAA-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

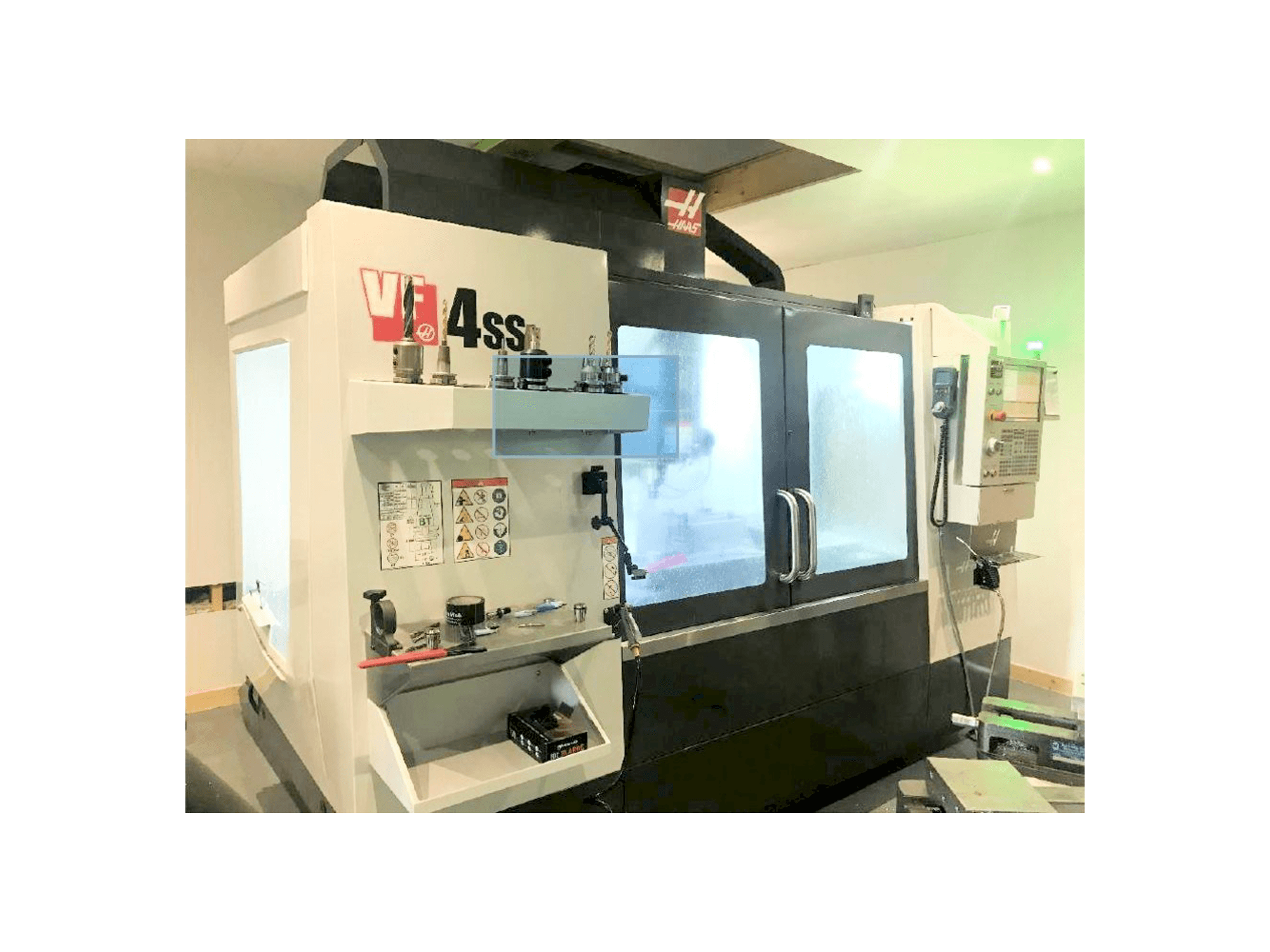

HAAS VF-4SS Milling machine

Show in original language

This HAAS VF-4SS Milling machine was built in 2019 in the United States. It is controlled by a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and is in very good condition, only used for cutting aluminum and plastics.

Overview

brand: HAAS
year: 2019
MODEL: VF-4SS
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-4SS

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 2794 mm
Machine Height: 2985 mm
Machine Weight: 6033 kg
Table Length: 1324 mm
Table Width: 457 mm

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 508 mm
Z-axis Travel: 635 mm

Technical Specification

Max. Tool Weight: 5.4 kg
Spindle Power: 22.4 kW
Spindle Speed: 12000 RPM
Tool Stations: 30

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
Only used for cutting aluminium and plastics

Technical Machine Benefits

Rapid feed rates 35. 6m/minute
Min-max height under spindle 107-742 mm
Wips system (wireless intuitive probing system)
Tool setter, spindle probe
Programmable coolant nozzle
Coolant
Usb port
Through spindle coolant
Swarf auger

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
