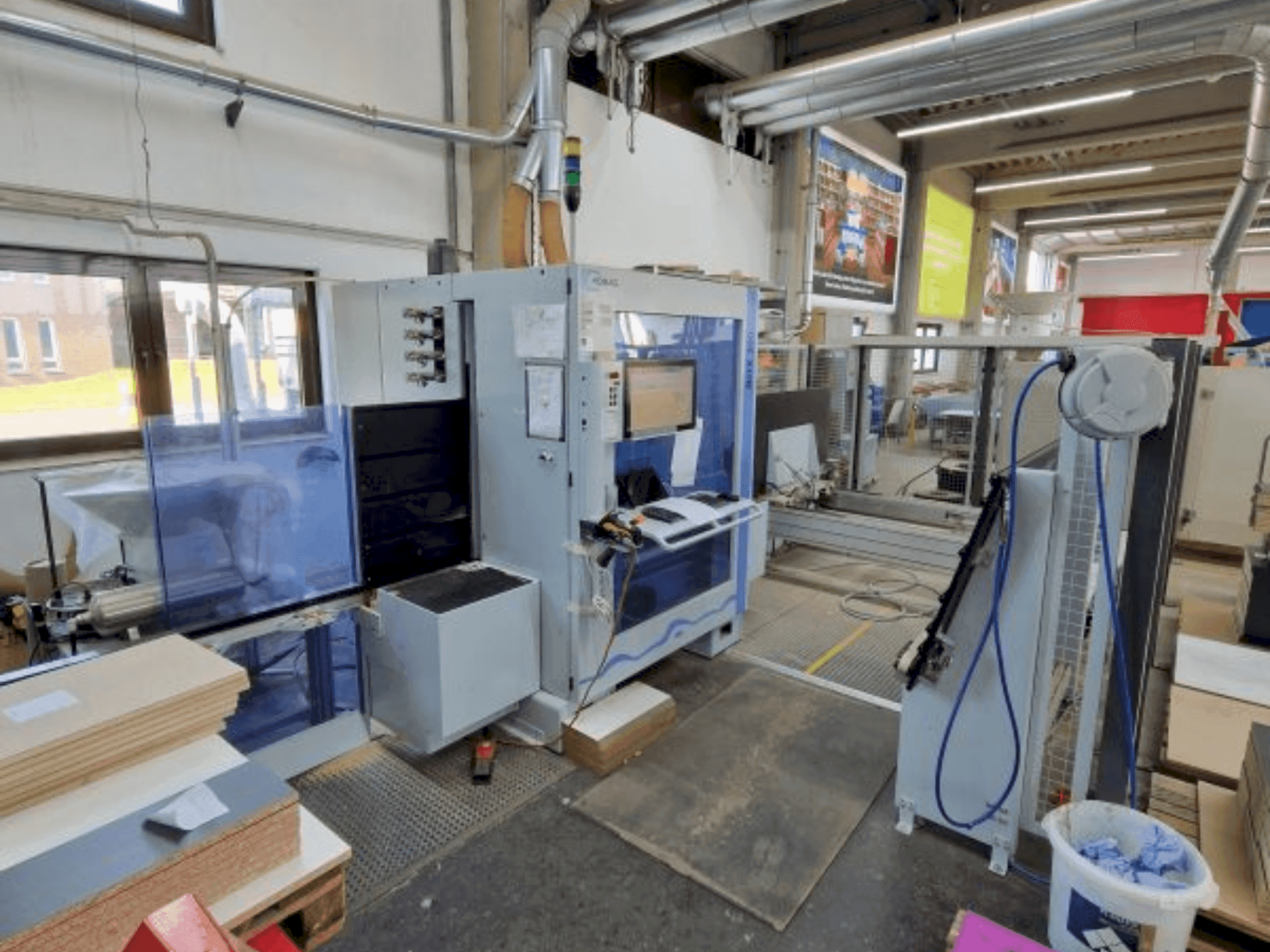

HOMAG - Optimat BHX200/DDE-CNC-HOM-2017-00002

Additional Equipment

• - Stop Cylinder: For workpiece positioning
• - BHX 200 Workpiece Clamping System: 2 movable workpiece clamps

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Workpiece length: 200 to 3050 mm
  • - Workpiece width: 50 to 1250 mm
  • - Workpiece thickness: 8 to 80 mm

Extra information

• - Tools Drilling Gear V15 High Speed: Feed Stroke Z-direction: 60 mm Drilling Depth: Max. 38 mm Speed: 1500 - 1700 rpm, frequency-controlled Drive: 2.3 kW Horizontal Drilling Gear with 6 Spindles X-direction: 6 Drilling Spindles: 32 mm pitch, 3 each in X - direction Drilling Depth: Max. 38 mm Speed: 1500 - 1700 rpm, frequency-controlled Horizontal Drilling Gear with 4 Spindles Y-direction: 4 Drilling Spindles: 32 mm pitch, 2 each in Y - direction Drilling Depth: Max. 38 mm Speed: 1500 - 1700 rpm, frequency-controlled Vertical Fitting Drilling Gear, 3 Spindles: Number of Spindles: 3 Drilling Depth: Max. 38 mm Speed: Max 3000 rpm Automatic 90° Tilting Grooving Saw: Cutting Depth: 30 mm Speed: 1500 - 7500 rpm, frequency-controlled Dowel Insertion Station (White Glue): Includes dowel insertion tools, glue pump, flow monitors, cleaning brushes. Tool Change Spindle: Tool Holder: HSK63 Speed: 1500 - 24000 rpm, infinite programming Max Power at the Tool: Up to 10 kW 4-Position Pick-up Changer for HSK63: Magazine Positions: 4 tool positions Control Unit Powercontrol with Powertouch Powercontrol Software BHX 050-200 Woodwop
