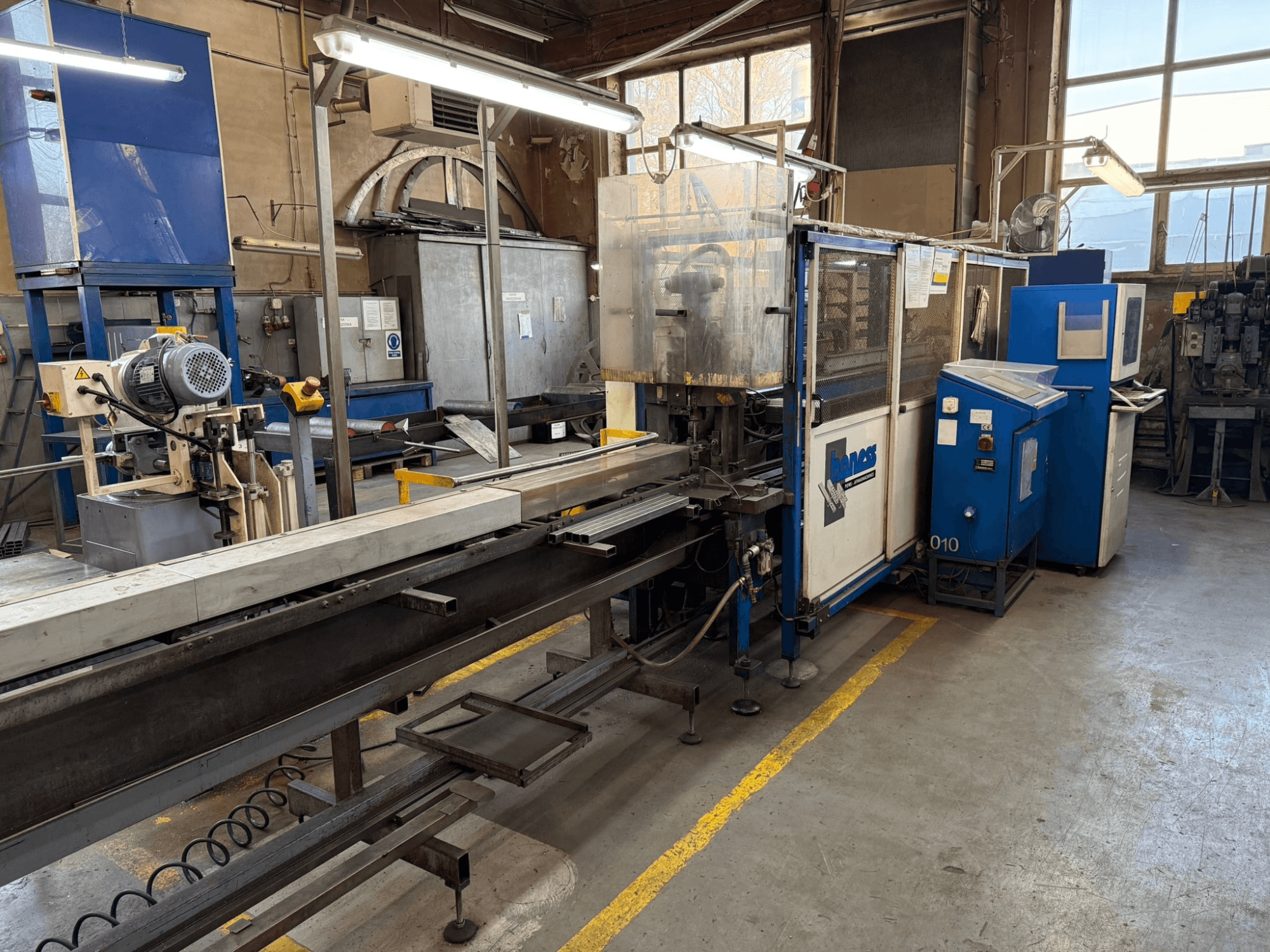

HONESS - V250-3000PL-PUN-OTH-2002-00001

Workpiece clamping:

• Self-centering product clamp, gripping the tube from the outside

• Interchangeable clamping jaws for different tube/profile types

• Adjustable clamp position for accurate alignment

Workpiece dimensions:

• Max product width (single-sided punching): 100 mm

• Max product height (single-sided punching): 80 mm

• Max product height for through holes: 60 mm

• Max travel of product clamps: 3,100 mm

• Minimum distance from tube end to first punchable hole: 30 mm

Punching capacity:

• Max punching diameter (as delivered, through holes): Ø40 mm

• Punching station: Single vertical punching cylinder

• Max punching force: 250 kN at 220 bar working pressure

• Max vertical stroke of punching cylinder: 80 mm

Performance:

• Max strokes per minute: Dependent on cylinder stroke setting and hole pitch

• Clamp carriage travel speed: approx. 40 m/min

• Positioning repeatability: ±0.1 mm

Machine size and range:

• Punching machine working range: > 3.10 m

• Support table length: 3.00 m
