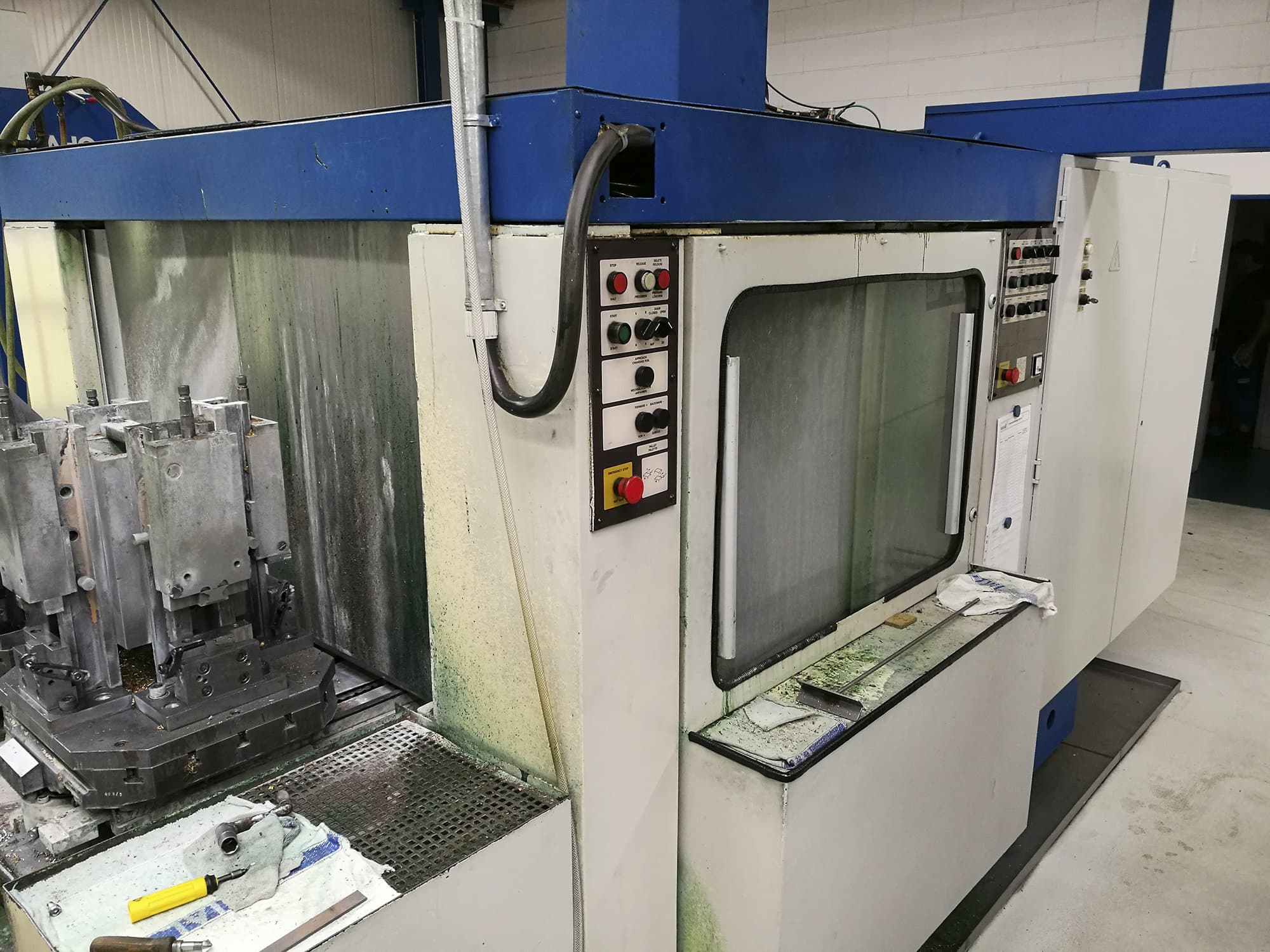

Left view of Hueller Hille NBH 70 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HULLER HILLE NBH 70

Photo Gallery

HULLER HILLE - NBH 70DE-MIL-HUE-1985-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hueller Hille NBH 70 Horizontal Machining Center

Show in original language

This Hueller Hille NBH 70 Horizontal Machining Center from 1985 was manufactured in Germany. Operated through a SIEMENS SINUMERIK System 8 Control unit, this machine has mainly worked with steel during the past.

Overview

brand: HULLER HILLE
year: 1985
MODEL: NBH 70
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - HULLER HILLE NBH 70

General Data

Measurements width: 4040 mm
Measurements depth: 2300 mm
Measurements height: 2920 mm
Machine weight: 8700 kg

Control Unit

Model: SINUMERIK System 8
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 25-4000 1/min

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 15000 mm/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 15000 mm/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 15000 mm/min

Table

Outer length: 500 mm
Outer width: 400 mm
Number of tslots: 5
Distance between: 80 mm

Tools

Max weight: 15 kg
Max tool diameter: 110 mm
Max tool length: 320 mm

Media

Main electronic connection: 380 V
Power consumption: 36 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
