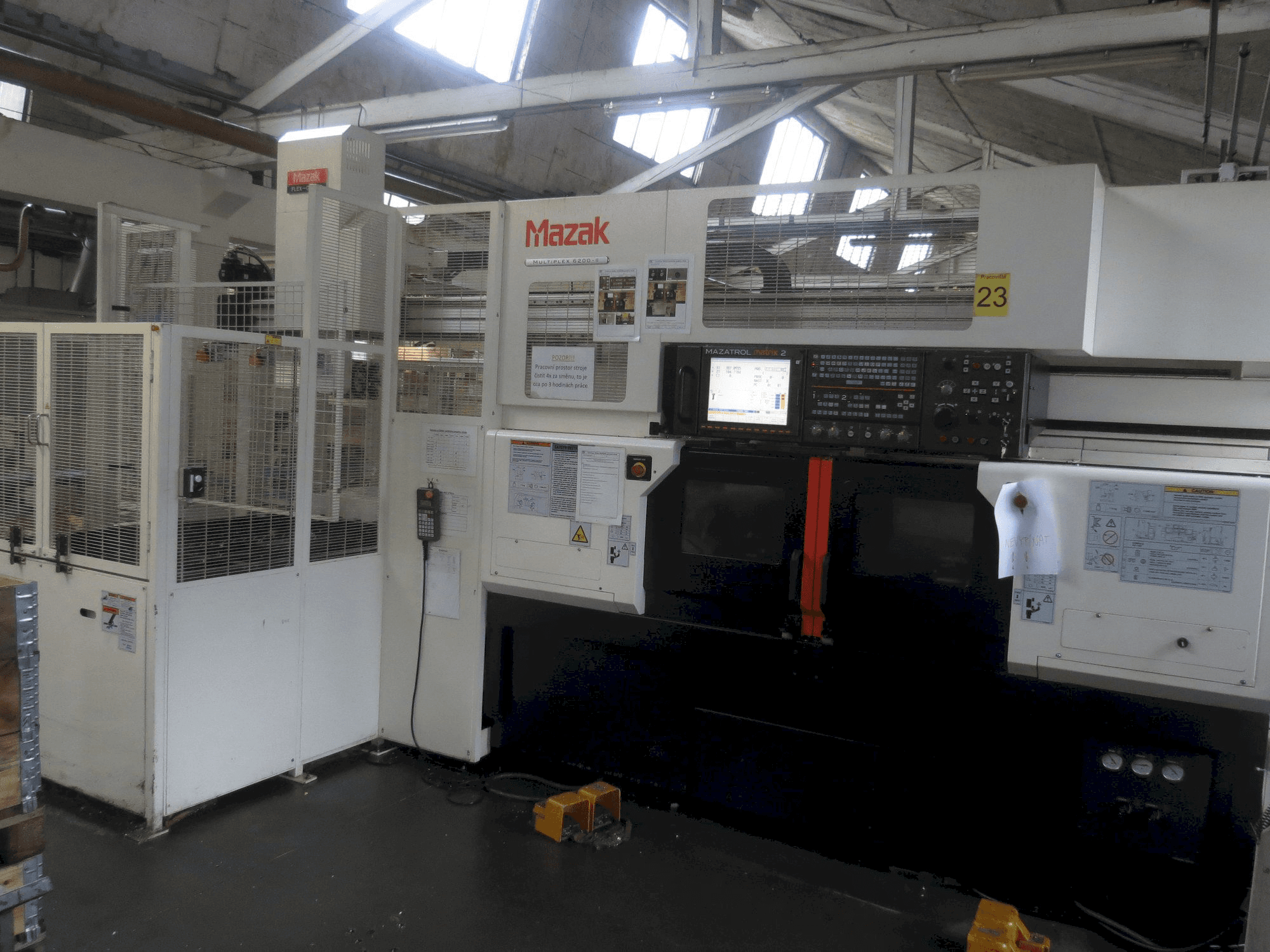

Front view of Mazak Multiplex 6200-II machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Multiplex 6200-II

Photo Gallery

Mazak - Multiplex 6200-IICZ-TUR-MAZ-2015-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Multiplex 6200-II Lathe

Show in original language

This Mazak Multiplex 6200-II Lathe was manufactured in the year 2015 in Japan. It is equipped with a Mazak Matrix 2 control unit. The machine has a spindle speed of 5000 rpm.

Overview

brand: Mazak
year: 2015
MODEL: Multiplex 6200-II
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Multiplex 6200-II

Control Unit

Brand: MAZATROL
Model: Matrix 2

General Data

Measurements width: 3570 mm
Measurements depth: 1795 mm
Measurements height: 2090 mm

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Spindle motor power: 22.5 kW

Movement

X-AXIS Movement: 230 mm
Z-AXIS Movement: 440 mm

Turret

Number of turrets: 2

Media

Chip conveyor: Yes

Additional Information

Additional equipment

12-position VDI tool head with all positions or live tools (speed 4500 rpm)
Tool eye (probe) automatic for both turrets
Direct measuring (X-axis) for left and right side
ROBOTIC LOADING SYSTEM
Chip conveyor rear output (link/for steel.material.)
Mist separator
Chuck blowing
Blowing during workpiece transfer

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Maximum swing: 320 mm
Maximum machining length chuck work: 180 mm
Maximum machining length shaft work: 530 mm
Maximum bar size diameter: 51 mm
Rapid traverse x1/x2: 30,500 mm/min
Main spindle c-axis (0. 0001°)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
