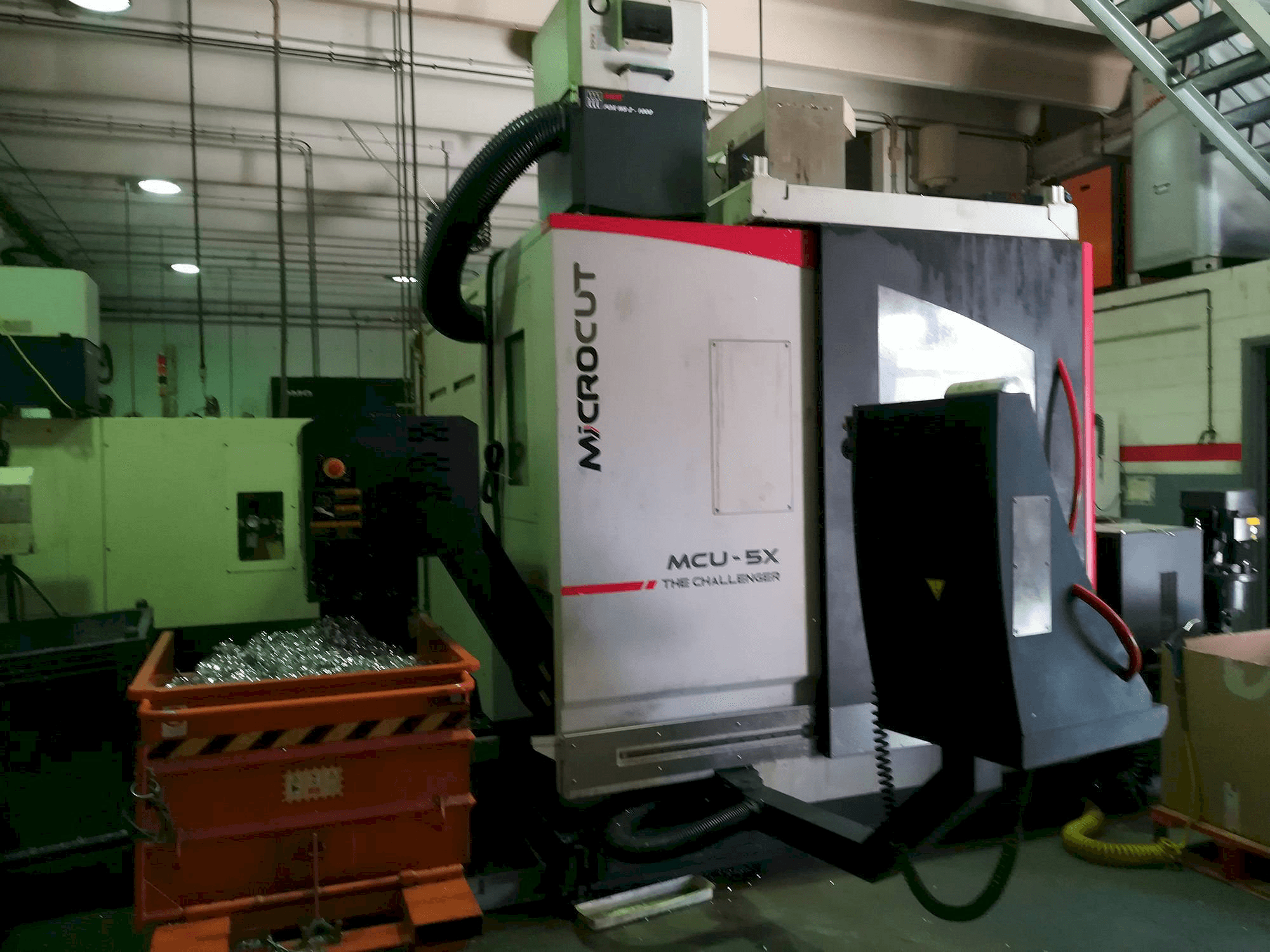

MICROCUT MCU-5X Milling Machine

Show in original language

This MICROCUT MCU-5X Milling Machine was manufactured in the year 2015 in Taiwan. It has a production record of 10131 working hours. It is equipped with a Heidenhain iTNC530 HSCI control unit. This machine counts with a spindle speed up to 24000 rpm. It has a new spindle since August 2019. It includes an air conditioning for electrical cabinet, an hydraulic head cooling unit, and a coolant for cleaning interior-exterior cabin.

Overview

brand: MICROCUT
year: 2015
MODEL: MCU-5X
production hours: 10131
application type: Milling
Location: Spain
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MICROCUT MCU-5X

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530 HSCI

Dimensions

Machine Weight: 8000 kg
Table Length: 600 mm

Movement

X-axis Travel: 600 mm
Y-axis Travel: 500 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Speed: 24000 RPM
Tool Stations: 24

Additional Information

Machine Benefits

Technical Machine Benefits

New spindle in august 2019
Motor power: 20/ 52. 5 kw (heidenhain) - 15/ 18. 5 kw (fanuc) -20/ 25 kw (built in spindle)
5 axes simultaneous machining center
Internal cooling 70 bar
Renishaw probe 0 piece
Random tool changer
Maximum tool length 295mm
32-tool tool magazine
Air conditioning for electrical cabinet
Hydraulic head cooling unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
