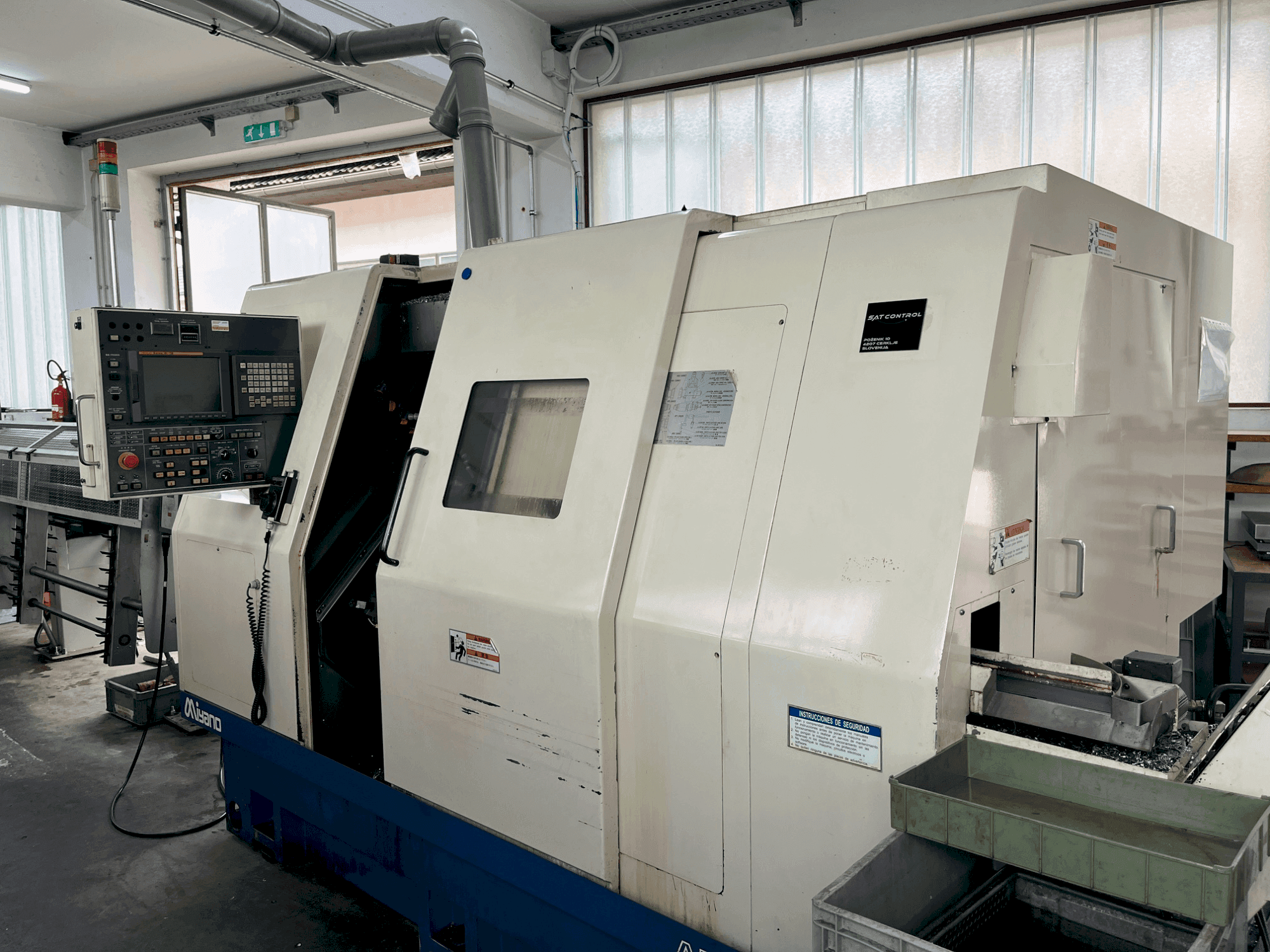

Front view of Miyano ABX-51TH2  machine

Miyano - ABX-51TH2SI-TUR-MIY-2009-00001

119,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This 9-axis Miyano ABX-51TH2 was manufactured in 2009, featuring a FANUC Series 16i-TB control system. It offers a turning diameter of 125mm and supports a bar diameter of 51mm. Equipped with a chuck diameter of 150mm, the machine provides a spindle speed of 5000 rpm. It includes a main spindle motor of 15 kW and a sub spindle motor of 11 kW, with dual 12-station toolholders. Reach out for further details regarding this swiss type turning machine.


  • brand: Miyano
  • year: 2009
  • MODEL: ABX-51TH2
  • application type: Turning
  • Location: Slovenia
  • machine type: Swiss Type Turning
  • control unit brand: FANUC

Technical Information - Miyano ABX-51TH2

Control Unit

  • Brand: FANUC
  • Model: Series 16i-TB

Main drive

  • Spindle speed range: 5000 rpm 1/MIN
  • Number of axis: 9

    Additional Equipment

    • - Automatic bar feeder: LNS SPRINT 552-565 (2009)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle motor power: main spindle 15 kw, sub spindle 11 kw
        • - X-axis: x-1, x-2, x-3 axis travels 190 mm each
        • - Y-axis: y-1, y-3 axis travels +/- 40 mm
        • - Z-axis: z-1 axis 257 mm, z-2 axis 500 mm, z-3 axis 650mm
        • - High spindle speed, multiple axes for complex operations, powerful spindle motors
      • Qualitative Machine Benefits:
        • - High precision with fanuc control, increased versatility and productivity with sub-spindle and multiple tool stations

      Extra information

      • - Turning diameter: 125 mm Chuck diameter: 150 mm Bar pitch: 52 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
