MT Cut V110H Vertical Machining Center

Show in original language

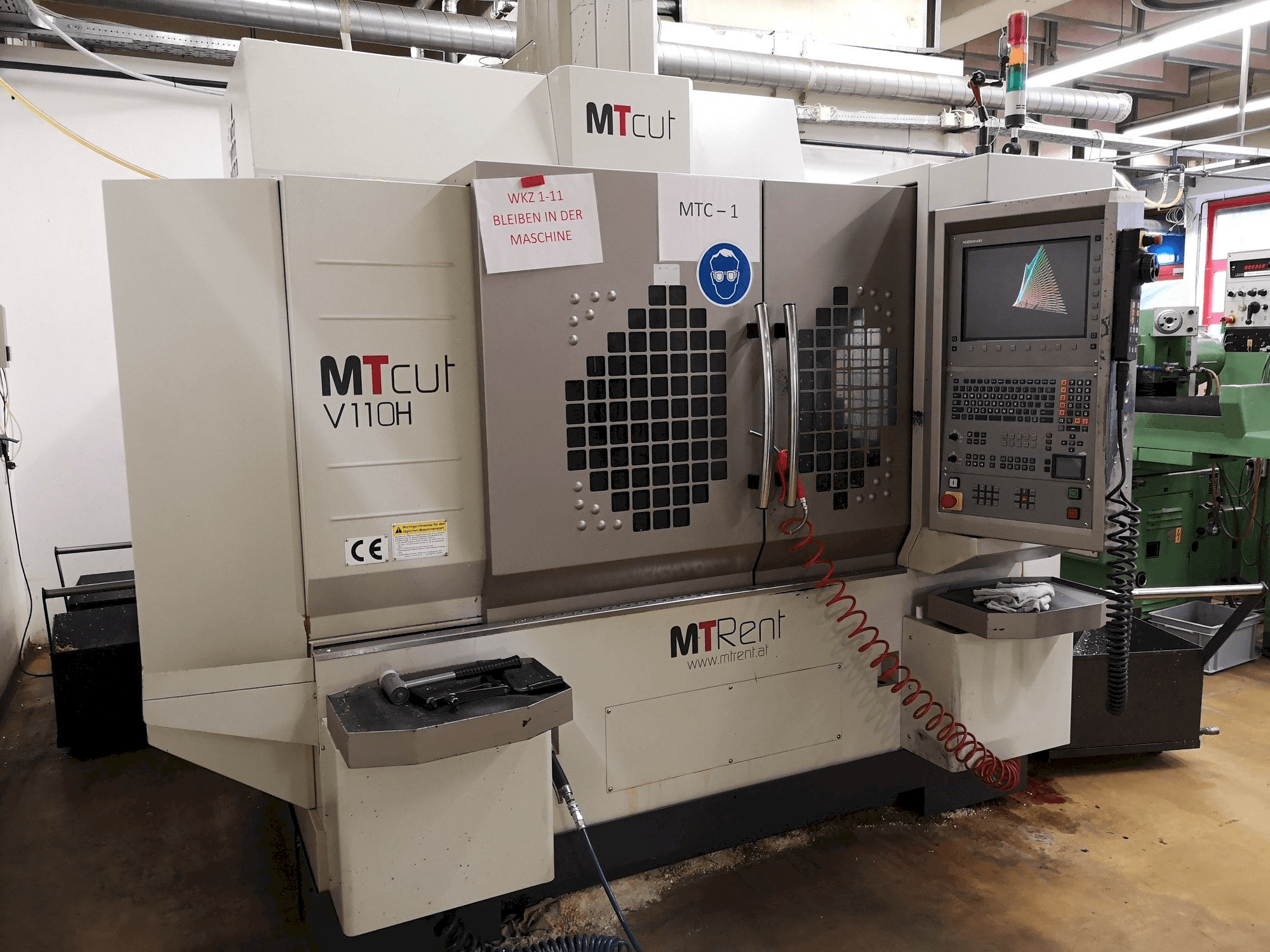

This MT Cut V110H Vertical Machining Center was built in Taiwan in the year 2007. It is equipped with a Heidenhain control unit. Its BB40 spindle can operate with a speed up to 12000 rpm.

Overview

brand: MTcut
year: 2007
MODEL: Cut V110H
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MTcut Cut V110H

General Data

Measurements width: 3160 mm
Measurements depth: 2870 mm
Measurements height: 3000 mm
Machine weight: 8500 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 1 - 12000 1/MIN

Movement

X-AXIS Movement: 1100 mm
X-AXIS Rapid traverse: 32m/min
Y-AXIS Movement: 610 mm
Y-AXIS Rapid traverse: 32m/min
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 32m/min

Table

Outer length: 1250 mm
Outer width: 610 mm
TSlots size: 18mm x 5 x 100mm
Table load: 1000 kg

Tools

Type of tool holder: BT40/CAT40/DIN40/BBT40

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle diameter Ø 70mm
Positioning accuracy 0. 005mm
Repeat accuracy x. Y. And z-axis 0,003mm
Distance spindle nose - work table 120 - 730mm
Distance spindle centre to stand 668mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
