➤ Used Neway VM-1150S For Sale | gindumac.com

Show in original language

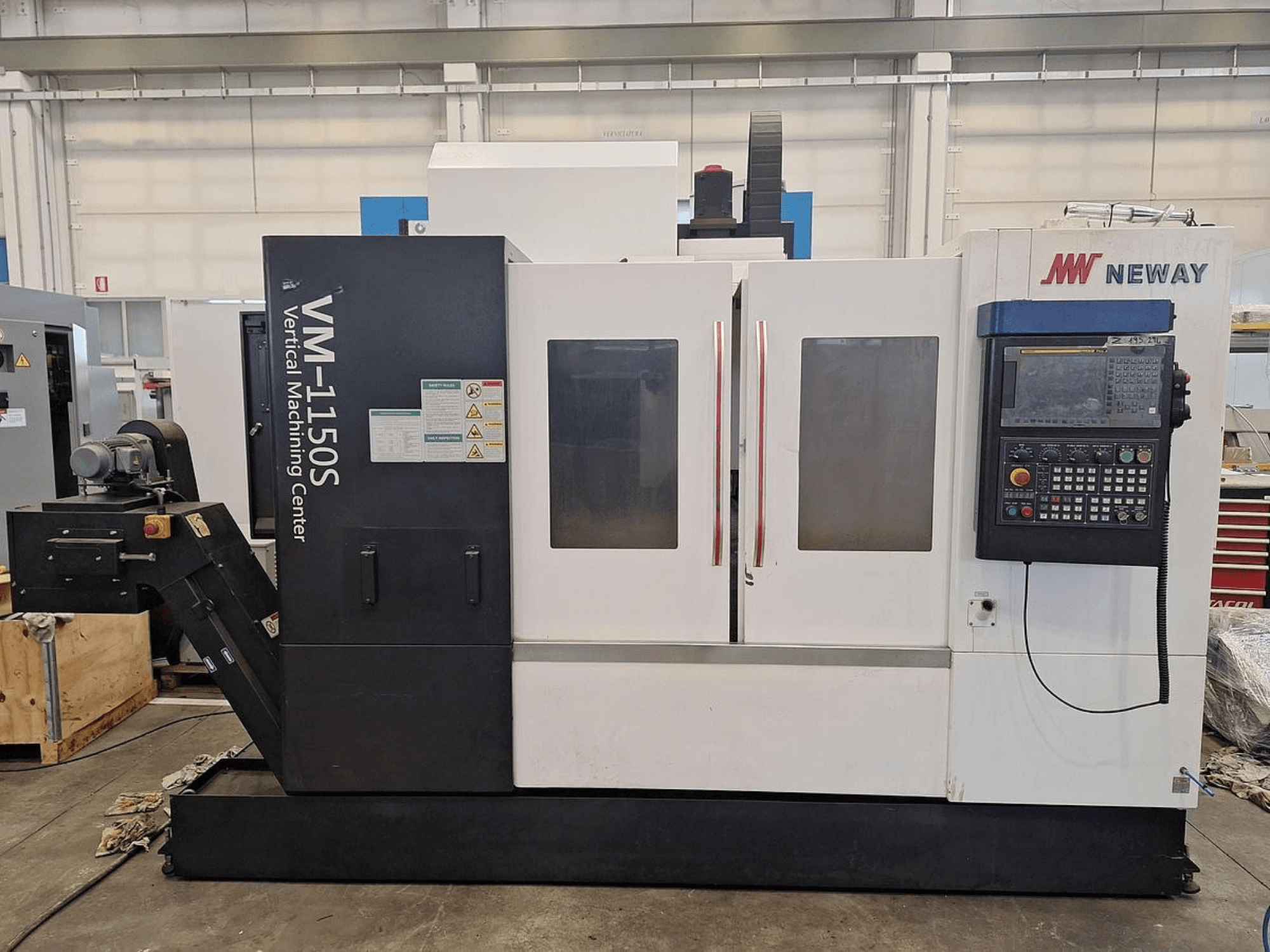

This 3-axis Neway VM-1150S was manufactured in 2019. It features an X-axis travel of 1000 mm, Y-axis travel of 550 mm, and Z-axis travel of 560 mm. The machine includes a robust table size of 1100 x 550 mm and a maximum table load of 700 kg. If you are looking to get high-quality machining capabilities, consider the Neway VM-1150S vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Neway
year: 2019
MODEL: VM-1150S
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Neway VM-1150S

Control Unit

Control Brand: FANUC
Control Model: Oi-MF Plus

Dimensions

Machine Height: 2700 mm
Machine Length: 2900 mm
Machine Weight: 5800 kg
Machine Width: 2710 mm
Table Load: 700 kg

Movement

Number of Axes: 3
X-axis Travel: 1000 mm
Y-axis Travel: 550 mm
Z-axis Travel: 560 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Power: 15 kW
Spindle Speed: 10000 RPM
Taper Size: BT 40
Tool Stations: 24

Additional Information

Table size: 1100 x 550 mm
Distance spindle nose to table: 120–680 mm
Rapid feed (X/Y/Z): 36 m/min
Coolant through spindle: 20 bar
Tool magazine capacity: 24 positions
Max tool diameter: 80 mm
Max tool length: 300 mm

Additional equipment

Chip conveyor
Remote electronic handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
