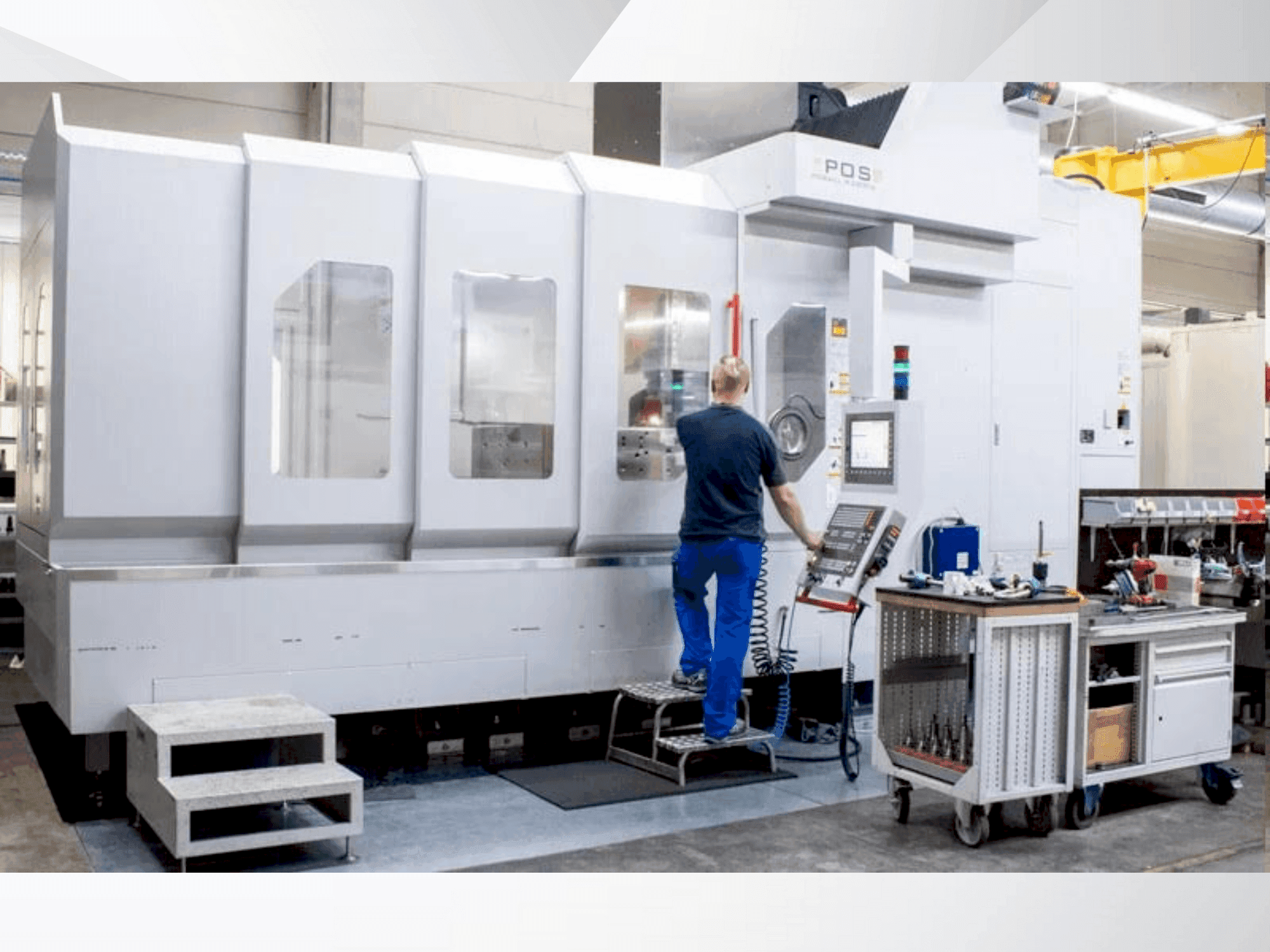

This 5-axis POSmill H2200U universal machining center was manufactured in 2022. It features a Kessler swivelling head, integrated rotary table, and a high-power milling spindle reaching 20,000 rpm. Equipped with a Heidenhain TNG 640 control system, 90-fold HSK 63 tool changer, and internal coolant supply at 50 bar. Ideal for complex machining tasks. Contact us for further details regarding this universal machining center.
Overview
- brand: POSmill
- year: 2022
- MODEL: H2200U
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: Heidenhain
Technical Information - POSmill H2200U
Control Unit
- Brand: Heidenhain
- Model: TNG 640
Main drive
- Spindle speed range: 20000 1/MIN
- Tool taper: HSK 63
- Number of axis: 5
Movement
- X-AXIS Movement: 2200 MM
- Y-AXIS Movement: 1400 MM
- Z-AXIS Movement: 1000 MM
Media
- Internal cooling: Yes
- Cooling pressure: 50 bar
Additional Information
- Technical Machine Benefits:
- - Spindle cooler
- - Spray ring on the spindle
- - Oil/coolant separator
- - Mobile electronic handwheel
- - Kessler swivelling head simultaneous
- - Kessler-integrated rotary table 1200 mm
- - External hinged belt chip conveyor
- - Preparation for measuring system
- - Renishaw rmp600 workpiece measuring system
- - Pos dom collision module
- Qualitative Machine Benefits:
- - Pos kinematic module incl. Reference ball
- - Tool measurement via blum-lase
- - Internal coolant supply 50 bar with belt filter unit Air through the spindle
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
