- Used Erosion machine SODICK ALC400P (2020) for sale | GINDUMAC.COM

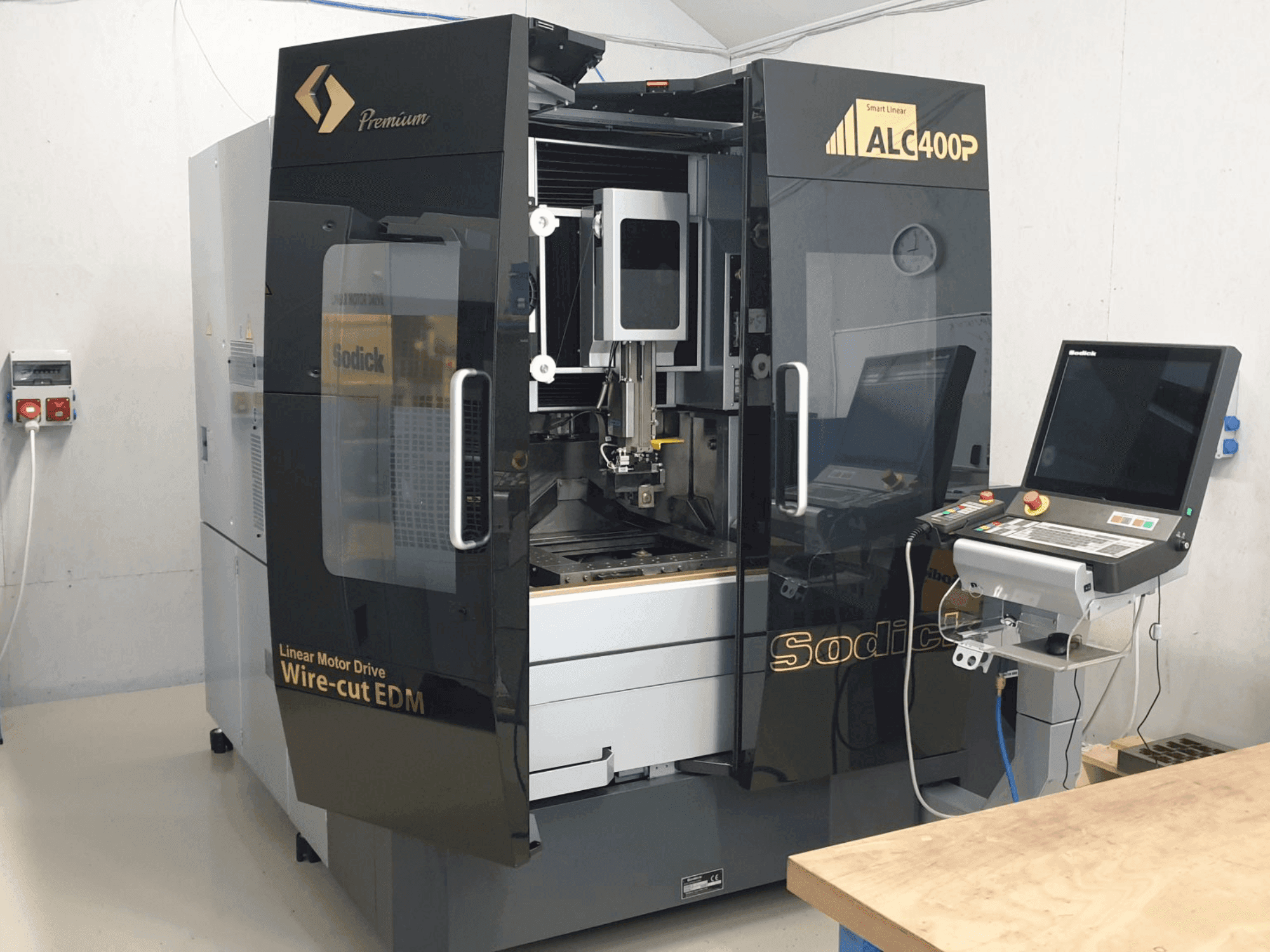

This SODICK ALC400P Erosion machine was manufactured in the year 2020 and has 3450 operating hours. It is equipped with a Sodick Motion Controller. The machine has a ceramic work surface. Contact us anytime for further questions.
Overview
- brand: Sodick
- year: 2020
- MODEL: SODICK ALC400P
- production hours: 3450
- application type: EDM
- Location: Hungary
- machine type: Wire EDM Machine
- availability: Sold
Technical Information - Sodick SODICK ALC400P
General Data
- Measurements width: 2115 mm
- Measurements depth: 2230 MM
- Measurements height: 2500 mm
- Machine weight: 3400 kg
Controller
- Brand: Sodick
- Model: Motion
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 250 mm
Additional Information
- Technical Machine Benefits:
- - The world's only 10-year positioning warranty
- - The smart linear - smart linear technology
- - Ceramic work surface
- - U/v axes: 150 x 150 mm
- - Max workpiece weight: 500 kg
- - Internal dimensions of workbox (w x d x w, mm): 850 x 610
- - Wire sizes (mm): Ø 0. 10~ Ø 0. 30
- - Wire tension (n): 3~23
- - Max wire speed (mm/sec): 420
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
