Tongtai TMV-710A

Photo Gallery

Tongtai - TMV-710AIT-MIL-TON-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

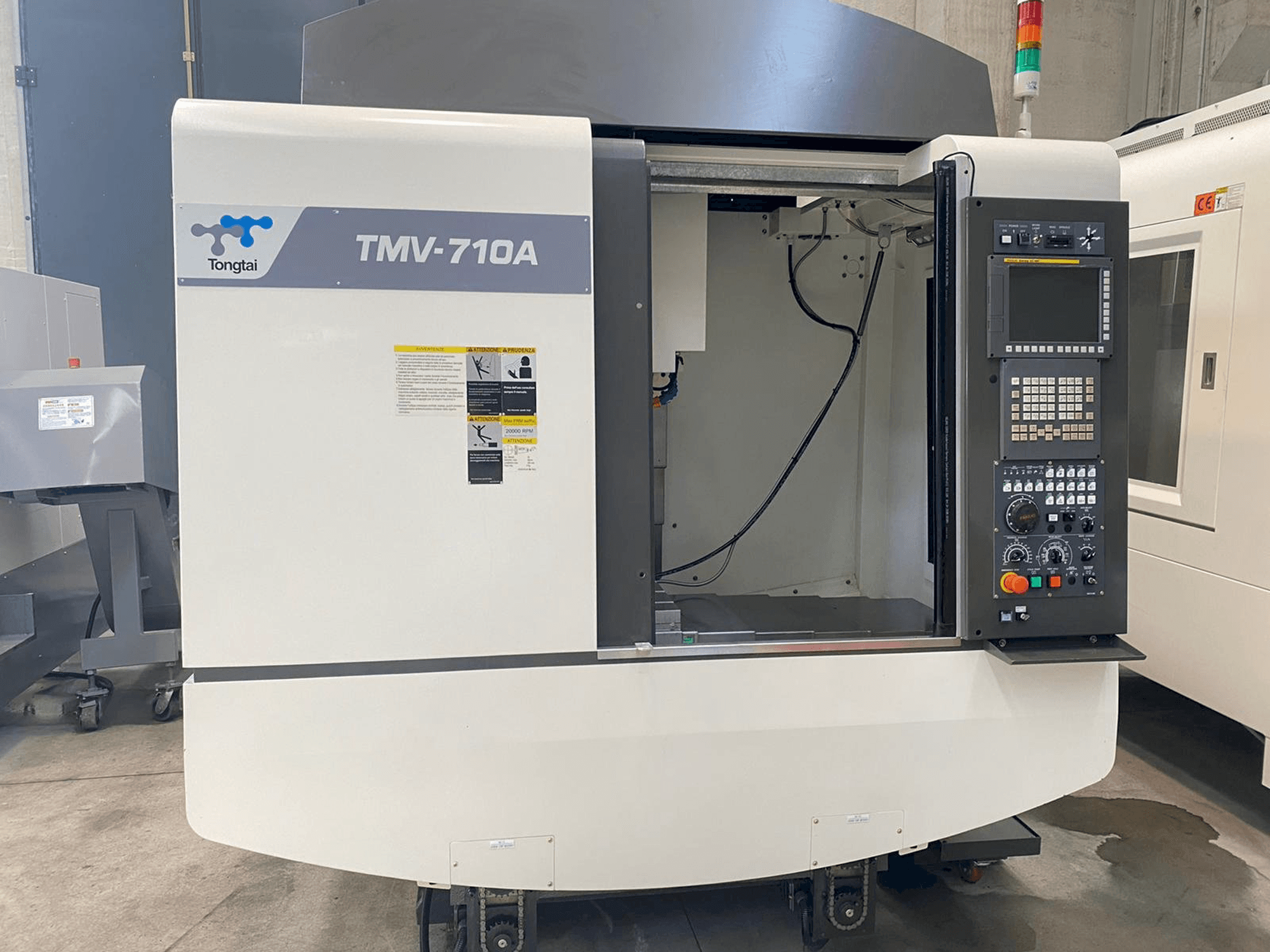

Tongtai TMV-710A Vertical Machining Center

Show in original language

This Tongtai TMV-710A Vertical Machining Center was manufacture in 2016 in Taiwan. It has a record of only 510 working hours. It is operated through a Fanuc Series 0i-MF control unit. This 3 axis machine works with a spindle speed up to 24000. It includes chip conveyor.

Overview

brand: Tongtai
year: 2016
MODEL: TMV-710A
production hours: 510
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Tongtai TMV-710A

General Data

Measurements width: 2400 mm
Measurements depth: 2000 mm
Measurements height: 2450 mm
Machine weight: 3300 mm KG

Control Unit

Model: Series 0i-MF
Brand: FANUC

Main drive

Spindle speed range: 24000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 710 mm
X-AXIS Rapid traverse: 48 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 48 m/min
Z-AXIS Movement: 350 mm
Z-AXIS Rapid traverse: 48 m/min

Table

Outer length: 850 mm
Outer width: 410 mm
Table load: 300 kg

Media

Main electronic connection: 380 v / 50 Hz

Additional Information

Additional equipment

Chip conveyor

Machine Benefits

Technical Machine Benefits

Spindle nose to table 200-550 mm
Tool turret 20 positions
Tool shank bt-30
Max. Tool diameter Ø 68 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
