TRAUB - TVC 400 PHR-MIL-TRA-1992-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- TRAUB TVC 400 P Vertical Machining Center

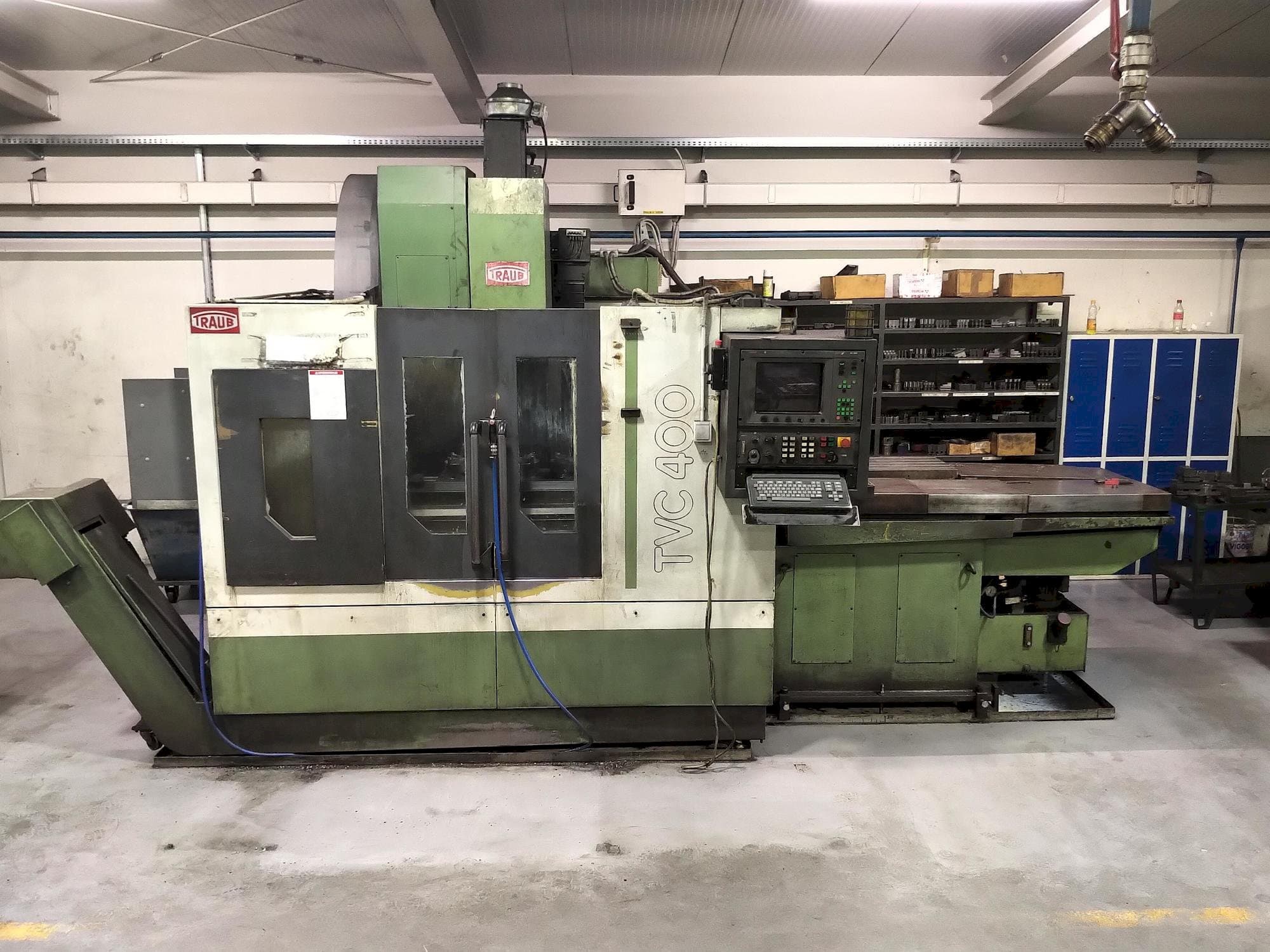

This TRAUB TVC 400 P Vertical Machining Center, produced in Italy in 1992. It has a production history of approximately 47000 working hours. It is equipped with a Bosch CC200 control unit. This machine can work with a spindles up to 6000 rpm. This model comes with a pallet changer and 2 pallets. During this past, this TRAUB has mainly worked with bronze, cast iron and steel.
Overview
- brand: TRAUB
- year: 1992
- MODEL: TVC 400 P
- production hours: 47000
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: BOSCH
Technical Information - TRAUB TVC 400 P
Control Unit
- Control Brand: BOSCH
- Control Model: CC200
Dimensions
- Machine Depth: 2440 mm
- Machine Height: 2804 mm
- Machine Weight: 7500 kg
- Table Length: 1000 mm
- Table Width: 400 mm
Movement
- X-axis Travel: 700 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 650 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 24
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Pallet changer, 2 pallets
Machine History
Industries
Tooling, glass industry
End product
Moulds for glass
Material type
Bronze, cast iron, steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
