This 5-axis TRUMPF TruBend 5170 was manufactured in 2016. It features a maximum press force of 1700 kN and a stroke length of 445 mm, making it suitable for various bending applications. The machine has a weight of 12,200 kg and operates at a maximum pressure of 300 bar. If you are looking to get high-quality bending capabilities, consider the TRUMPF TruBend 5170 press brake we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2016
- MODEL: TruBend 5170
- production hours: 4868
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - TRUMPF TruBend 5170
Dimensions
- Machine Weight: 12200 kg
Movement
- Number of Axes: 5
Technical Specification
- Bending Length: 3230 mm
- Max. Stroke: 445 mm
- Pressing Force: 1700 Kn
Additional Information
Operating pressure: max. 300 bar
Overrun time: max. 95 ms
Overrun distance: max. 10.0 mm
Safety distance: min. 190.0 mm
Rated current: 40.0 A
Voltage: 3x400 V
Frequency: 50 Hz
Connected load: 28.0 kVA
Control voltage: 24 V
Compressed air connection: 6.0 bar
Machine on time: 13,000 h
Hydraulic runtime: 5,000 h
Press beam cycles: 41,000 h
Crowning cycles: 15,000 h
Additional equipment
Optional: Many tools available

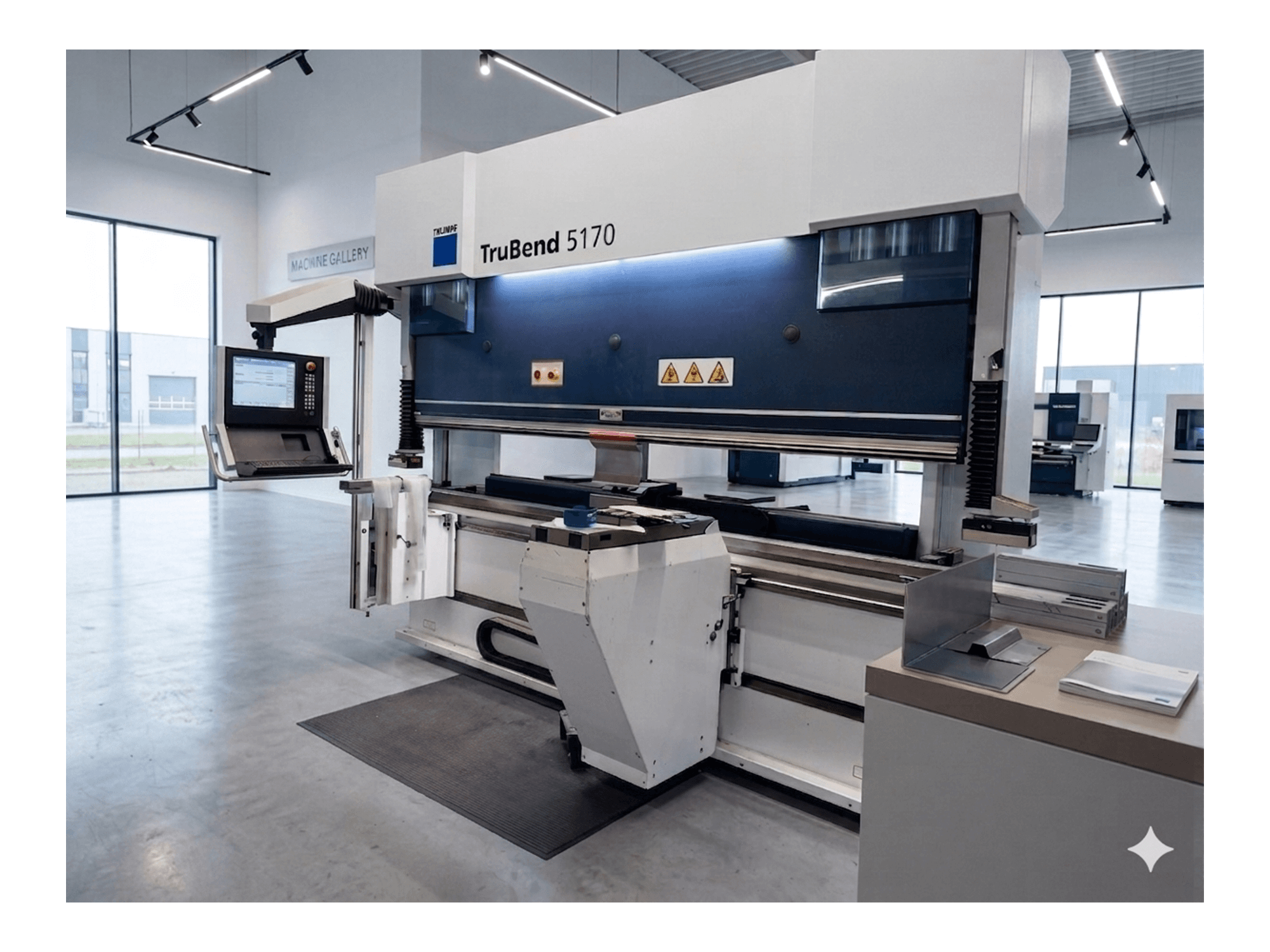

The picture is AI generated. Real pictures on demand
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
