TRUMPF Trumatic L3050
TRUMPF - Trumatic L3050
2005
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Used Laser cutting machine TRUMPF Trumatic L3050 - 2005 - for sale | gindumac.com

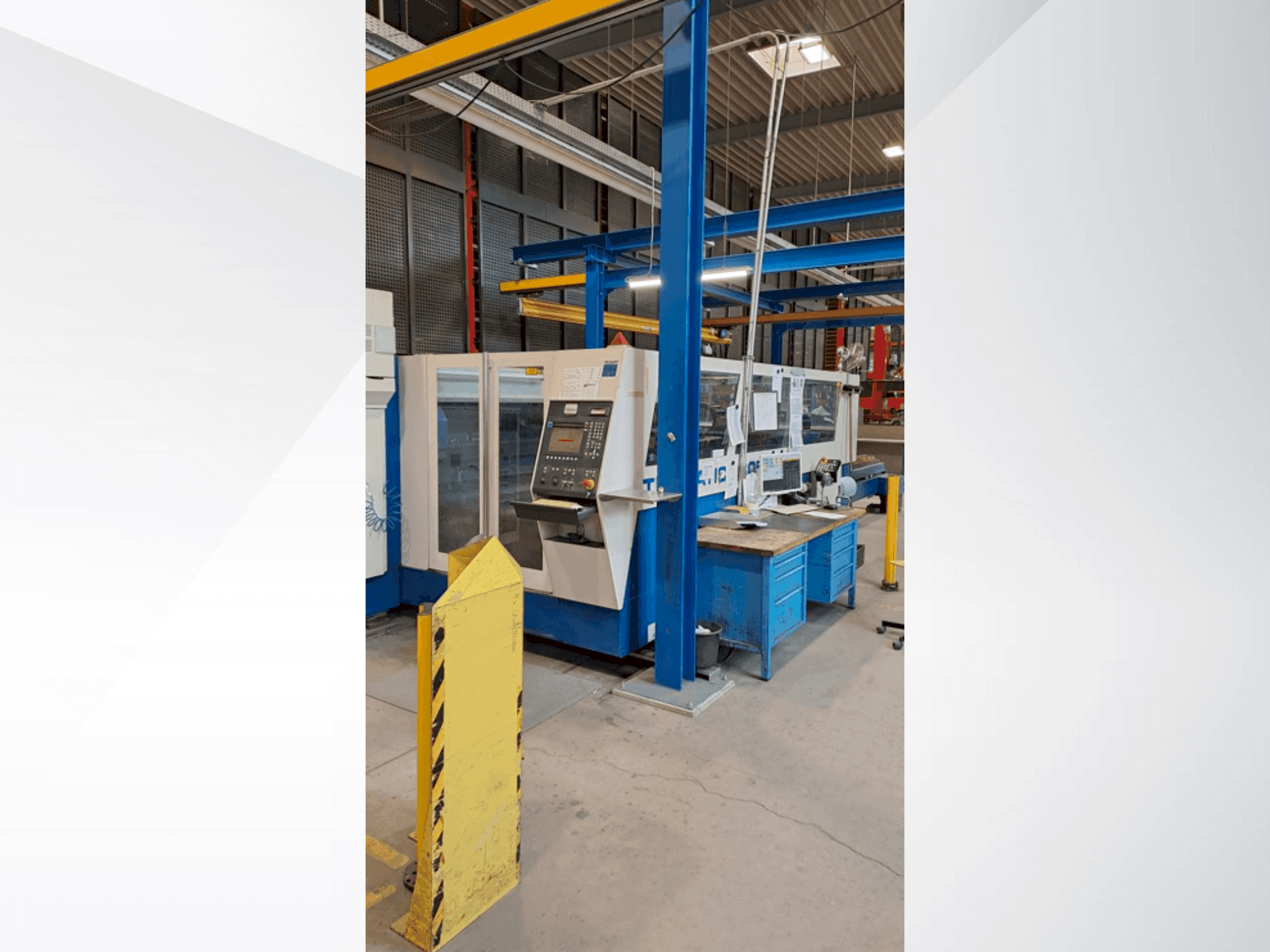

This 3-axis laser cutting machine was manufactured in 2005. The TRUMPF Trumatic L3050 is equipped with a CO2 laser TLF 5000, capable of high-frequency excited operations, ensuring precise and high-quality cuts. It boasts an extensive working area of 3000 x 1500 x 100 mm, which is complemented by advanced features like HI-LAS high-pressure cutting, PMS plasma sensors, and automatic pallet changer for enhanced productivity. The machine utilizes a Sinumerik 840D control unit and includes several laser cutting heads with various lens sizes to accommodate different material thicknesses and precision requirements. Contact us for further information.
Overview
- brand: TRUMPF
- year: 2005
- MODEL: Trumatic L3050
- application type: Laser Cutting
- Location: Germany
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: Siemens
- GINDUMAC ID: DE-LAS-TRU-2005-00007
Technical Information
Control Unit
- Brand: Siemens
- Model: Sinumerik 840D
Main drive
- Laserpower: 5 KW
- Laser type: C02
- Number of axis: 3
Additional Information
- Technical Machine Benefits:
- - Working area 3000 x 1500 x 100mm
- - Co2 laser tlf 5000 high frequency excited
- - Cooling unit
- - Automatic pallet changer
- - Hi-las high-pressure cutting
- - Pms plasma sensors
- - Fast processing with sprintlas
- - Laser cutting head with 5" lens and laser cutting head with 7. 5" lens
- - Pcs process control system
- - Position laser diode
- Qualitative Machine Benefits:
- - Workshop programming tops 100 lite
- - 3. 5" floppy disk drive
- - Contourlas for the production of small holes
- - Microweld
- - Automatic focus position adjustment autolas plus
- - Laser cutting head with 3. 75" lens for high-speed cutting
- - Laser cutting head with 9" lens for thick sheet metal processing
- - Extended swivel range lm to 180°
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
