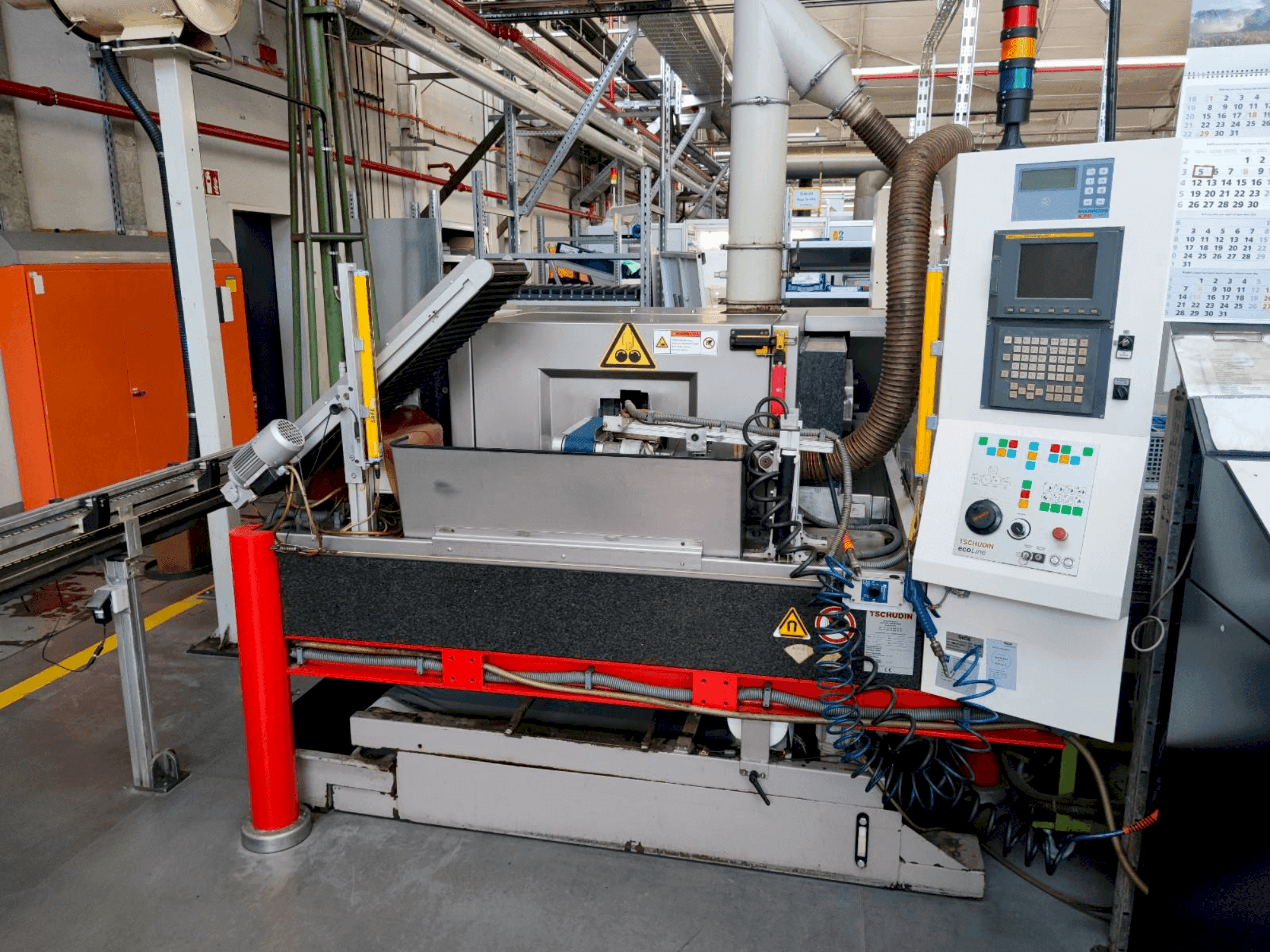

This TSCHUDIN ecoLINE 400 Centerless Grinding Machine was manufactured in 2004 in Switzerland. It is designed for the highest possible process stability and machine reliability. The machine is special for machining workpieces with diameters up to 100 mm. It is operated with a FANUC 21i-MB control. Due to a project it was extended with a customized system for automated loading and unloading. In addition there are conveyor belts controlled via PLC control Tschudin. The machine is still under power and can be inspected at any time.
Overview
- brand: TSCHUDIN
- year: 2004
- MODEL: ecoLINE 400
- application type: Grinding
- Location: Germany
- machine type: Grinding machines
- availability: Immediately
- control unit brand: FANUC
- GINDUMAC ID: DE-GRI-TSC-2004-00001
Technical Information
General Data
- Measurements width: 2000 mm
- Measurements depth: 2400 mm
- Measurements height: 1900 mm
- Machine weight: approx. 6000 kg
Control Unit
- Brand: FANUC
- Model: 21i-MB
Workpiece
- Workpiece drm: 1.5 - 100 mm
Media
- Main electronic connection: 3x400 V / 50 Hz +N+E
Additional Equipment
- - Conveyor belts (controlled via Tschudin PLC control system)
Additional Information
- Technical Machine Benefits:
- - Throughfeed grinding // workpiece diameter: 1. 5-100 mm
- - Plunge grinding // workpiece diameter: 1. 5-100 mm, maximum sanding length: 250 mm
- - Grinding wheel // max. Outer diameter: 400 mm, inner diameter: 203. 2 mm, max. Width: 250 mm, peripheral speed (max. 8600 rpm): 50 m/s, drive power/ with balancing device: 11 kw
- - Regulating disk // max. Outer diameter: 225 mm, inner diameter: 127 mm, max. Width: 250 mm, speed range: 0-265 rpm, max. Tilt angle: ±5°, drive power: 3. 7 kw
- Qualitative Machine Benefits:
- - Ideal for cylindrical grinding in series production
- - Partially customized as part of a project: equipped with a system for automated loading and unloading.
- - Serviced by the operator's maintenance department in accordance with the manufacturer's maintenance specifications
- - Control voltage: 24 V DC // Connected load: 25 kVA
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
