➤ Used TSCHUDIN ecoLine 400 For Sale | gindumac.com

Show in original language

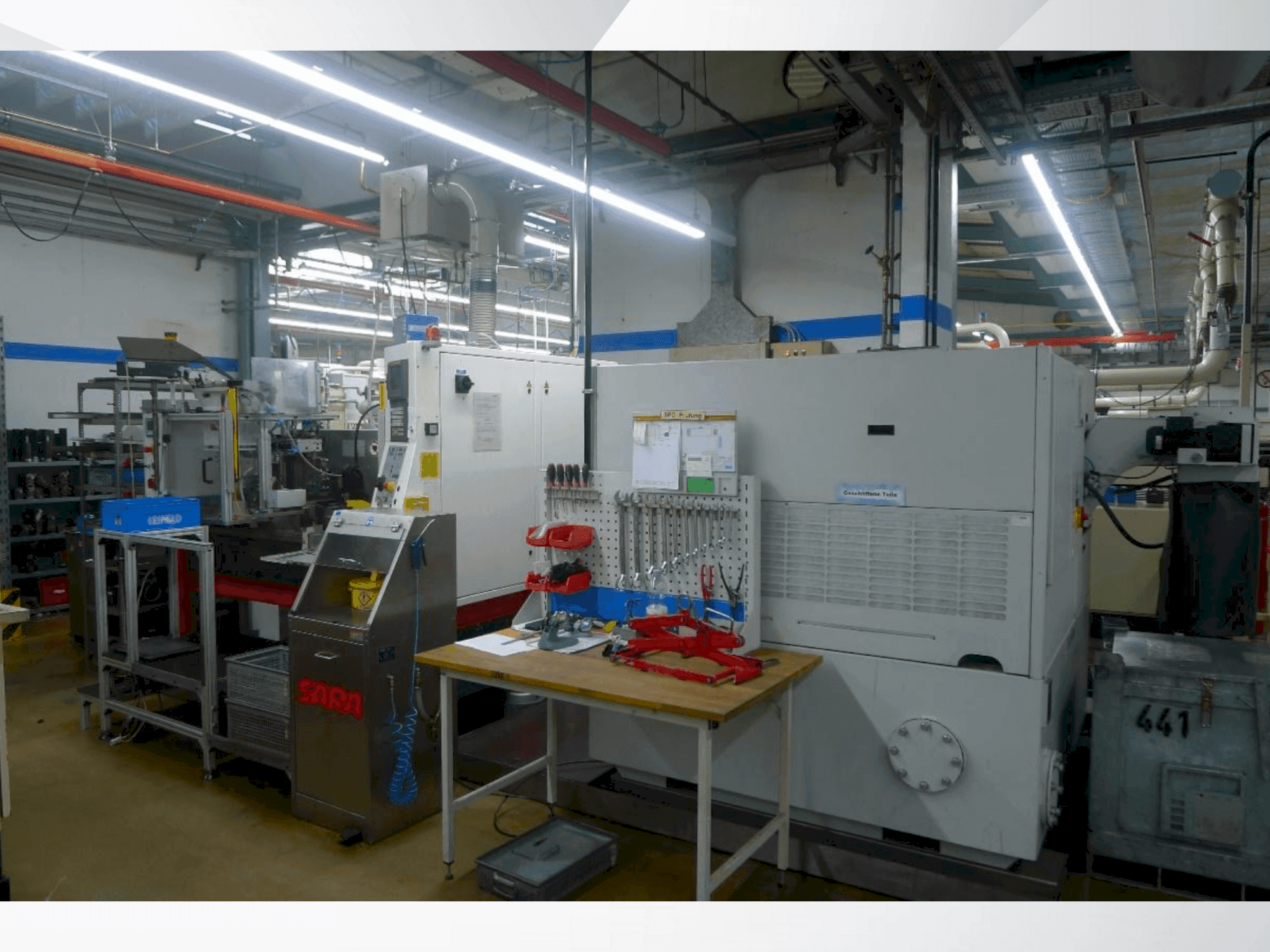

This TSCHUDIN ecoLine 400 centerless grinding machine was manufactured in 2013. It features a Fanuc 21i-MB control system, a grinding wheel with a max outer diameter of 400 mm, and a regulating wheel with a speed range of 0-265 rpm. Additional attachments include a Kraft & Bauer fire extinguishing system and a Knoll microfilter. Consider the opportunity to buy this TSCHUDIN ecoLine 400 centerless grinding machine. Contact us for more information about this machine.

Overview

brand: TSCHUDIN
year: 2013
MODEL: ecoLine 400
application type: Grinding
Location: Germany
machine type: Centerless Grinding Machine
control unit brand: FANUC

Technical Information - TSCHUDIN ecoLine 400

Control Unit

Brand: FANUC
Model: 21i-MB

Additional Equipment

- Kraft & Bauer Fire extinguishing system, Type FB703S-UV3-TFM70°/KLA 6-S-MV / Knoll microfilter, Type Micro Pur 240 F / Streuli lifting station, Type SHSRT300-TL142/180

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): 2000 x 2400 x 1900 mm / weight (kg): 6000 kg
- - Through-feed grinding working area: 1. 5 – 100 mm workpiece diameter / plunge grinding working area: 1. 5 – 100 mm workpiece diameter / maximum grinding length: 250 mm
- - Max. Outer diameter: 400 mm / inner diameter: 203. 2 mm / max. Width: 250 mm / peripheral speed: 50 m/s / drive power: 11 kw (with balancing device)
- - Max. Outer diameter: 225 mm / inner diameter: 127 mm / max. Width: 250 mm / speed range: 0-265 rpm / max. Inclination angle: +5/+5° / drive power: 3. 7 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
