VHF - CAM 1020 PremiumAT-MIL-VHF-2016-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used VHF CAM 1020 Premium For Sale | gindumac.com

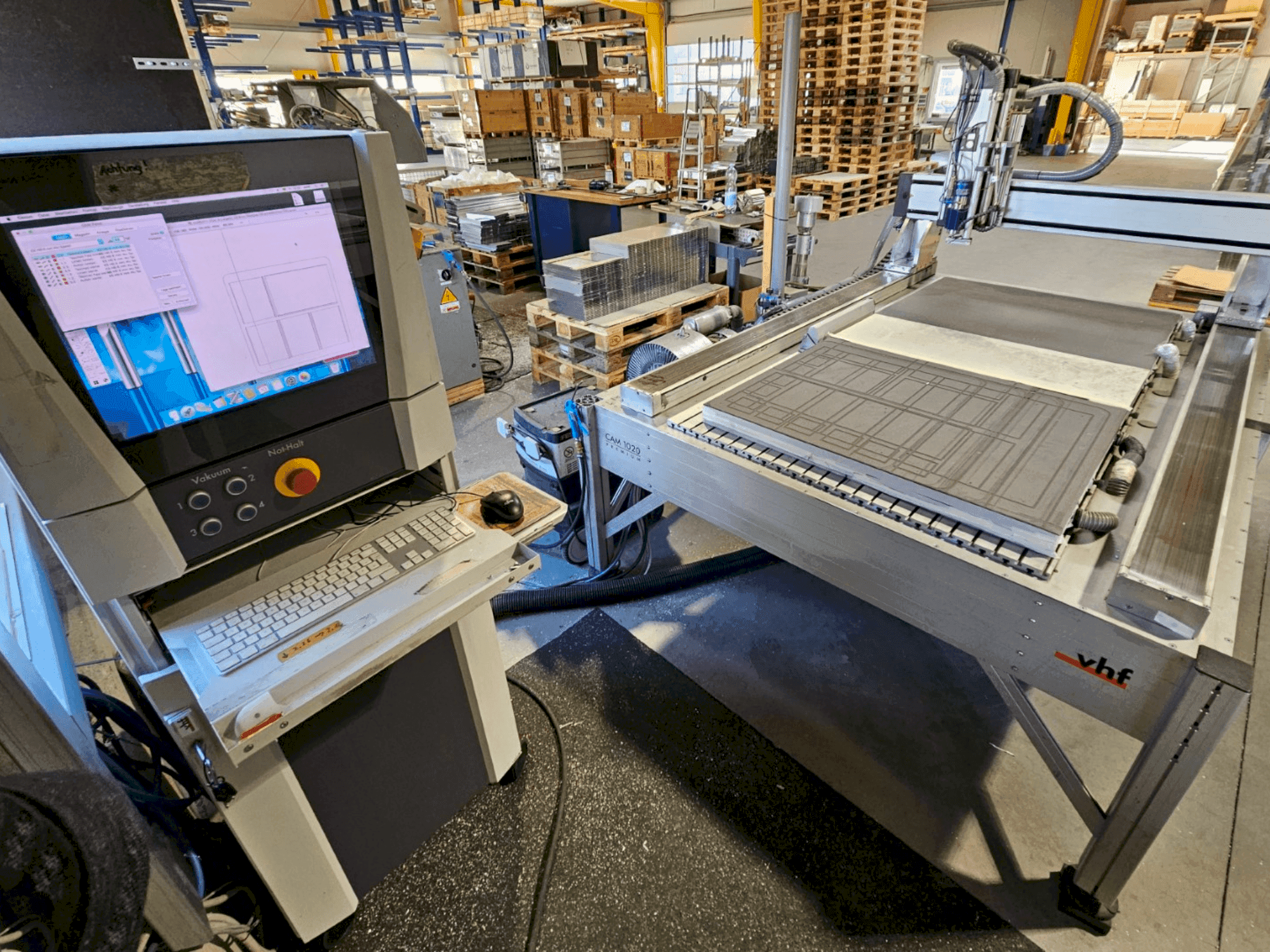

This 4-axis VHF CAM 1020 Premium was manufactured in 2016, featuring a robust four-axis flatbed mechanism with a traverse range of 1050x2010mm and a clamping range of 1100x2300mm. It includes a high-performance SF spindle SF 1300P capable of speeds up to 60,000 rpm and a tool changing station for 9 tools. Ideal for precision CNC milling, consider the opportunity to buy this VHF CAM 1020 Premium CNC milling machine. Contact us for more information about this machine.
Overview
- brand: VHF
- year: 2016
- MODEL: CAM 1020 Premium
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: MicroStep
Technical Information - VHF CAM 1020 Premium
Control Unit
- Control Brand: MicroStep
- Control Model: CNC 980+
Dimensions
- Machine Weight: 600 kg
Movement
- Number of Axes: 4
Additional Information
Machine Benefits
Technical Machine Benefits
- X/y traverse range: 1050x2010mm
- X/y clamping range: 1100x2300mm
- T-slot table
- Special vacuum table 2000x1000mm with 8 vacuum modules 500x500x63mm
- Sf 09/40 tool changing station for 9 tools with stop ring up to 6mm shank diameter
- Pneum. Protective cover for ww-sh-sf 09/40
Extra Information
Extra Information Estimated production hours: Approx. 2500 hours Separate emergency stop button Complete cable set Base frame Passage: 300mm Stroke: 290mm Bridge reinforcement CAM 10xx Axle cover CAM xx20 SF spindle SF 1300P: Continuous power: 1300W, max. output power: 2500W, speeds up to 60000 rpm, clamping range 2-6mm Pneumatic clamping cylinder Frequency inverter SFU0303(401D) Compressor cooling unit Spindle carrier with cooling fins Collets: 3, 4, and 6mm Universal dust extraction device with earthed suction pipe without suction unit Minimum quantity lubrication MKS-4L: finely adjustable, electronically controlled system with two nozzles Automatic Z-adjustment Control panel System cabinet for control components CENON CAM software
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
