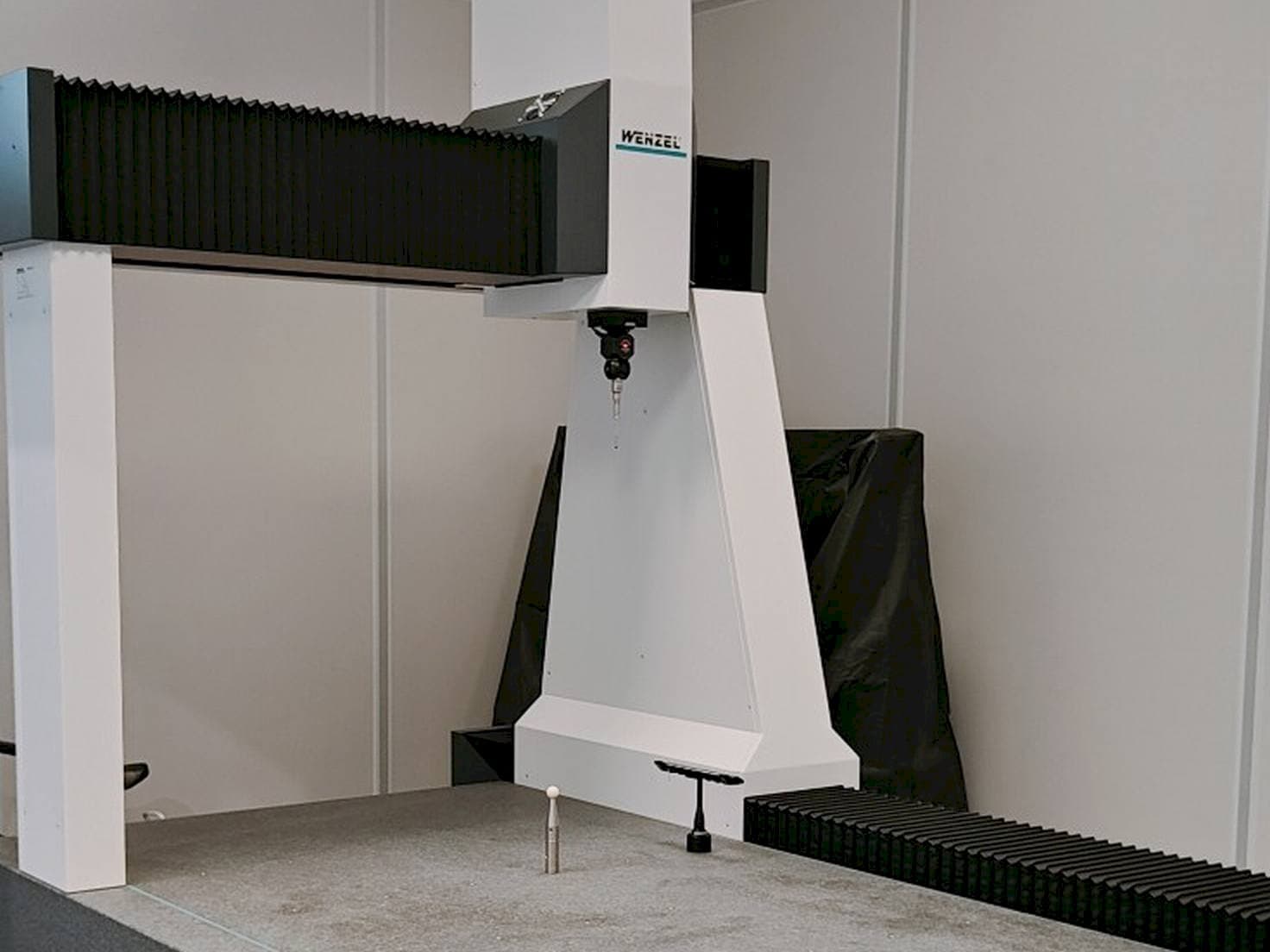

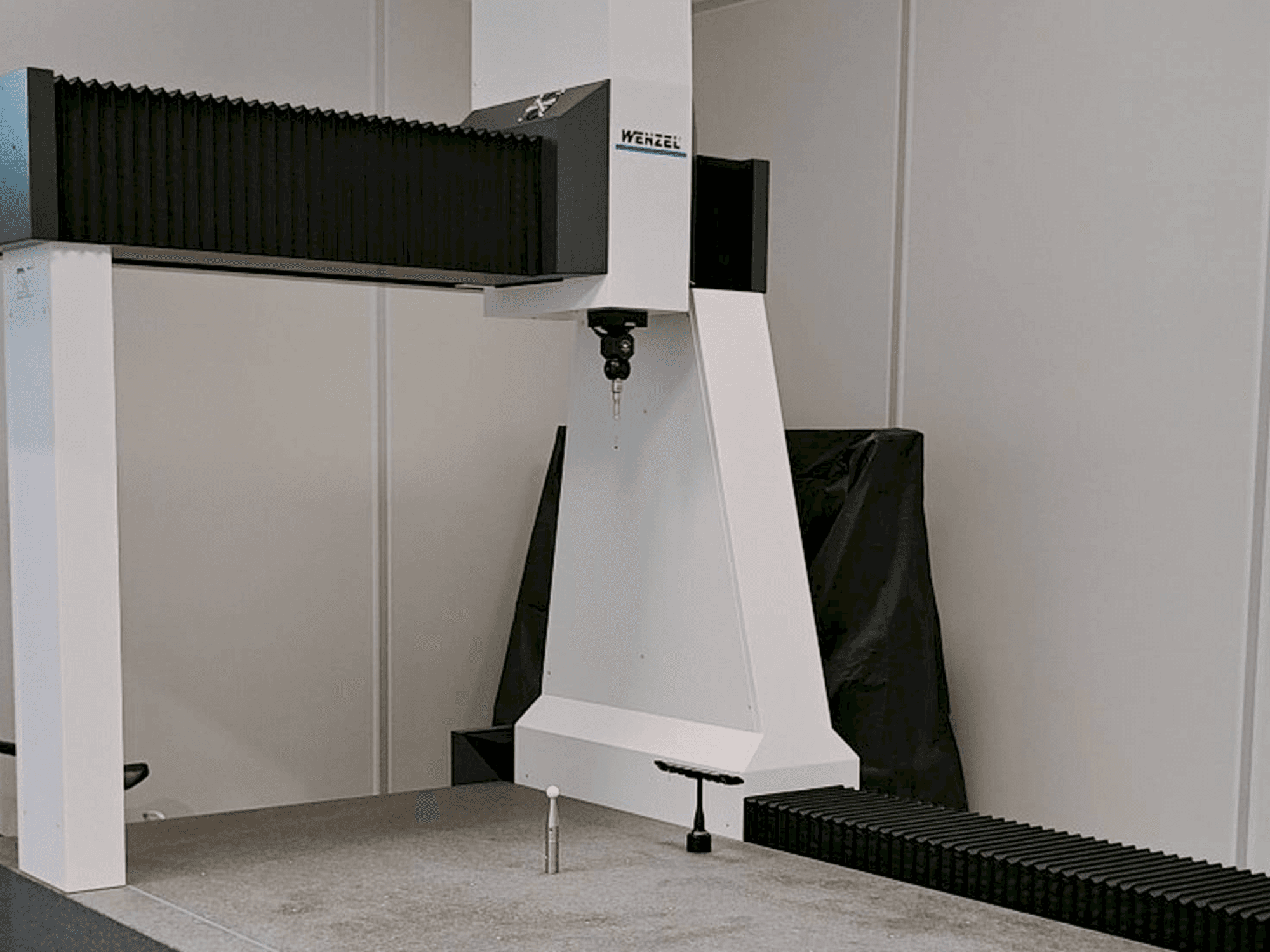

WENZEL LH 1010 Coordinate Measuring Machine

Show in original language

This WENZEL LH 1010 Coordinate Measuring Machine was made in the year 2021 in Germany. The machine has an accuracy of measurement up to ± 0.005 mm.

Overview

brand: Wenzel
year: 2021
MODEL: LH 1010
application type: Measuring
Location: France
machine type: Measuring Machine
availability: Sold
GINDUMAC ID: FR-MEA-WEN-2021-00001

Technical Information

General Data

Measurements width: 3600 mm
Measurements depth: 1875 mm
Measurements height: 3460 mm
Machine weight: 6600 kg

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 3050 mm
Outer width: 1310 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Accuracy of measurement: up to ± 0. 005 mm
- - Permissible part weight: 2400 kg
- - Useable table surface: 1310 x 3050 mm
- - Permissible part weight: 2400 kg
- - Options included: active damping software: metrosoft quartis r21-1 ht400 control part with standard cable wpc2040/3 3-axis controller tp200 stylus module ph10m-plus recording head scr200 interchangeable magazine phc10-3plus +pi 200 card
- - List of software modules included: step (cad converter) vda-fs (cad converter) iges (cad converter) emd ([prev. Q-das] export measuring data) impex-elem (import export elements) curve (curve measurement) surf (surf measurement) dmis (dmis functionality) iph (indexing probe head) prc (probe changer)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
