Zayer LFU 3000

Photo Gallery

Zayer - LFU 3000DE-MIL-ZAY-1993-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

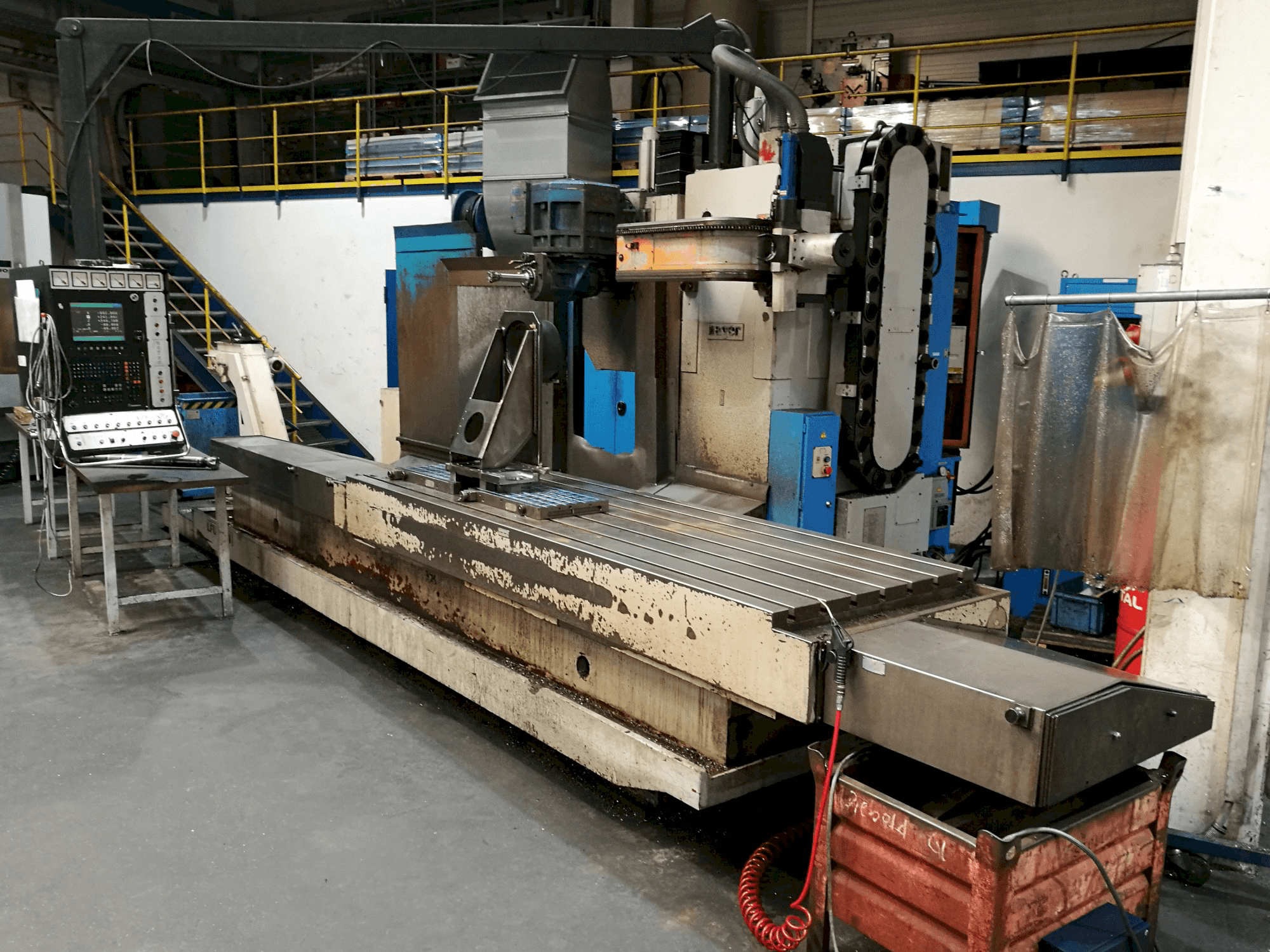

Zayer LFU 3000 is a Milling Machine

Show in original language

This Zayer LFU 3000 is a Milling Machine from 1993, produced in Spain with a production record of 28525 hours. Equipped with a Heidenhain iTNC 415B Control unit, this machine has mainly been working with steel during the past with simultaneous axis operation. This machine was programmed with Autodesk Inventor Hyper Mill. A postprocessor as a file for programming with CAD/CAM is included as well.

Overview

brand: Zayer
year: 1993
MODEL: LFU 3000
production hours: 28525
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Zayer LFU 3000

General Data

Measurements width: 7357 mm
Measurements depth: 3400 mm
Measurements height: 3107 mm
Machine weight: 20000 kg

Control Unit

Model: iTNC 415B
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 35-3000 rpm 1/MIN

Movement

X-AXIS Movement: 2700 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 3000 mm
Outer width: 1000 mm
Number of tslots: 7
Distance between: 140 mm

Tools

Slots in storage: 30
Type of tool holder: BT50

Media

Main electronic connection: 400 V
Power consumption: 58 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Orthogonal head A+B axis (1 adjustment)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
