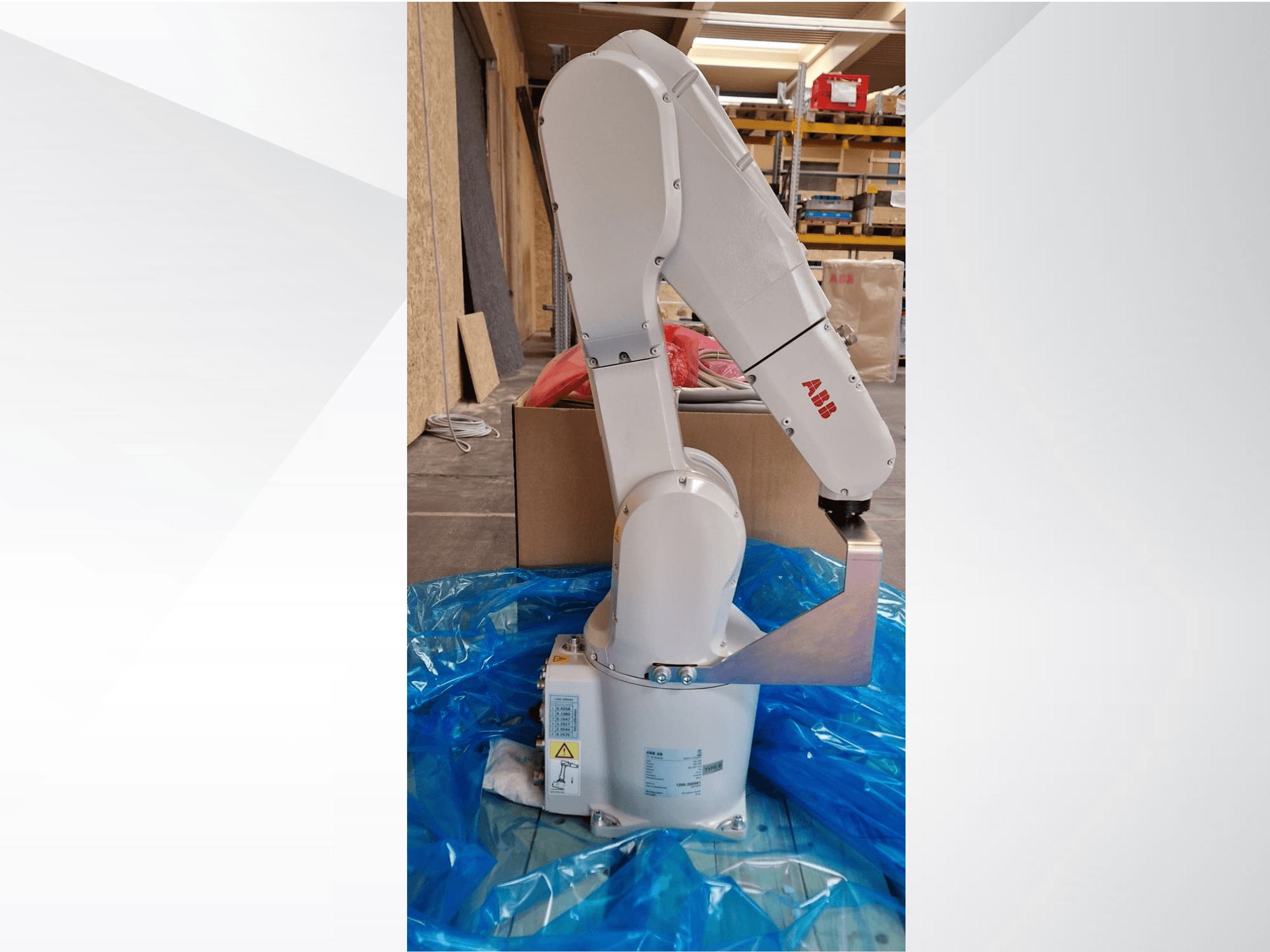

ABB - IRB 1200-7/0.9 OmicoreAT-ROB-ABB-2025-00001

General

• 2 units available

• Robot: brand new, in original packaging, manufacturer warranty until 23.09.2026

• Type: ABB IRB 1200-7/0.9 OmniCore

• Controller: OmniCore C30

• SafeMove: No

• Profinet: Yes

• Ethernet: Standard

Environmental Conditions

• Ambient temperature: +5 °C to +45 °C

• Relative humidity: max. 95%

• Noise level: max. 70 dB(A)

• Emissions: EMC/EMI shielded, ESD certified

Performance

• Reach: 901 mm

• Payload: 7 kg

• Additional arm load: 0.5 kg

• Position repeatability: 0.013 mm

• Cycle time (1 kg pick & place, 25 × 300 × 25 mm): 0.4 s

Speed & Acceleration

• Max. TCP speed: 7.3 m/s

• Max. TCP acceleration: 35 m/s²

• Acceleration time (0–1 m/s): 0.06 s

Electrical Data

• Mains voltage: 200–600 V, 50/60 Hz (controller: 220–230 V AC +10% / -15%)

• Power consumption: 0.38 kW

Dimensions & Weight

• Robot footprint: 210 × 210 mm

• Weight: 54 kg

Manipulator

• Variant: IRB 1200-7/0.9

• Color: ABB Graphite White

• Protection: Base 40

• Cabling: from the side of the base

Controller

• OmniCore C30

• Housing: Base

• 19" rack mounting kit: Yes

• Operating temperature: max. 45 °C

• Network: wired LAN, 5-port Ethernet switch

• Additional power supply: 24 V, 8 A

• FlexPendant: 10 m

• Digital I/O: 16 inputs / 16 outputs

• Operating mode selector: 3 modes, keyless

• Integrated PROFINET device

Cables

• Manipulator cable: 7 m

• Power cable: EU, 3 m

• Ethernet cable: 7 m

• Parallel cable: 7 m

Software (RobotWare)

• World Zones

• Path Recovery

• RobotStudio Connect

• FlexPendant Essential App Package

• FlexPendant Program Package

Applications & Interfaces

• Communication: Ethernet, parallel, air

• Connector Axis 4: CP/CS Bus
