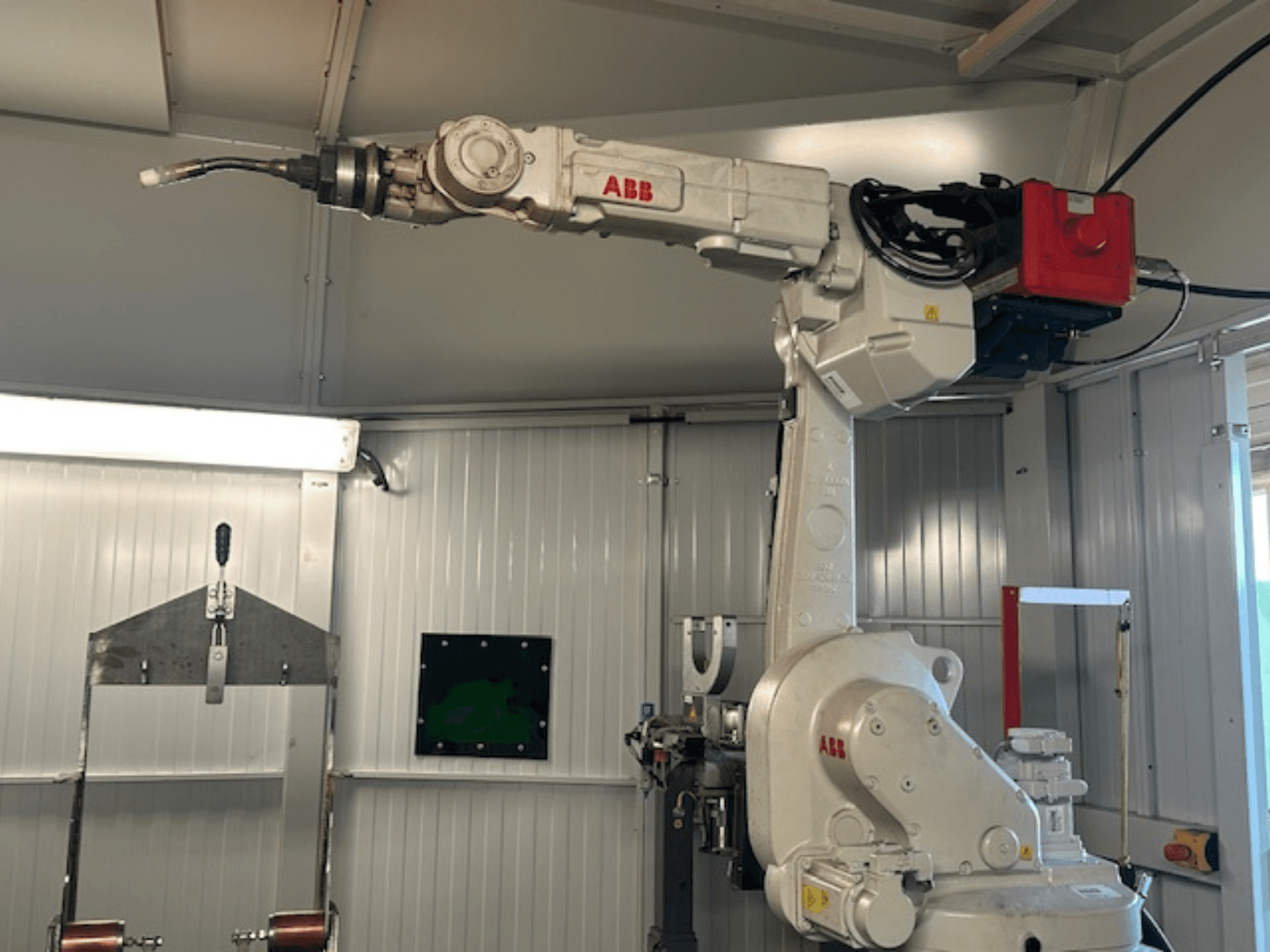

ABB - Schweißroboter Flex ArcDE-ROB-ABB-2019-00001

• Supply voltage: 400 V

• Phases: 3 Ph

• Frequency: 50 Hz

• Power consumption: 22 kVA

• Duty cycle: 100%

• Pre-fuse max: 3x63 A

• Control voltage: 24 V

• Air pressure: 6 bar

Additional equipment

• Robot: IRB 1660ID-6/1.55 (quantity: 1)

  • Robot pedestal: 1,000 mm

  • Robot additional options: PC Interface

• Controller: IRC5 Single

  • Controller voltage: 3x400 V

  • Controller frequency: 50–60 Hz

  • Controller rated current: 7 A

  • Controller short-circuit rating: 10 kA

  • Controller net weight: 150 kg

• Positioner: B-500

  • Payload: 250 kg (according to IRBP product specification)

  • Diameter: 1,000 mm (note: conflicting source text “1.000mg 500kg”)

• PLC: Without PLC (integrated safety via safety PLC Pilz)

• Loading area safety: Vertical light curtain

• Safety PLC: Pilz

• Operator detection: Pre-Reset

• Service door lock: Euchner HASP

• Service window: 1x with Euchner handle

• Power source: Fronius TPS 4001, water cooled for ID

  • Communication: DeviceNet

• Torch package: Fronius MTB 500i, water cooled for ID

• Wire feed accessories: Lid attachment, Esab liner 4.5 m

• Torch service center: ABB TSC

• Wire cutter: Yes

• SmarTac: Wire

• Regula EWR: Mechanical

• Pneumatical board: SMC 500 VP544 GCE Flow

• Hoses to fixtures: 1x air

• Fencing: C, R, B-250

• Fumehood: B250, 8500, B750 Welding

• UV window: 1x

• Lighting: Welding area switch

• Software: Jahreslizenz RobotStudio CAD Konverter STEP

• Accessory: Fronius welding system with welding wire feed attached to the system
