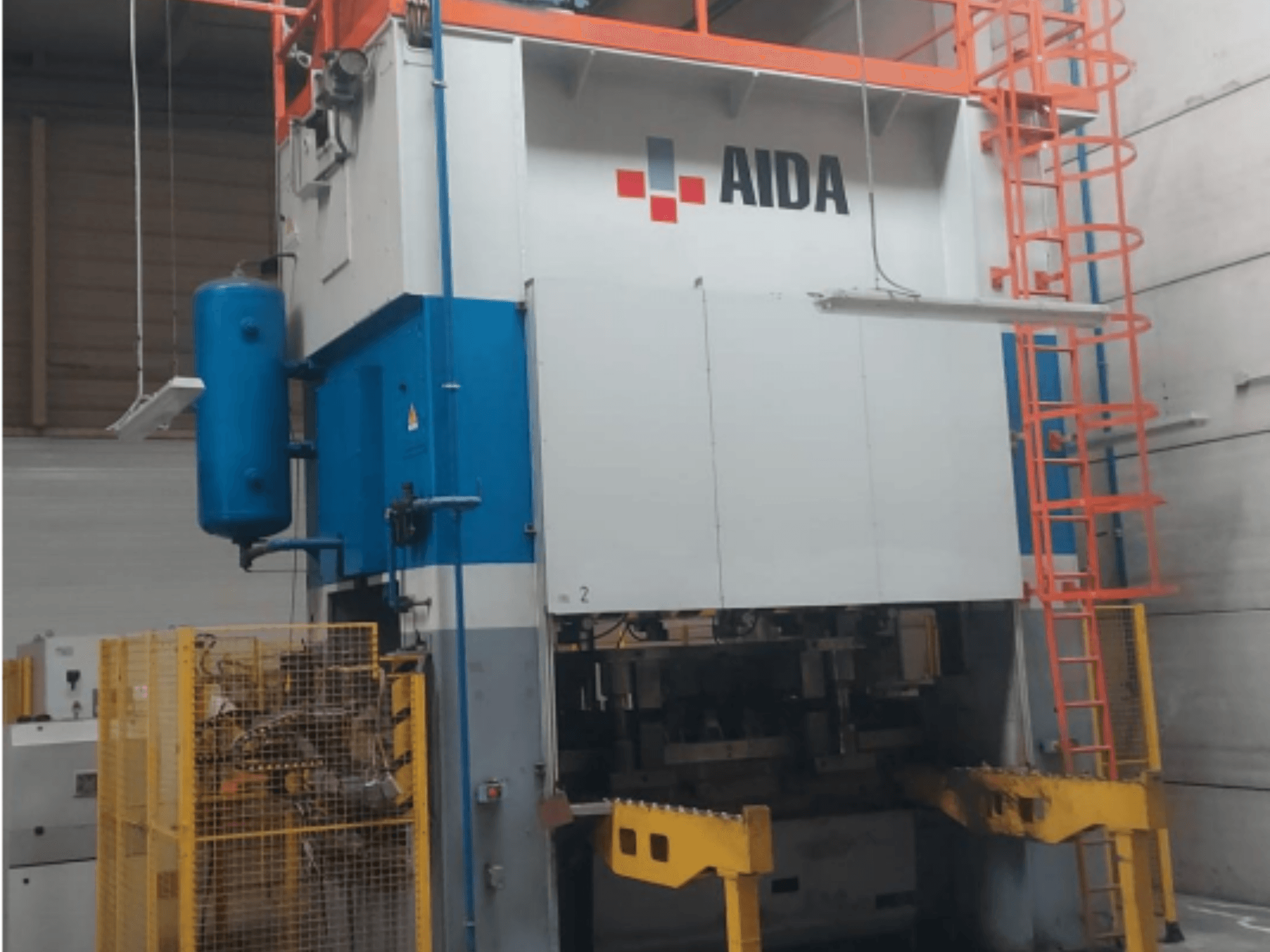

AIDA - 315/2MR/LD/TE 3ES-STA-AID-2013-00001

Main technical data:

• Press capacity: 315 Ton

• Rated press force: 3,150 kN

• Rated capacity point: 12.7 mm above Bottom Dead Center (BDC)

• Normal crankshaft stop position: Top Dead Center (TDC)

• Stroke length: 250 mm

• Slide adjustment: 160 mm

• Shut height: 700 mm

• Slide speed: 15–40 strokes/min

• Maximum flywheel speed: 628.5 rpm

• Maximum clutch engagements: 24 engagements/min

• Stopping time: 0.386 s

• Safety distance: 618 mm

Die and working area:

• Maximum die size: 2,250 × 750 mm

• Maximum die weight on slide: 10,200 kg

Machine structure:

• Frame design: Double upright (straight-side) frame

• Drive system: Double connecting rod (double pitman)

• Slide guidance: Guided slide

• Motion type: Mechanical crank press

• Slide movement: Vertical reciprocating motion

• Main axis movement: Rotary crankshaft drive

• Ram adjustment: Motorized slide adjustment

Cushion system:

• Type: Integrated drawing cushion

• Maximum cushion force: 3,450 daN at 0.6 MPa

Systems and safety:

• Counterbalance cylinders: Yes

• Counterbalance force: 102 kN at 6 bar

• Clutch & brake system: Pneumatic

• Lubrication system: Centralized automatic lubrication

• Safety system: Integrated

• Operator protection: Included

• Automation ready: Yes

Performance and safety notes:

• High-rigidity double-upright frame construction

• Double-pitman drive for improved slide parallelism and load distribution

• Pneumatic clutch-brake for reliable operation and fast stopping

• Designed for integration with automatic feeding and transfer systems
