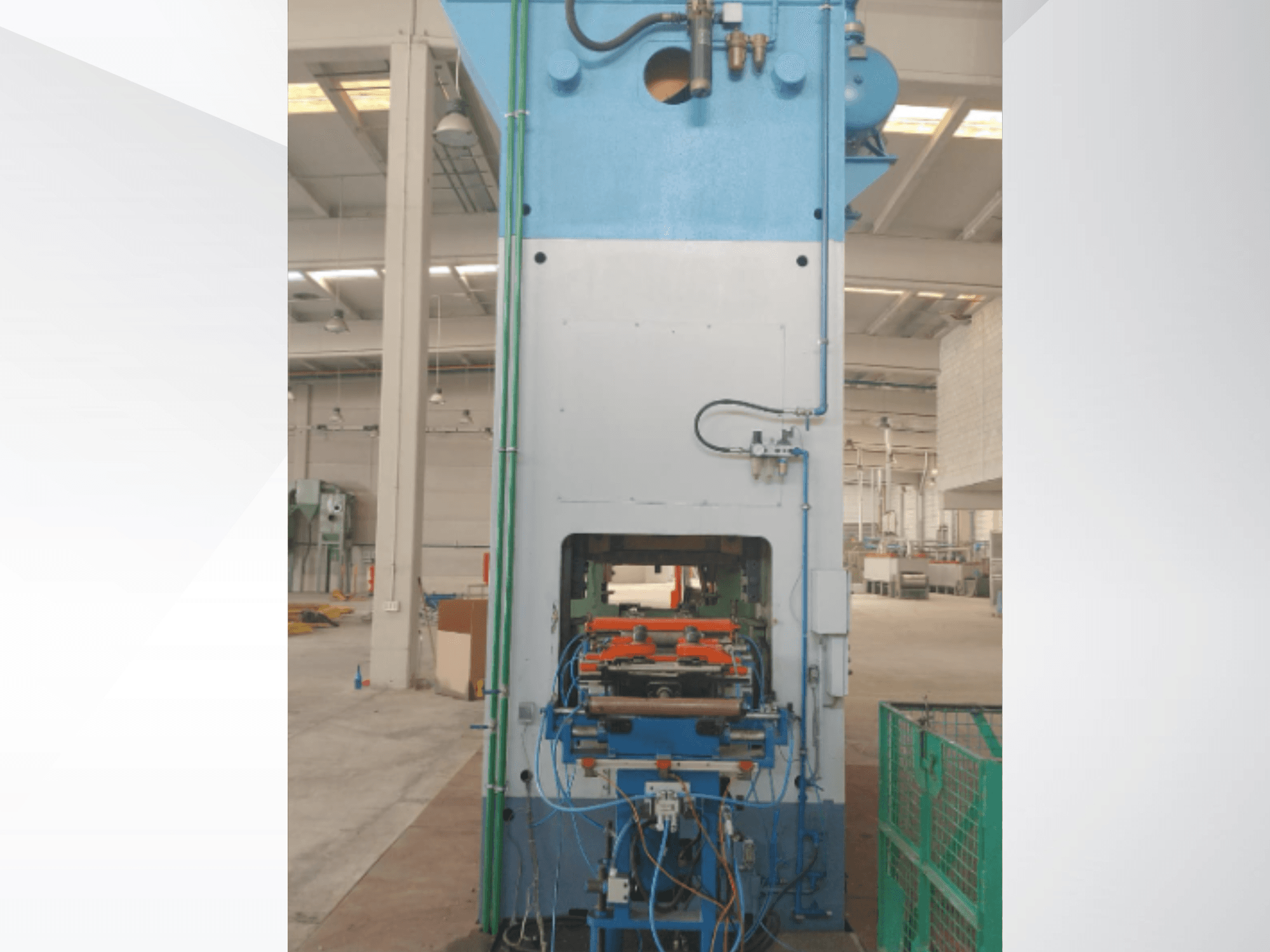

Mechanical stamping press manufactured in 2018. This AIDA 315/2MR/LD/TE 3 features a press capacity of 315 tons and a stroke length of 250 mm. It has a maximum die size of 2,250 × 750 mm and can accommodate a maximum die weight of 10,200 kg. If you are looking to get high-quality stamping capabilities, consider the AIDA 315/2MR/LD/TE 3 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: AIDA
- year: 2018
- MODEL: 315/2MR/LD/TE 3
- application type: Stamping
- Location: Spain
- machine type: Mechanical Stamping Press
Technical Information - AIDA 315/2MR/LD/TE 3
Dimensions
- Machine Weight: 58000 kg
Technical Specification
- Max. Stroke: 250 mm
- Stamping Force: 3150 Kn
Additional Information
Press capacity: 315 ton
Rated capacity: 3,150 kN
Rated capacity point: 12.7 mm above BDC
Stroke length: 250 mm
Slide adjustment: 160 mm
Shut height: 700 mm
Maximum die size: 2,250 × 750 mm
Maximum die weight: 10,200 kg
Flywheel speed: 628.5 rpm
Operating speed: 15–40 spm
Maximum clutch engagements: 24 per min
Stopping time: 0.386 s
Safety distance: 618 mm
Cushion force: 3,450 daN @ 0.6 MPa
Counterbalance force: 102 kN @ 6 bar
Frame type: Double upright, double-crank
Clutch/brake system: Pneumatic
Lubrication system: Centralized automatic
Slide guiding: Precision guided
Drawing cushion: Integrated
Counterbalance cylinders: Yes
Safety system: Integrated
Operator protection: Yes
Automation ready: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
