➤ Used Colombo Agostino T231A315 For Sale | gindumac.com

Show in original language

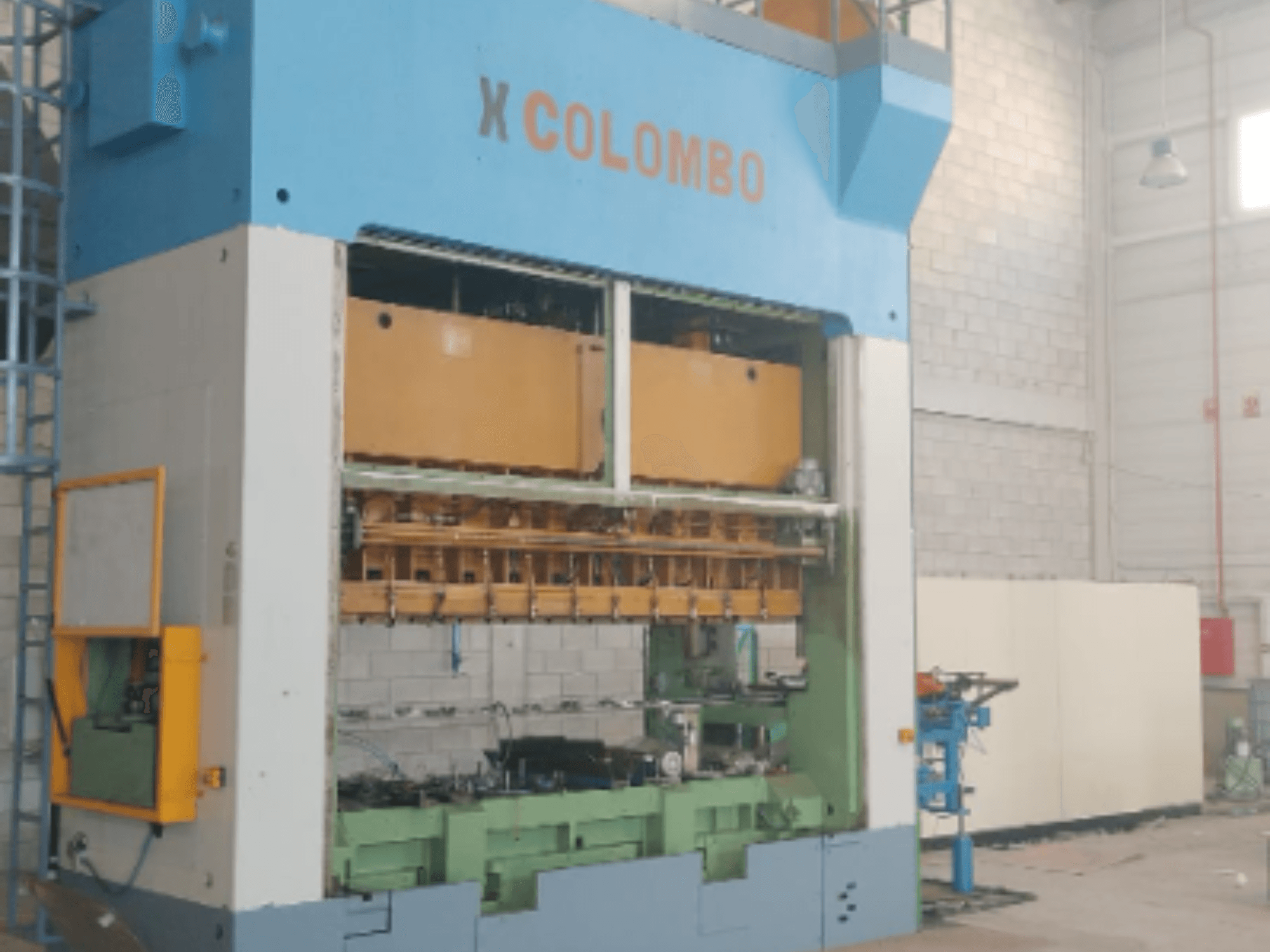

Mechanical stamping press manufactured in 2012. This Colombo Agostino T231A315 features a nominal press capacity of 315 tons and a slide stroke of 250 mm. It includes a motorized slide adjustment of 315 mm and a bed dimension of 1120 mm x 960 mm. If you are looking to get high-quality stamping capabilities, consider the Colombo Agostino T231A315 machine we have for sale. Contact us for further details.

Overview

brand: Colombo
year: 2012
MODEL: Agostino T231A315
application type: Stamping
Location: Spain
machine type: Mechanical Stamping Press

Technical Information - Colombo Agostino T231A315

Technical Specification

Max. Stroke: 250 mm
Stamping Force: 3150 Kn

Additional Information

Main motor power: 32 kW
Stroke speed (min - max): 15 - 30 strokes/min
Slide stroke (working travel): 250 mm
Slide (ram) adjustment: 315 mm (motorized)
Shut height (max. closed die height): 650 mm
Shut height (min. closed die height): 335 mm (max. shut height minus slide adjustment)
Bed (bolster plate) dimensions: 1120 mm x 960 mm
Slide (ram) face dimensions: 1120 mm x 960 mm
Bottom cushion stroke (max): 160 mm (integrated)
Slide guidance: Precision guided ram system
Bed configuration: Fully machined bolster plate
Lubrication: Centralized automatic lubrication system

Additional equipment

Feeding system: Coil/feeding line included
Optional equipment: Not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
