HIM HWAIL PRESS - HCDS-500 HU-STA-HIM-2016-00002

171,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

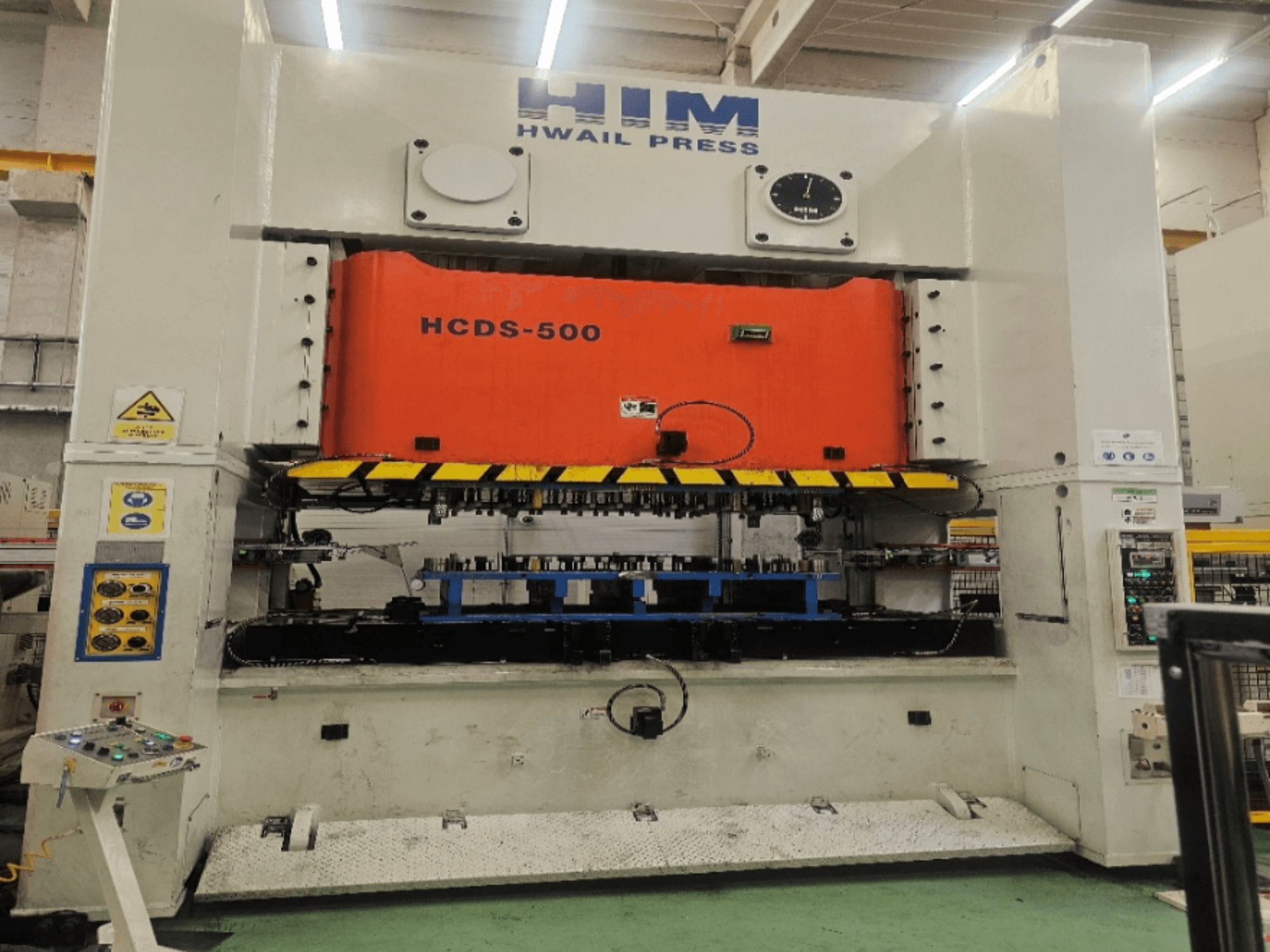

Mechanical stamping press manufactured in 2016. This HIM HWAIL PRESS HCDS-500 features a press capacity of 500 tons and a stroke length of 280 mm. It includes a slide area of 2800 x 1200 mm and a bolster area of 3000 x 1300 mm. If you are looking to get high-quality stamping capabilities, consider the HIM HWAIL PRESS HCDS-500 machine we have for sale. Contact us for further details.

Overview

  • brand: HIM HWAIL PRESS
  • year: 2016
  • MODEL: HCDS-500
  • application type: Stamping
  • Location: Hungary
  • machine type: Mechanical Stamping Press

Technical Information - HIM HWAIL PRESS HCDS-500

Dimensions

  • Machine Height: 5000 mm
  • Machine Length: 4000 mm
  • Machine Width: 3050 mm

Technical Specification

  • Max. Stroke: 280 mm
  • Stamping Force: 5000 Kn

Additional Information

  • Press capacity: 500 ton

  • Rated tonnage point above BDC: 7 mm

  • Strokes per minute: 30 SPM

  • Stroke length: 280 mm

  • Die height: 550 mm

  • Slide adjustment: 120 mm

  • Slide area (L x W): 2800 x 1200 mm

  • Bolster area (L x W): 3000 x 1300 mm

  • Bolster thickness: 235 mm

  • Working height: 1300 mm

  • Side opening (W x H): 1200 x 700 mm

  • Main motor: AC 45 kW x 4 / VS 55 kW x 4

  • Slide adjustment motor: 3.7 kW x 6

  • Air pressure required: 5 kg/cm²

  • Die cushion capacity: 16 x 2 ton

  • Die cushion stroke: 130 mm

  • Pad area (L x W): 1400 x 650 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
