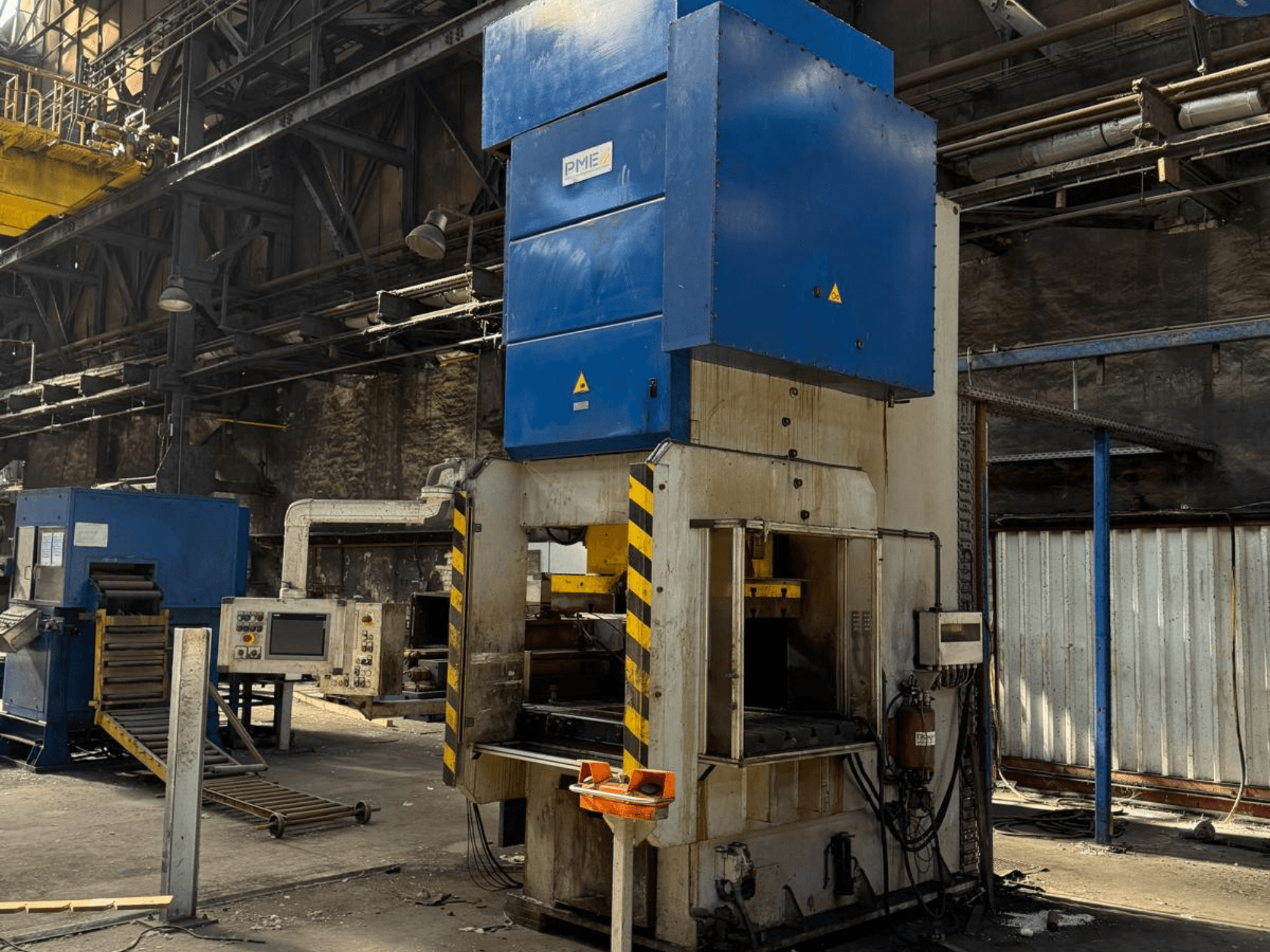

Mechanical stamping press manufactured in 2018. This PME PE 400-1700 C features a nominal pressing force of 4000 kN and a machine weight of 33,000 kg. It has a maximum ram adjustment of 180 mm and can accommodate tool dimensions of up to 1100 x 800 mm. If you are looking to get high-quality stamping capabilities, consider the PME PE 400-1700 C machine we have for sale. Contact us for further details.
Overview
- brand: PME
- year: 2018
- MODEL: PE 400-1700 C
- application type: Stamping
- Location: Germany
- machine type: Mechanical Stamping Press
Technical Information - PME PE 400-1700 C
Dimensions
- Machine Height: 2630 mm
- Machine Length: 2750 mm
- Machine Weight: 33000 kg
- Table Width: 4325 mm
Technical Specification
- Max. Stroke: 160 mm
- Stamping Force: 4000 Kn
Additional Information
- Total Power: 50 kW
- Voltage: 400 V
- Frequency: 50 Hz
- Basic Machine Position: Top Dead Center (O.T.)
- Max. Engagements in Single Stroke: 15 /min
- Max. Permissible Speed of Flywheel: 290 1/min
- Max. Ram Adjustment: 180 mm
- Stroke Height Min./Max.: 30 mm / 160 mm
- Stroke Rate Min./Max.: 10 /min / 60 /min
- Max. Shut Height : 660 mm
- Max. Tool Dimensions (L x W): 1100 x 800 mm
- Max. Tool Weight: 800 kg
- Upper Tool Weight: 2400 kg
- Lower Tool Weight: 2400 kg
- Pneumatic System Pressure Min./Max.: 3.5 / 10 bar
- Pneumatic Clutch-Brake Combination Pressure Min./Max.: 3.5 / 6 bar
- Lubrication System Power: 1.0 kW
- Lubrication Operating Pressure: 50 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
