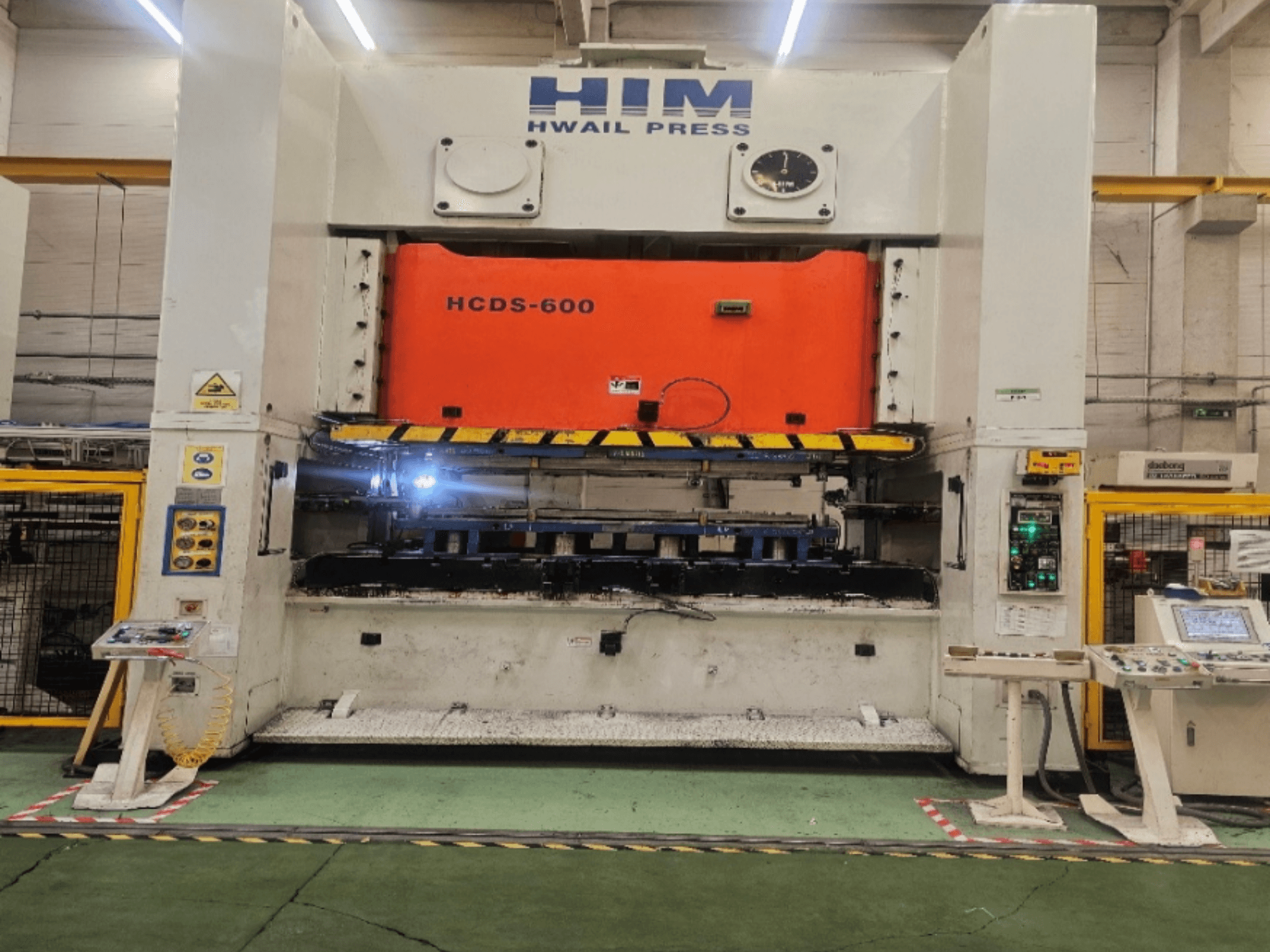

HIM HWAIL PRESS - HCDS-600 HU-STA-HIM-2016-00001

• Press capacity: 600 ton

• Rated tonnage point above B.D.C.: 7 mm

• Number of strokes: 30 SPM

• Stroke length: 350 mm

• Die height: 600 mm

• Slide adjustment: 120 mm

• Slide area (L x W): 2900 x 1300 mm

• Bolster area (L x W): 3000 x 1400 mm

• Bolster thickness: 240 mm

• Working height: 1300 mm

• Side opening: 1450 x 750 mm

• Main motor: AC 55 kW x 4 / VS 75 kW x 4

• Slide adjustment motor: 5.5 kW x 6

• Air pressure: 5 kg/cm²

• Die cushion capacity: 16 x 2 ton

• Die cushion stroke: 130 mm

• Pad area (L x W): 1400 x 650 mm

• Quantity available: 5 units

• Pricing note: indicated price is per individual machine

Additional equipment

• Shuttle transfer robot/system

  • Included when purchasing the complete package of machines

  • Available separately at EUR 120,000
