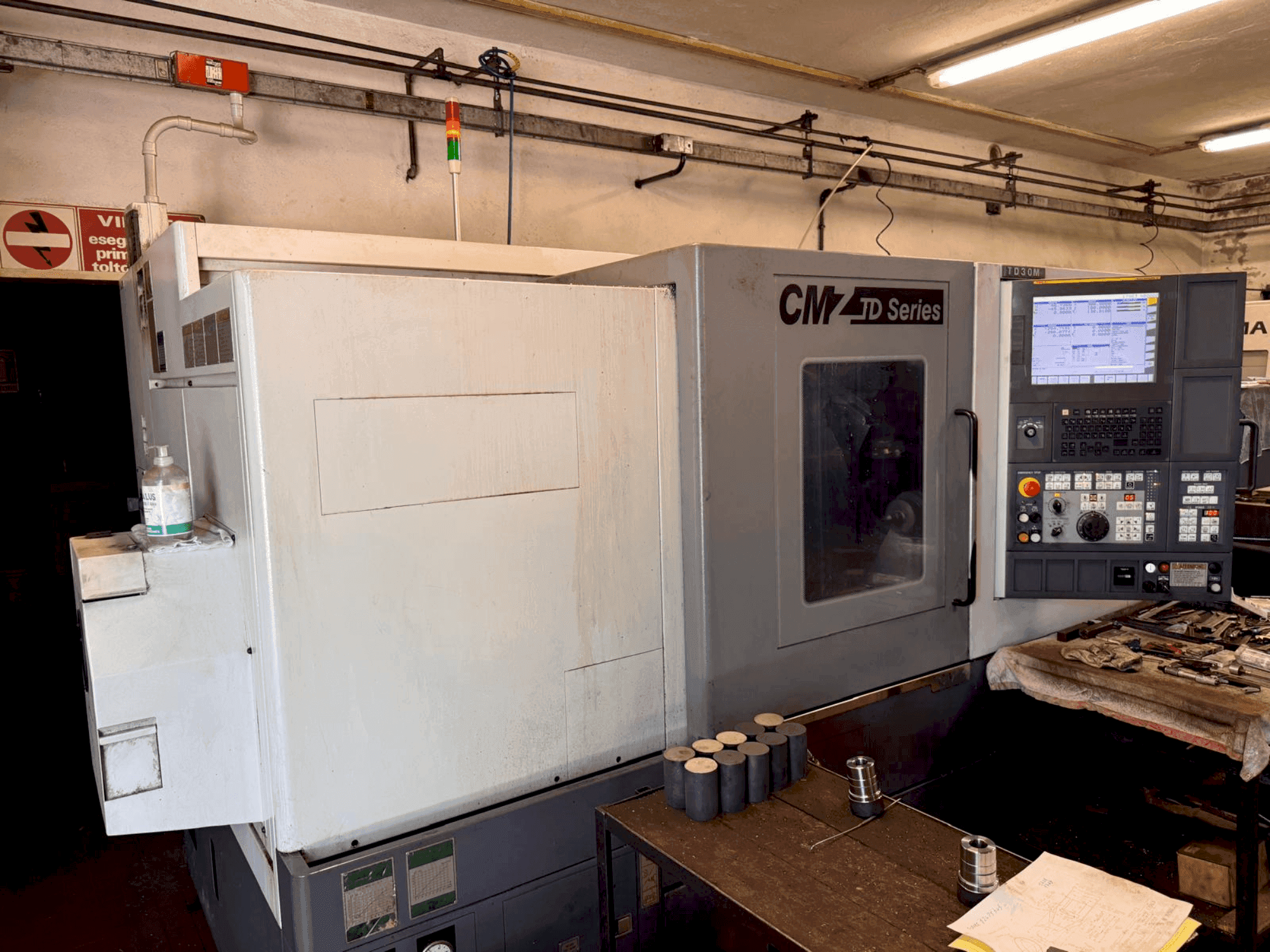

Front view of CMZ TD30M  machine

CMZ - TD30MIT-TUR-CMZ-2017-00001

79,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This 3-axis CMZ TD30M lathe was manufactured in 2017. It features a Fanuc 32I-T control, a maximum turning diameter of 512mm, and a bar passage of 77mm. The spindle operates at up to 3500rpm with a power of 27KW. It includes a 12-position turret with 12 live tools, capable of 4000rpm. Dimensions are 4450 x 2200 x 2100, and it weighs 7100kg. A great opportunity to buy this CMZ TD30M lathe. Contact us for further details regarding this lathe.


  • brand: CMZ
  • year: 2017
  • MODEL: TD30M
  • production hours: 3815
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: fanuc

Technical Information - CMZ TD30M

General Data

  • Measurements width: 2200 MM
  • Measurements depth: 4450 MM
  • Measurements height: 2100 MM
  • Machine weight: 7100 KG

Control Unit

  • Brand: fanuc
  • Model: 32I-T

Main drive

  • Spindle speed range: 3500 1/MIN
  • Spindle motor power: 27 kw


  • X-AXIS Movement: 315 mm
  • Z-AXIS Movement: 800 mm


  • Workpiece drm over bed: 512

    Additional Equipment

    • - 12 position turret with 12 live tools
    • - 1 radial tool and 1 axial rotary tool

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle nose: asa8
        • - Max bar passage: 77mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
