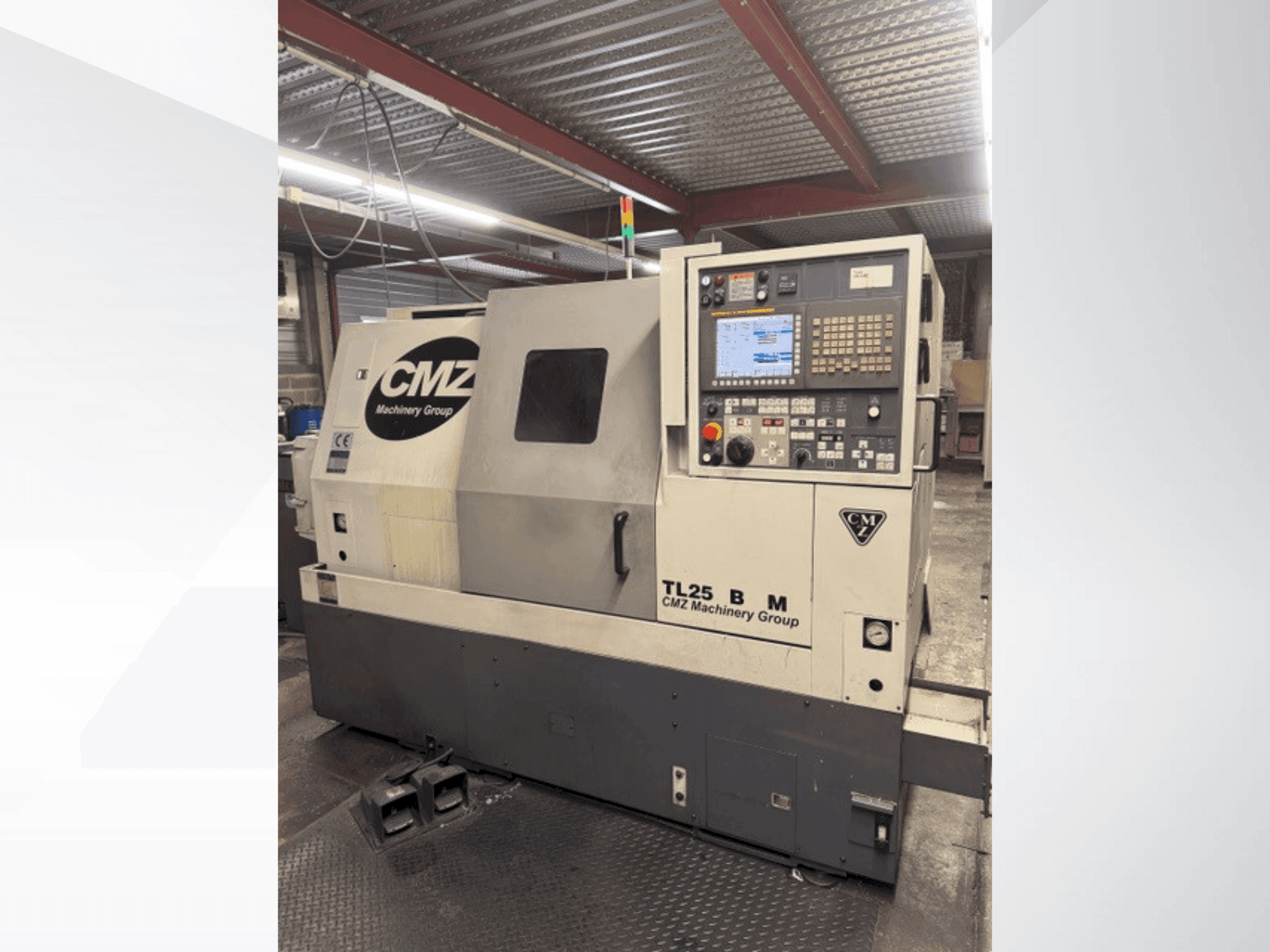

This 3-axis CMZ TL25 BM turn-mill centre was manufactured in 2008. It offers robust turn-milling capabilities, ideal for precision machining. Consider the opportunity to buy this CMZ TL25 BM turn-mill centre. Contact us for more information.
Overview
- brand: CMZ
- year: 2008
- MODEL: TL25 BM
- production hours: 6700
- application type: Turning
- Location: France
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - CMZ TL25 BM
Control Unit
- Control Brand: FANUC
- Control Model: 32i
Movement
- X-axis Travel: 240 mm
- Z-axis Travel: 640 mm
Technical Specification
- Spindle Power: 18 kW
- Spindle Speed: 3500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Hydraulic chuck: Ø 250 mm smw autoblok
- Collet chuck and collet sets
- Machine has produced only plastic
- Documentation included
Technical Machine Benefits
- Diameter admitted on bench: 685 mm
- Diameter on carriage: 510 mm
- Max. Machinable diameter: 400 mm
- Distance between centers: 675 mm
- Bar passage: Ø 77 mm
- Turret: 12 positions
- 12 motorized stations
- Motorized tool rotation speed: 4000 rpm
- Power of motorized tools: 3. 8/5 kw
- Number of motorized tool holders: 3
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
