➤ Used DOOSAN PUMA 2600Y For sale | gindumac.com

Show in original language

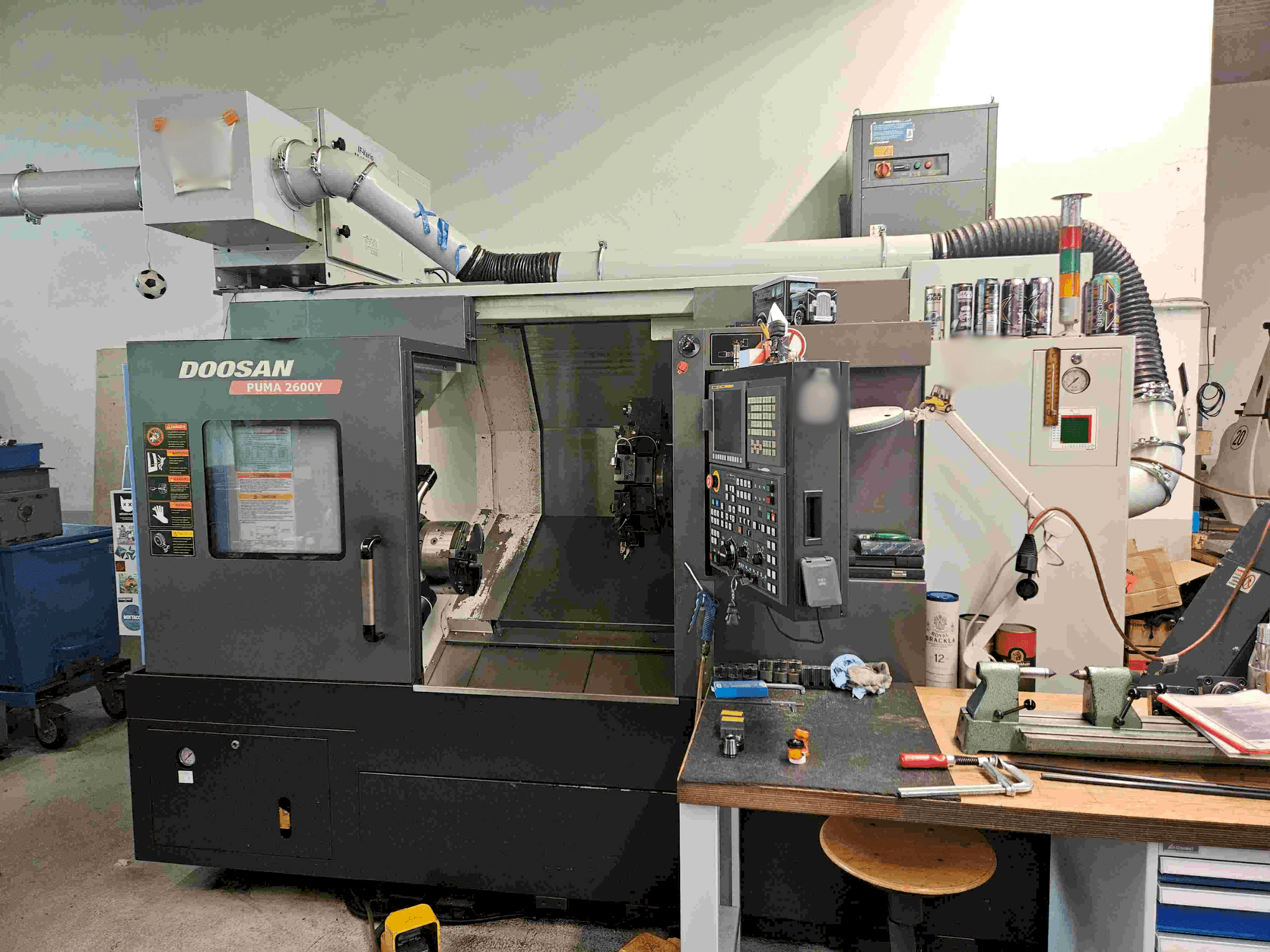

This 3-axis DOOSAN PUMA 2600Y was manufactured in 2012. It features a max. swing diameter of 680 mm, max. turning diameter of 376 mm, and max. turning length of 760 mm. Equipped with a spindle speed of 5000 rpm and a rapid traverse rate of 30 m/min in X and Z, and 10 m/min in Y. It also includes a combination holder and both axial and angle drilling/milling units. For more information about this horizontal machining center, please reach out to us.

Overview

brand: DOOSAN
year: 2012
MODEL: PUMA 2600Y
production hours: 5250
application type: Milling
Location: Germany
machine type: Machining centers (horizontal)
availability: Immediately

Technical Information - DOOSAN PUMA 2600Y

General Data

Measurements width: 1868 MM
Measurements depth: 3600 MM
Measurements height: 2163 MM
Machine weight: 6000 KG

Main drive

Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 260 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 830 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 105 mm
Z-AXIS Rapid traverse: 10 m/min

Tools

Slots in storage: 12

Additional Equipment

- Combination holder D50x100
- axial drilling and milling unit
- angle drilling and milling unit
- straight drilling/milling device: torque max 50 Nm, speed max 6000 1/min, tool holder ER-32 QF

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing diameter: 680 mm
- - Swing diameter above the carriage: 630 mm
- - Recommended turning diameter: 255 mm
- - Maximum turning diameter: 376 mm
- - Maximum turning length: 760 mm
- - Rod clearance: 76 mm
- - Spindle diameter: 86mm
- - Tool size external tools: 25mm
- - Diameter of boring bar holder: 50mm
- - Tailstock: penole diameter 100mm, penole inner ball mt5
Qualitative Machine Benefits:
- - Control on: 12061h
- - Processing time: 4485h

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
