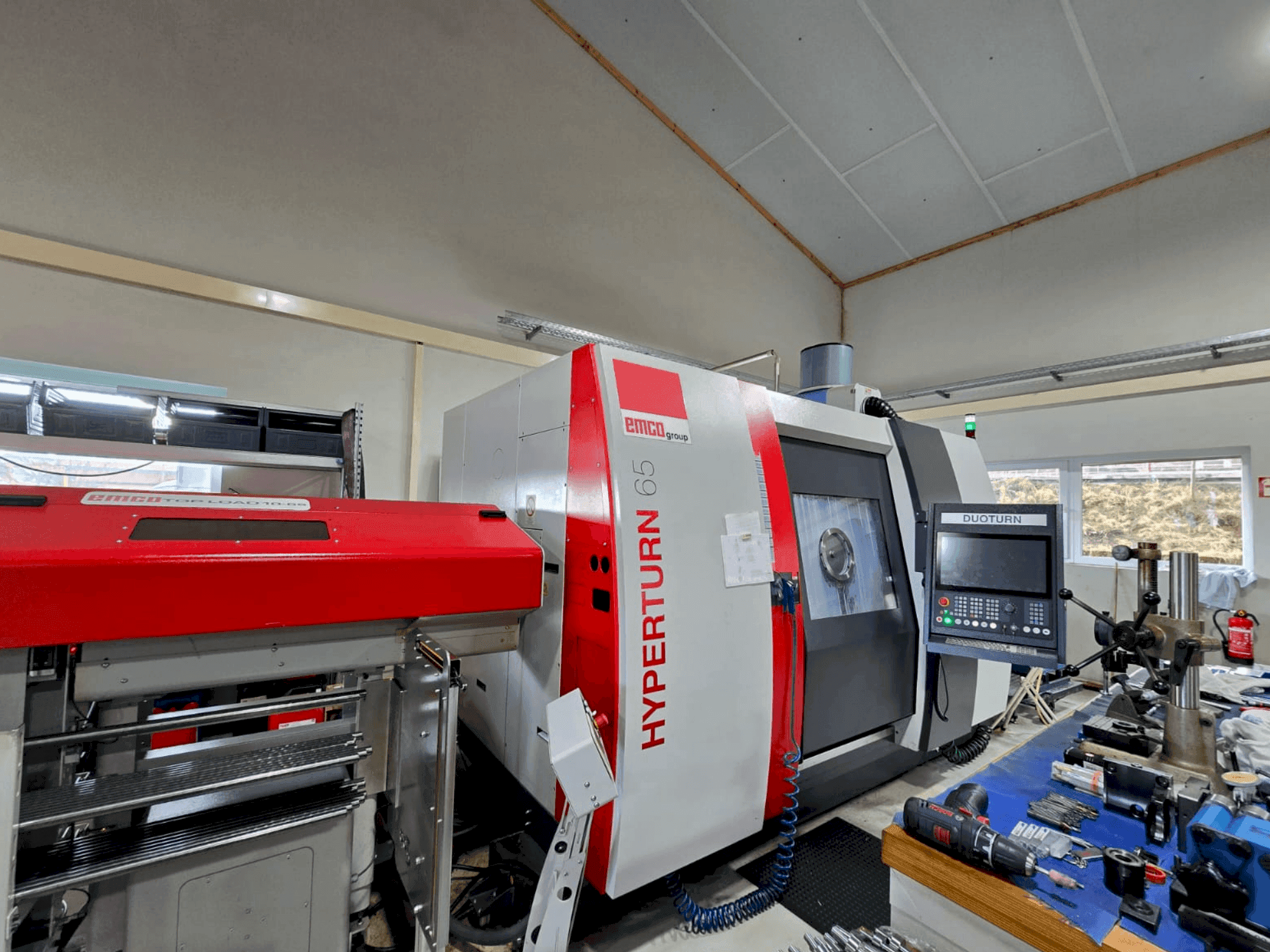

Front view of EMCO HYPERTURN 65-1300 DUOTURN  machine

EMCO HYPERTURN 65-1300 DUOTURN

EMCO - HYPERTURN 65-1300 DUOTURN

2018

260,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This EMCO HYPERTURN 65-1300 DUOTURN CNC Turn-Mill Center was built in the year 2018 in Austria. It is equipped with a SIEMENS Sinumerik 840D SL Control and 2 turrets including milling drive and 2 Y-axes. This highly productive CNC turning/milling center is perfect for the complete machining of turned and milled parts with 1300 m spindle distance. It has integrated spindle motors (ISM) on the main and counter spindles with a spindle speed range from 0 - 5000 min-1. This complete center features 2x 12-fold tool turret radial with directional logic for up to 2x 12 driven tool stations (swivel speed adjustable with feed switch). It comes with several extras from MT65/HT65 BigBore77 to BMT turret (top right) with direct drive for HT65DT/HT65TT/MT65 (the VDI30 standard turret is replaced by a BMT turret with BMT55P precision interface). See original PDF (German) with all positions attached. Check out photo and video gallery for more details.

Overview

  • brand: EMCO
  • year: 2018
  • MODEL: HYPERTURN 65-1300 DUOTURN
  • production hours: 15000
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-TUR-EMC-2018-00002

Technical Information

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK 840D SL

Main drive

  • Number of spindles: 2
  • Spindle speed range: 0 - 5000 min-1 1/MIN
  • Spindle motor power: 29 kW
  • Spindle bore: 76 mm
  • Tool taper: BMT 55

Turret

  • Number of tool slots: 2 x 12
  • Rotating tools: Yes

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - Top Automazioni bar loader (Model: ETL10-75, YOM 2018) - weight 2500 kg
    • - 600l external cooling water tank with belt filter from Bürener
    • - Parts ejector and flushing through the counter spindle
    • - Chip conveyor with an ejection height of 1200mm (programmable)
    • - Coolant device integrated in the chip conveyor
    • - 2 pcs. High pressure pumps with 14 bar // 2 pcs. flushing pumps with 3.7 bar
    • - Electronic handwheel 840D
    • - COMPRESSED AIR SYSTEM FOR GLASS SCALES
    • - EMCO TOP LOAD 15-75/3200 MULTI-LEVEL
    • - PART CATCHER WITH FINISHED PART DUST BELT // BELT FILTER SYSTEM

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Duoturn with 2 turrets incl. Milling drive and 2 y-axes
        • - Drive power: main spindle - 29 kw
        • - Counter spindle - 29 kw
        • - Bmt 55 turret two pieces with one y-axis each
        • - Main spindle big bore with 76mm
        • - Water-cooled turret drive with 12,000 revolutions
        • - 2x 12-fold tool turret vdi 30 radial with directional logic for up to 2x 12 driven tool stations
        • - Swivel speed adjustable with feed switch
      • Qualitative Machine Benefits:
        • - Highly productive cnc turning/milling center for the complete machining of turned and milled parts with 1300 m spindle distance
        • - Integrated spindle motors (ism) on the main and counter spindles
        • - Main and counter spindles (liquid-cooled) cooled)
        • - Preloaded roller guides
        • - Tools are not included in the price
        • - Optional tools available for sale

      Extra information

      • - 15,000 spindle hours // 20,000 switch-on hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
